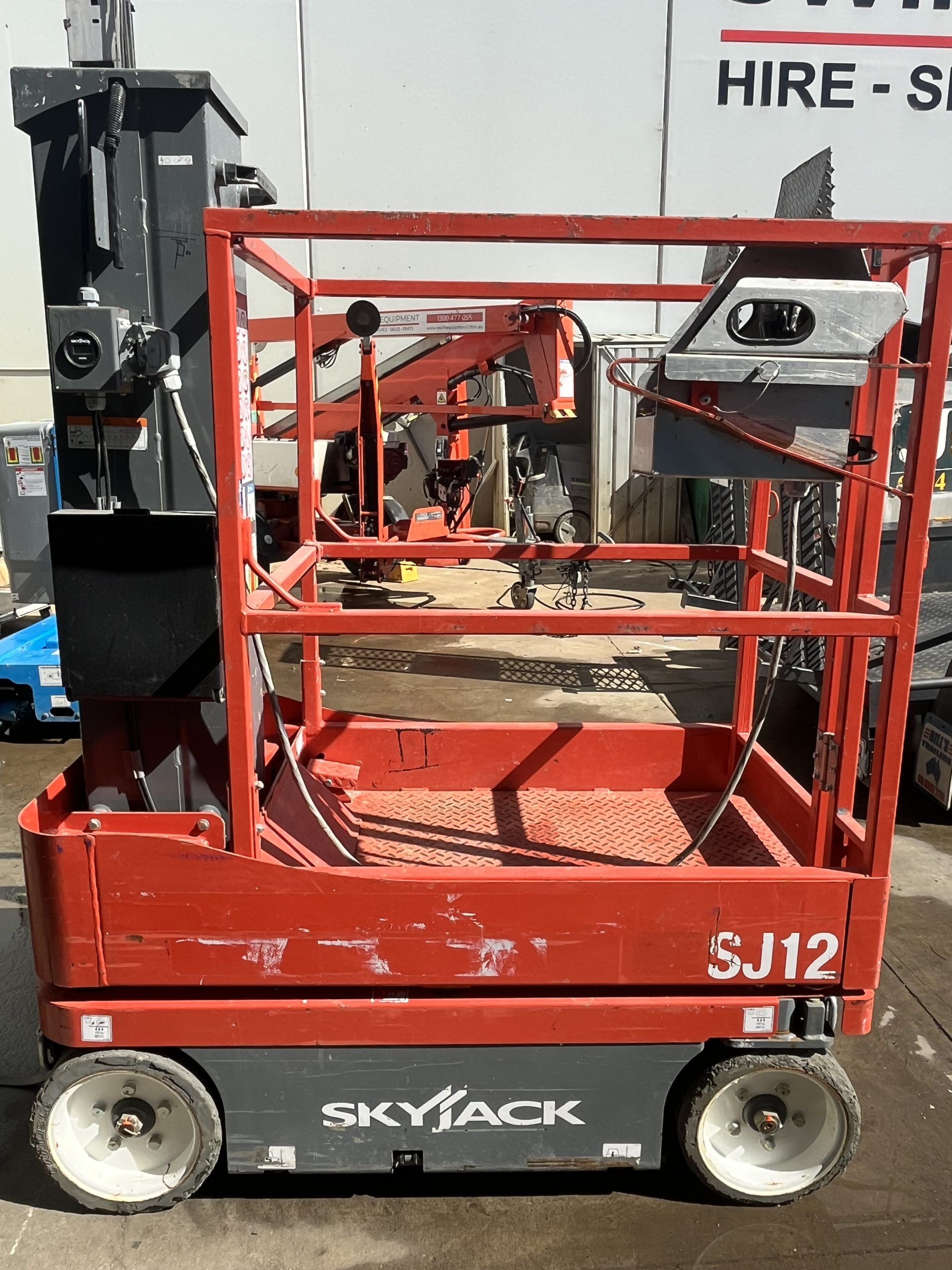

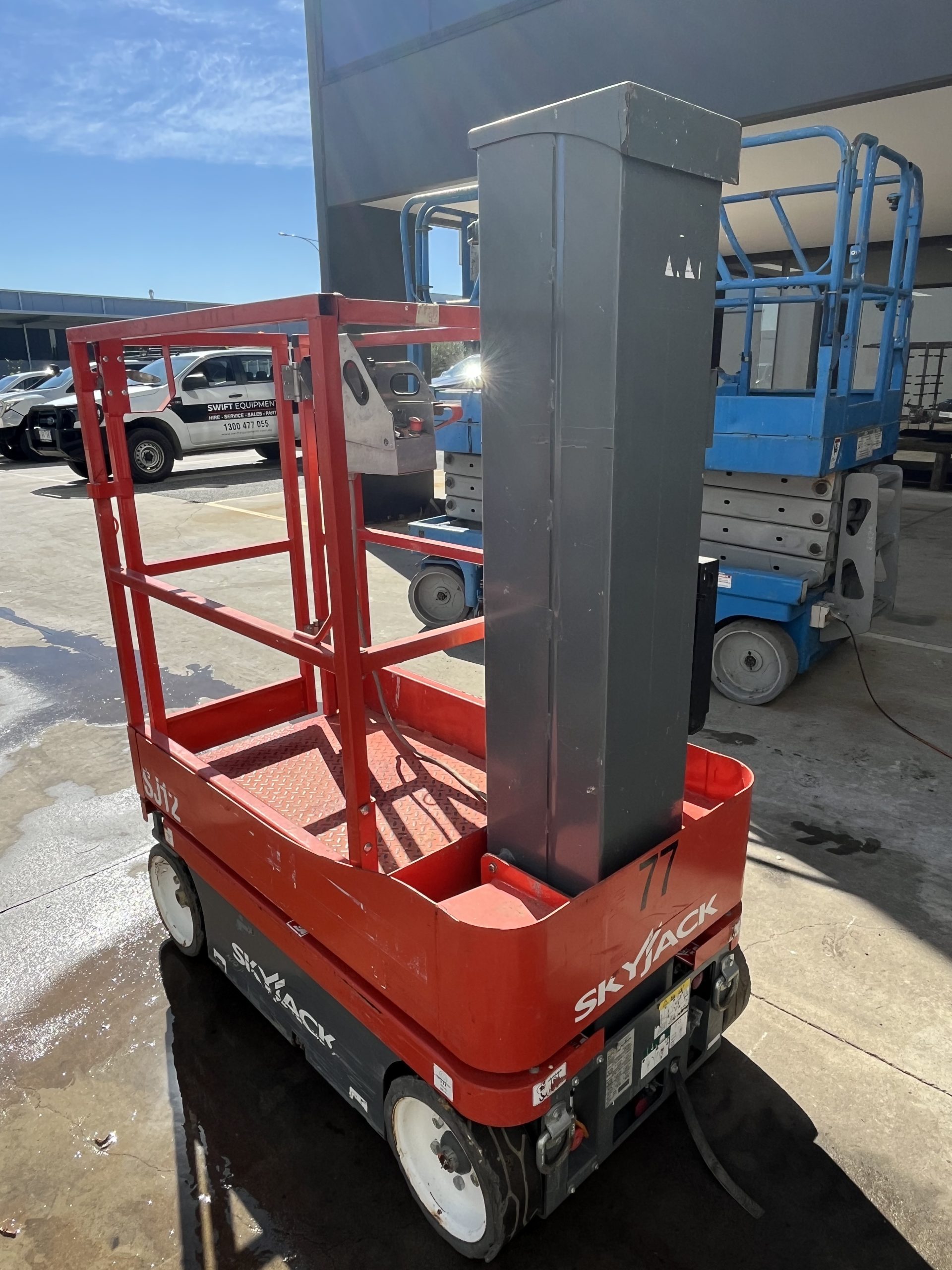

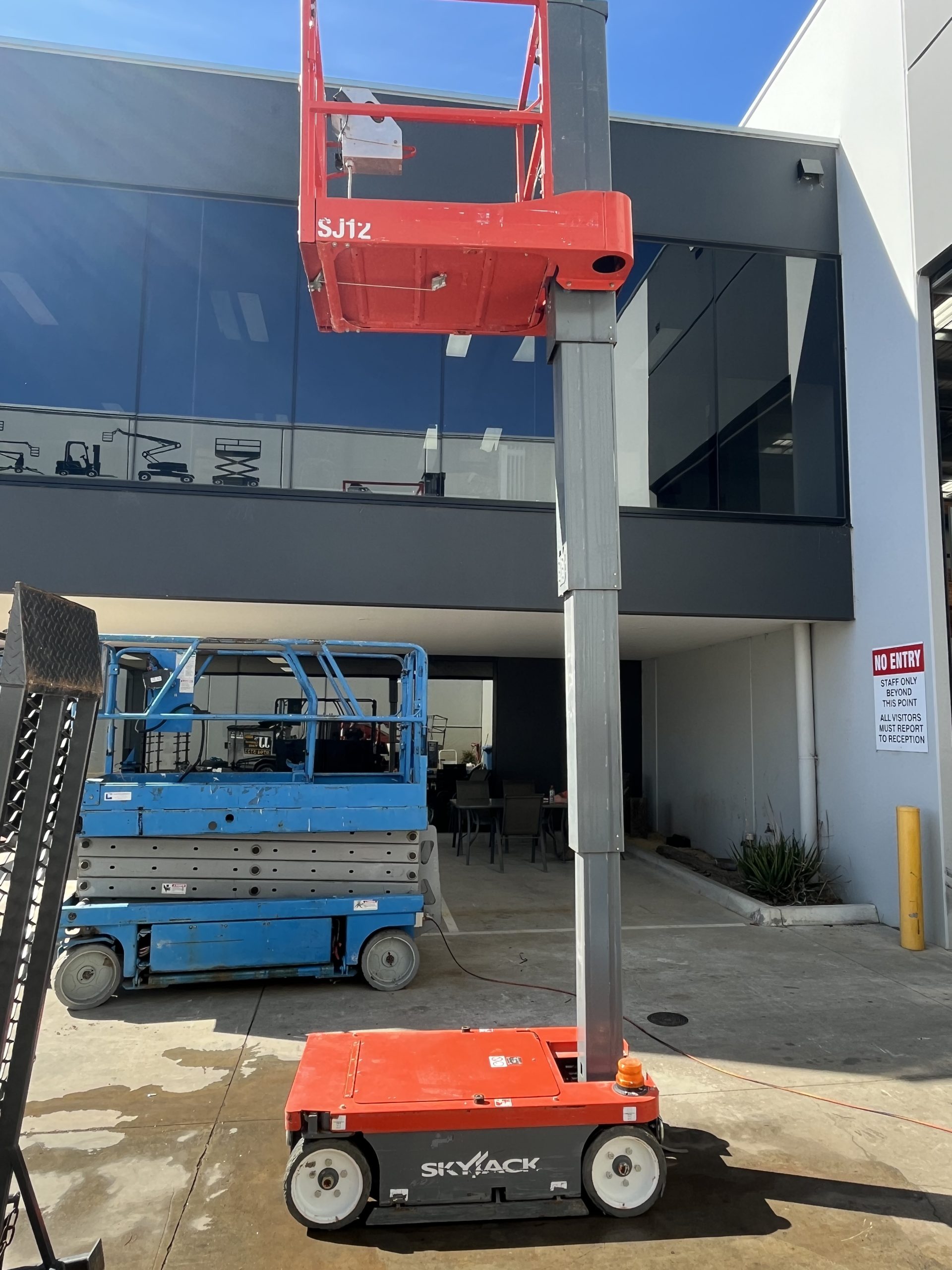

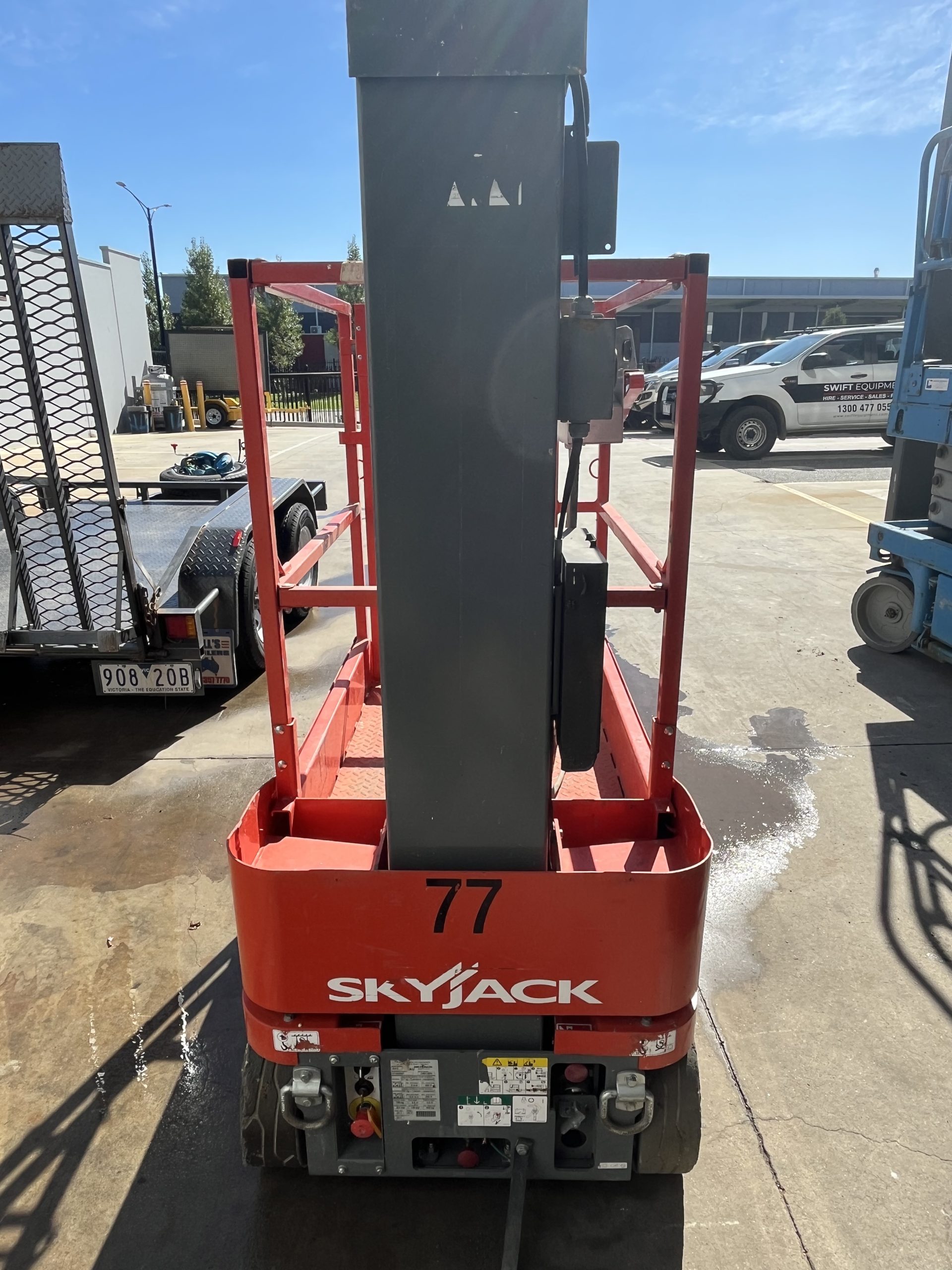

Used 2017 Skyjack SJ12 12ft Manlift/Stock Picker
$3,850.00 Inc. GST
$3,500.00 Ex. GST
Unit is in used-fair condition, in good working order mechanically. Unit price is “as is” with additional fees for new batteries and/or re-certification. Unit is perfect for warehousing, stock picking, spare parts departments.
Make: SkyJack
Model: SJ12 12ft ManLift
Year: 2017
Hours: 200-300
$3,500.00 ONO
Unit is in used-fair condition, in good working order mechanically. Unit price is “as is” with additional fees for new batteries and/or re-certification. Unit is perfect for warehousing, stock picking, spare parts departments.
Unit is currently still in service until 2027 and current batteries perform okay.
More photos and function videos can be supplied for remote customers. Unit is viewable in Pakenham VIC.
National freight can be arranged, including to TAS.
“We are a service, sales and hire company supplying EWP Equipment to a National Marketplace with 50+ years combined experience”
■ DC Motor controller
■ Drivable at full height
■ Variable speed, front two wheel hydraulic drive
■ Zero inside turning radius
■ Dual holding brakes
■ Proportional controls
■ 20” (0.51 m) Traversing platform
■ 24V DC Power source
■ Low voltage battery protection
■ 30% Gradeability
■ Solid rubber, non-marking tires
■ Pothole protection system
■ 110V AC Outlet at platform with GFI
■ 28 mph Wind rating (12.5 m/s)
■ Tilt alarm with drive & lift cut-out
■ All motion audible alarm
■ Lanyard attachment points
■ Operator horn
■ Lift rings/tie downs
■ Chain entrance
■ Relay based control system
■ SKYCODEDTM color coded and numbered wiring system
Work Height 18’ (5.48 m) 21’7” (6.58 m)
Raised Platform Height 12’ (3.65 m) 15’7” (4.75 m)
Lowered Platform Height 18” (0.45 m) 18” (0.45 m)
Overall Width 30.5” (0.77 m) 30.5” (0.77 m)
Overall Length 54” (1.37 m) 54” (1.37 m)
Stowed Height 70.3” (1.79 m) 70.3” (1.79 m)
Platform Width (Inside Dimension) 27” (0.69 m) 27” (0.69 m)
Platform Length (Inside Dimension) 36.8” (0.93 m) 36.8” (0.93 m)
Ground Clearance (Stowed) 2.1” (5.33 cm) 2.1” (5.33 cm)
Ground Clearance (Raised) 0.63” (1.60 cm) 0.63” (1.60 cm)
Weight 1,720 lbs (782 kg) 2,130 lbs (966 kg)
Local Floor Load (with rated load) 101 psi (696 kPa) 120 psi (827 kPa)
Local Floor Load (no load) 80 psi (552 kPa) 92 psi (634 kPa)
Overall Floor Load (with rated load) 196 psf (9 kPa) 234 psf (11 kPa)
Gradeability 30% 30%
Turning Radius (Inside) 0 0
Turning Radius (Outside) 55” (1.40 m) 55” (1.40 m)
Lift Time (With Rated Load) 16 sec 20 sec
Lower time (With Rated Load) 14 sec 18 sec
Drive Speed (Stowed) 2.5 mph (4.0 km/h) 2.5 mph (4.0 km/h)
Drive Speed (Raised) 0.5 mph (0.80 km/h) 0.5 mph (0.80 km/h)
Maximum Drive Height Full Height Full Height
Capacity (Overall) 500 lbs (227 kg) 500 lbs (227 kg)
Maximum # of Persons 2 2
Wind Rating 28 mph (12.5 m/s) 28 mph (12.5 m/s)
Tire Type Solid, N/M Solid, N/M
Tire Size 12 x 4 x 8 12 x 4 x 8
