Swift RT0814 Scissor Lift + Brian James DP35 Trailer Package
$70,609.00 Inc. GST
$64,190.00 Ex. GST
New from Swift Equipment. The RT0814 27ft All-terrain Scissor Lift offers durable, reliability and is perfect for outdoor work. With it’s easy to operate functions, the unit provides efficiency less time wastage while being used on site. With it’s narrow and compact structure the RT0814 is towable, saving on transport and associated costs.
- Max. working height 10m
- Max. platform height 8m
- Platform capacity 300kg
- Platform size (stowed) 1.4m x 2.727m
- Platform size (extended) 1.4m x 3.93m
- Ground clearance 280mm
The innovative DP35 provides a modern, advanced and compliant transport solution for a range of machines in many different sizes. The Digger Plant is a heavy duty trailer designed and manufactured in the UK. Suitable for commercial or individual use. Combine with our RT Scissor Lifts for an easy and cost effective way to transport your machinery.
- Gross kg: 3,500
- Load kg: 2,818
- Tare weight: 682
- Full LED Lighting
- Gavlavised Steel
- Heavy Duty Jockey Wheel
- Low tow hitch
New from Swift Equipment. The RT0814 27ft All-terrain Scissor Lift offers durable, reliability and is perfect for outdoor work. With it’s easy to operate functions, the unit provides efficiency less time wastage while being used on site. With it’s narrow and compact structure the RT0814 is towable, saving on transport and associated costs.
- Max. working height 10m
- Max. platform height 8m
- Platform capacity 300kg
- Platform size (stowed) 1.4m x 2.727m
- Platform size (extended) 1.4m x 3.93m
- Ground clearance 280mm
The innovative DP35 provides a modern, advanced and compliant transport solution for a range of machines in many different sizes. The Digger Plant is a heavy duty trailer designed and manufactured in the UK. Suitable for commercial or individual use. Combine with our RT Scissor Lifts for an easy and cost effective way to transport your machinery.
- Gross kg: 3,500
- Load kg: 2,818
- Tare weight: 682
- Full LED Lighting
- Gavlavised Steel
- Heavy Duty Jockey Wheel
- Low tow hitch
Scissor Lift
- 4-wheel drive
- 4 hydraulic outriggers with auto levelling
- Roll-out deck extension
- Proportional controls
- Non-marking tyres
- Power line to platform
- Drive motion alarm
- Descent alarm
- Manual lowering valve
- Flashing amber light
- Dual lanyard attachment points
- Oscillating axle
- Hour meter

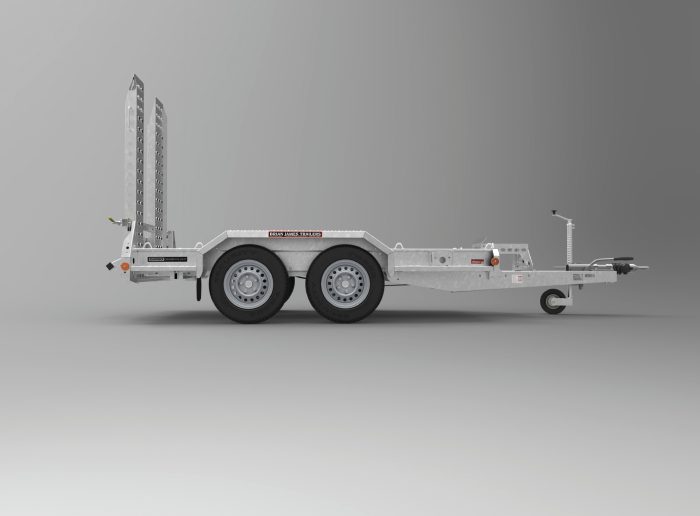

DP35 Trailer
- Gross kg: 3,500
- Load kg: 2,828
- Tare weight: 682
- Full LED Lighting
- Gavlavised Steel
- Heavy Duty Jockey Wheel
- Low tow hitch
- Power source “Yanmar Diesel 3TNV80F-NXDS
- Power 18.4kw”
Scissor Lift
- Max. working height 10.1m (Outrigger deployed)
- Max. platform height 8.1m (Outrigger deployed)
- Platform size (stowed) 1.4m x 2.727m
- Platform size (extended) 1.4m x 3.93m
- Extension deck length 1.2m
- Overall width 1.45m
- Overall length 3.310m
- Stowed height 2.5m
- Min. height (guardrails folded) 2.1m
- Ground clearance 280mm
- Weight 2796 KG
- Platform capacity (SWL) 300kg
- Max.drive height 7.9m
- Max. wind speed 12.5m/s
- Max. drive speed (stowed) 3.89km/h
- Max. drive speed (elevated) 0.61km/h
- Raise/lower time 19/30 sec (raise speed can adjust)
- Gradeability 35%
- Max. outrigger leveling, front to rear 6º
- Max. outrigger leveling, side to side 10º
- Inside turning radius 2.75m
- Outside turning radius 4.3m
- Exit/entry angle 20.7°
- Tyres 23″ x 8.5″ x 12″ non-marking, solid foam filled
- Controls proportional joystick
- Drive system 4-wheel drive
- Power source “Yanmar Diesel 3TNV80F-NXDS
- Power 18.4kw”
Trailer
- Internal bed width 1.7m
- Width exc marker lap 2.32m
- Overall width 2.5m
- Load bed length 3.2m
- Overall Length 5.2m
- Load bed height 0.40m
1 Year Warranty
