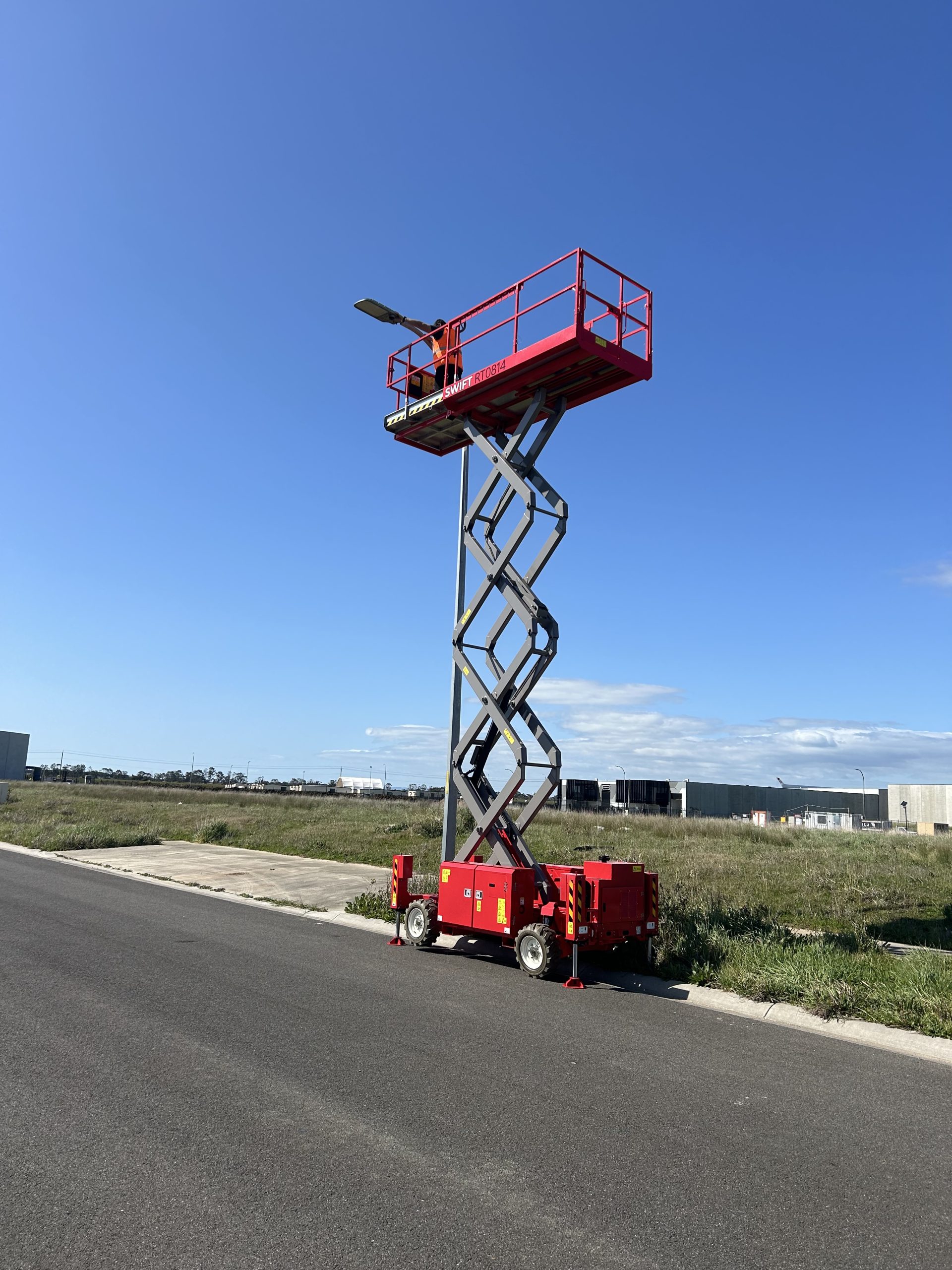

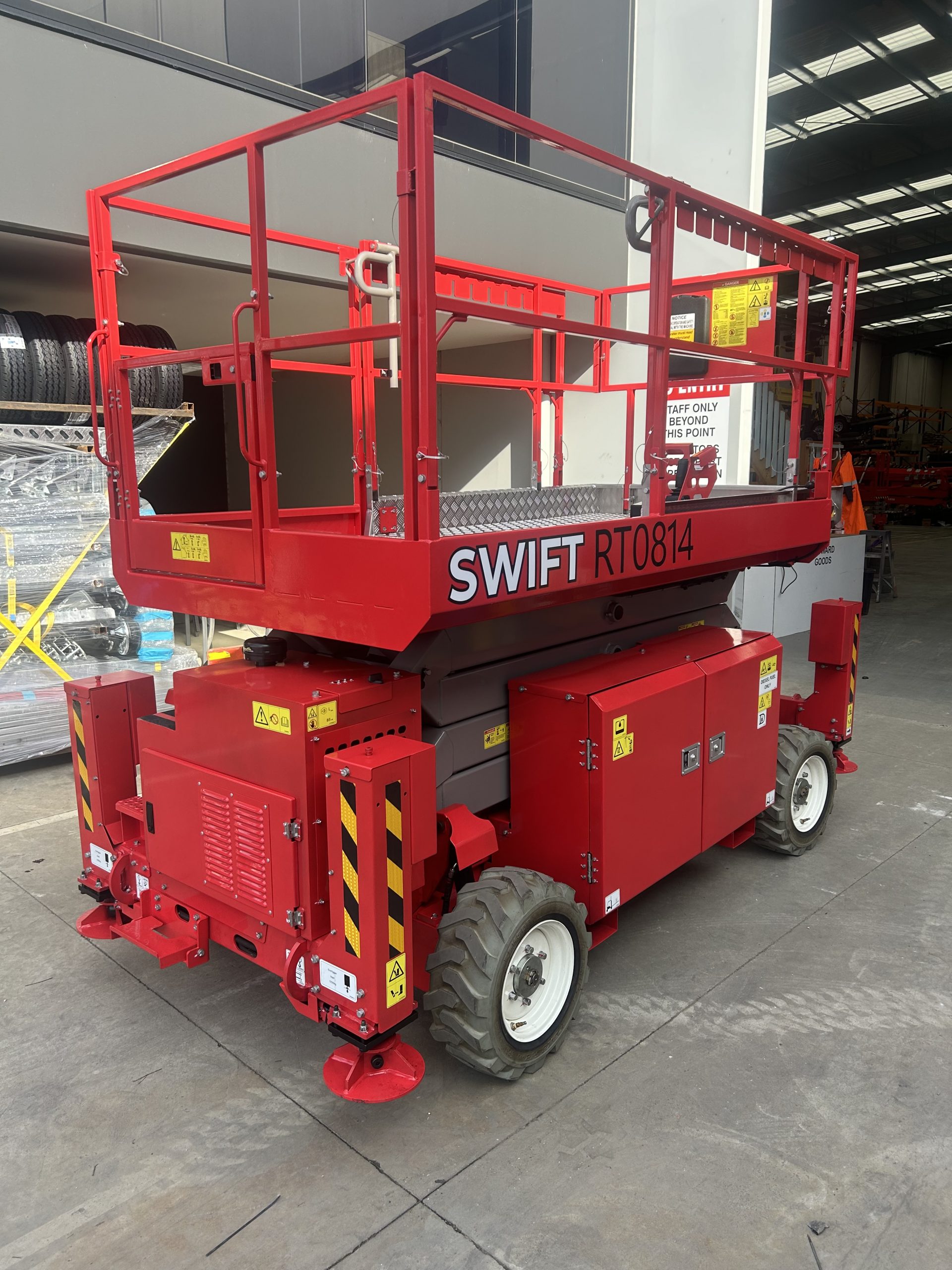

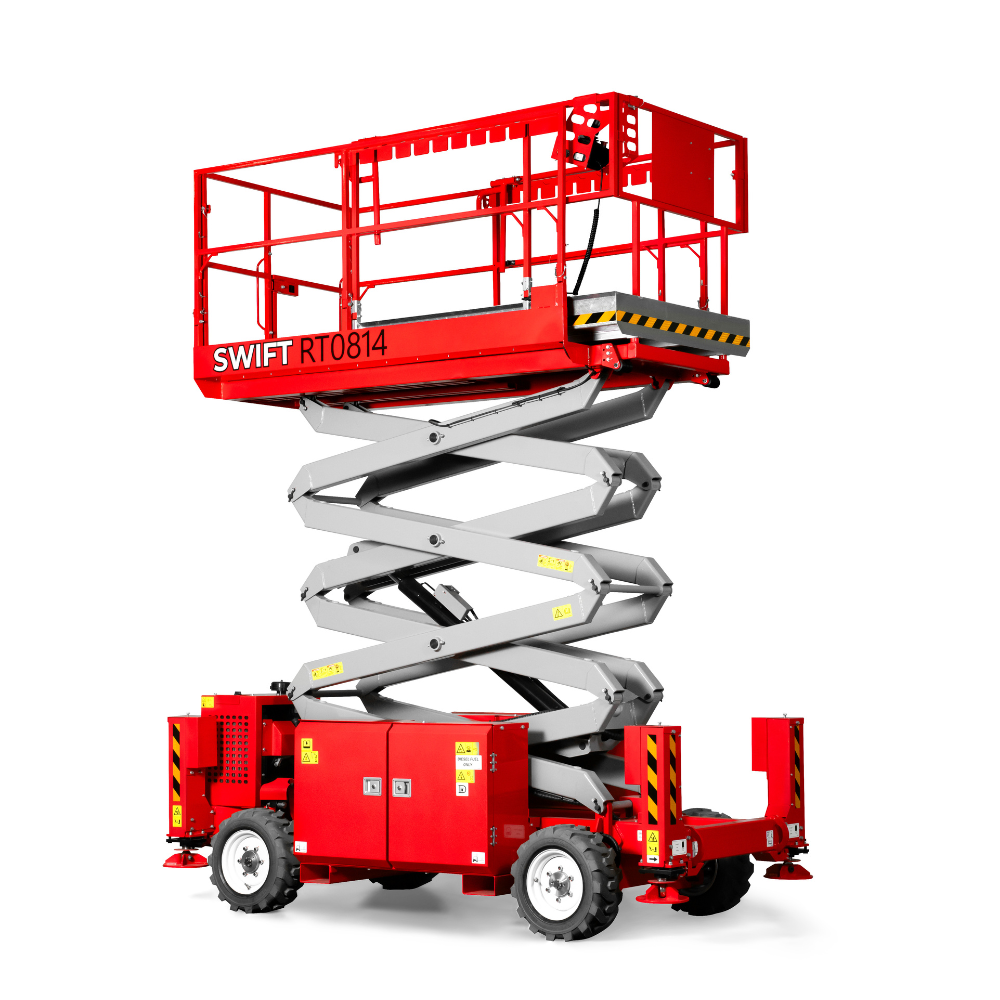

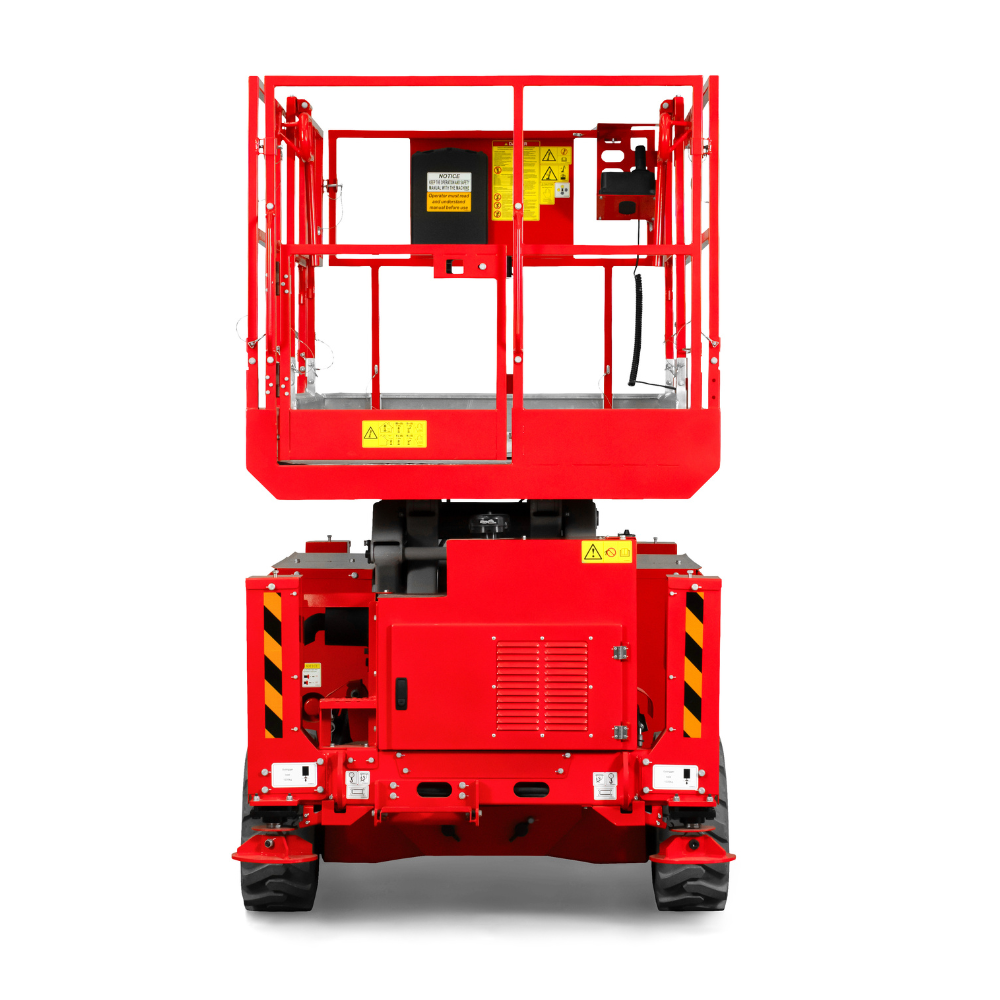

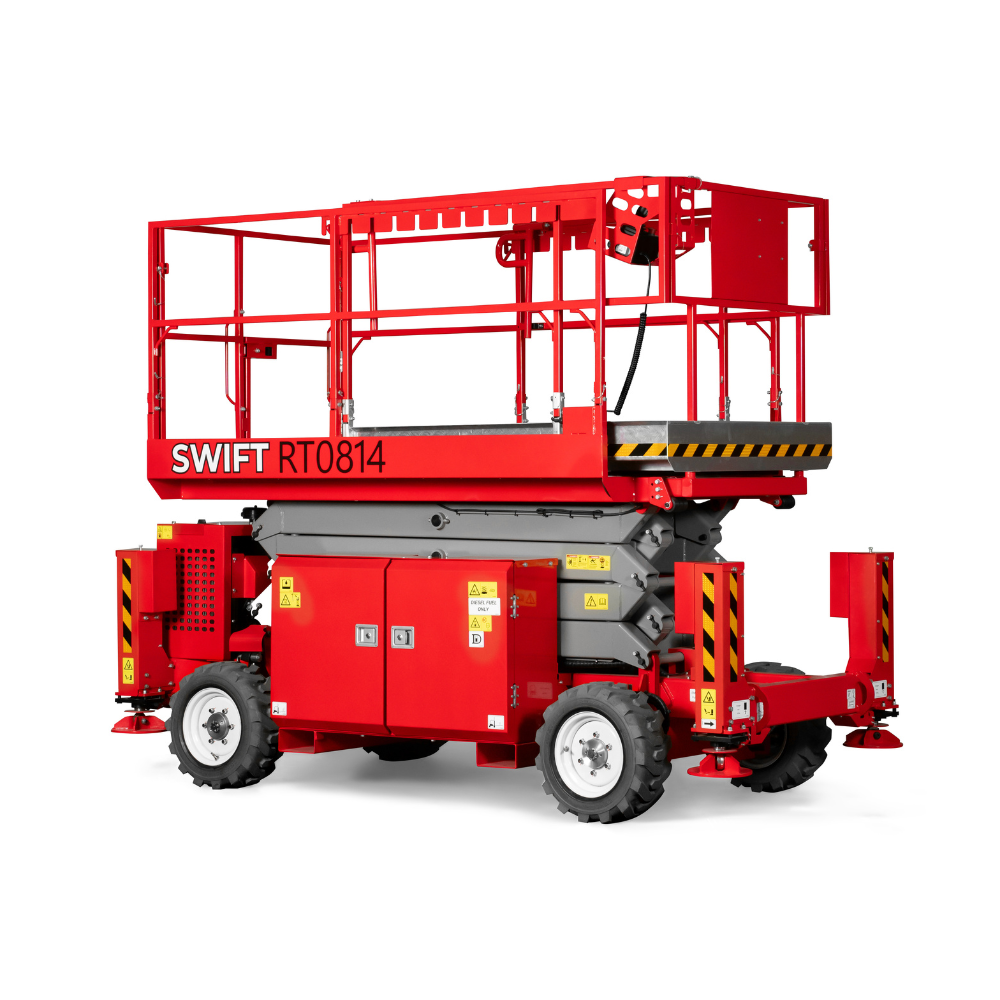

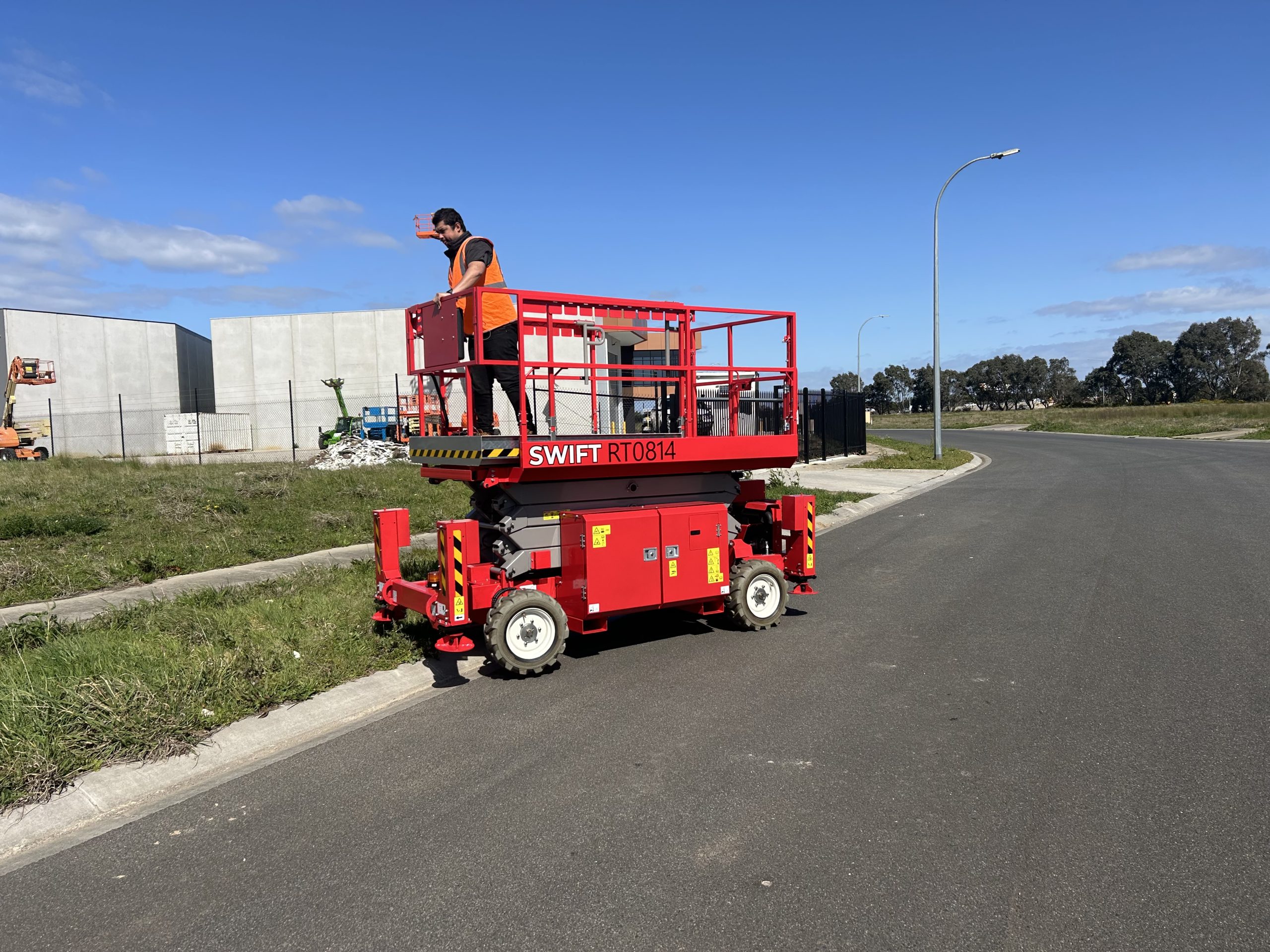

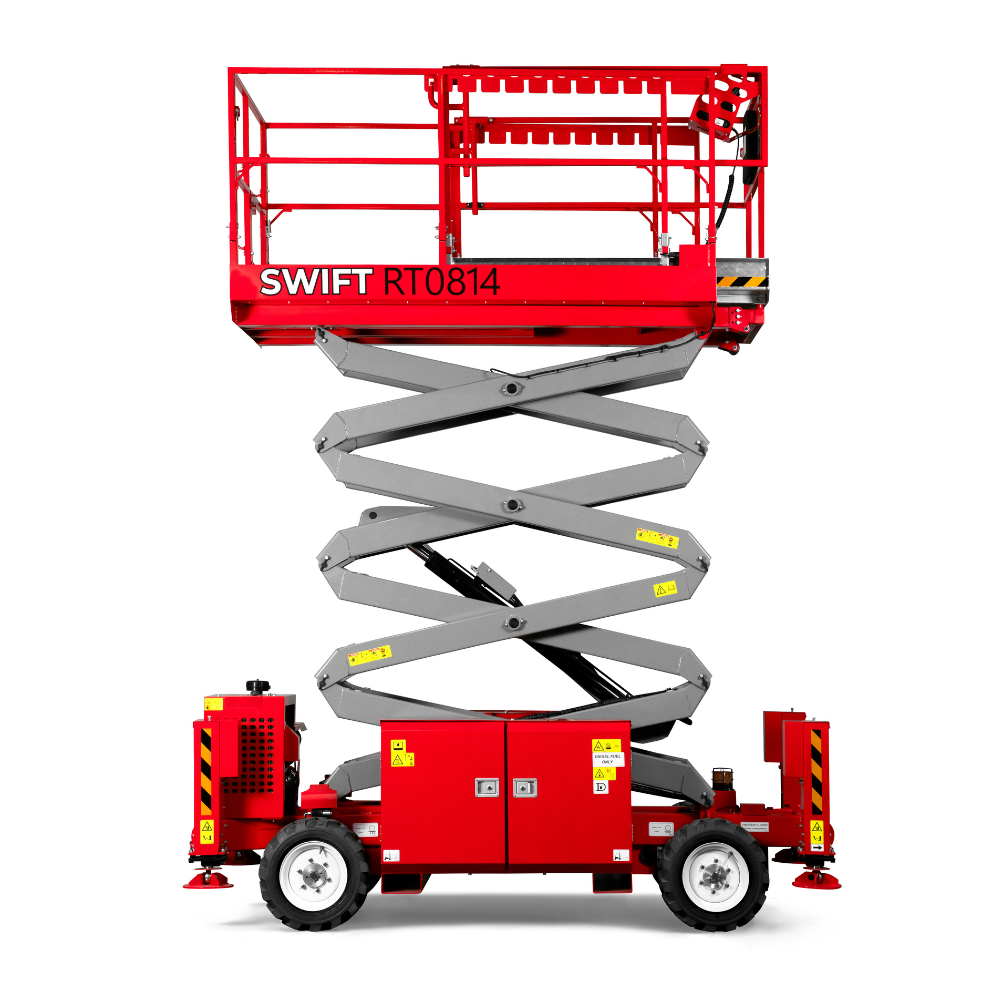

Swift RT0814 27ft/8m All Terrain Scissor Lift
$57,640.00 Inc. GST
$52,400.00 Ex. GST
New from Swift Equipment. The RT0814 27ft All-terrain Scissor Lift offers durable, reliability and is perfect for outdoor work. With it’s easy to operate functions, the unit provides efficiency less time wastage while being used on site. With it’s narrow and compact structure the RT0814 is towable, saving on transport and associated costs.

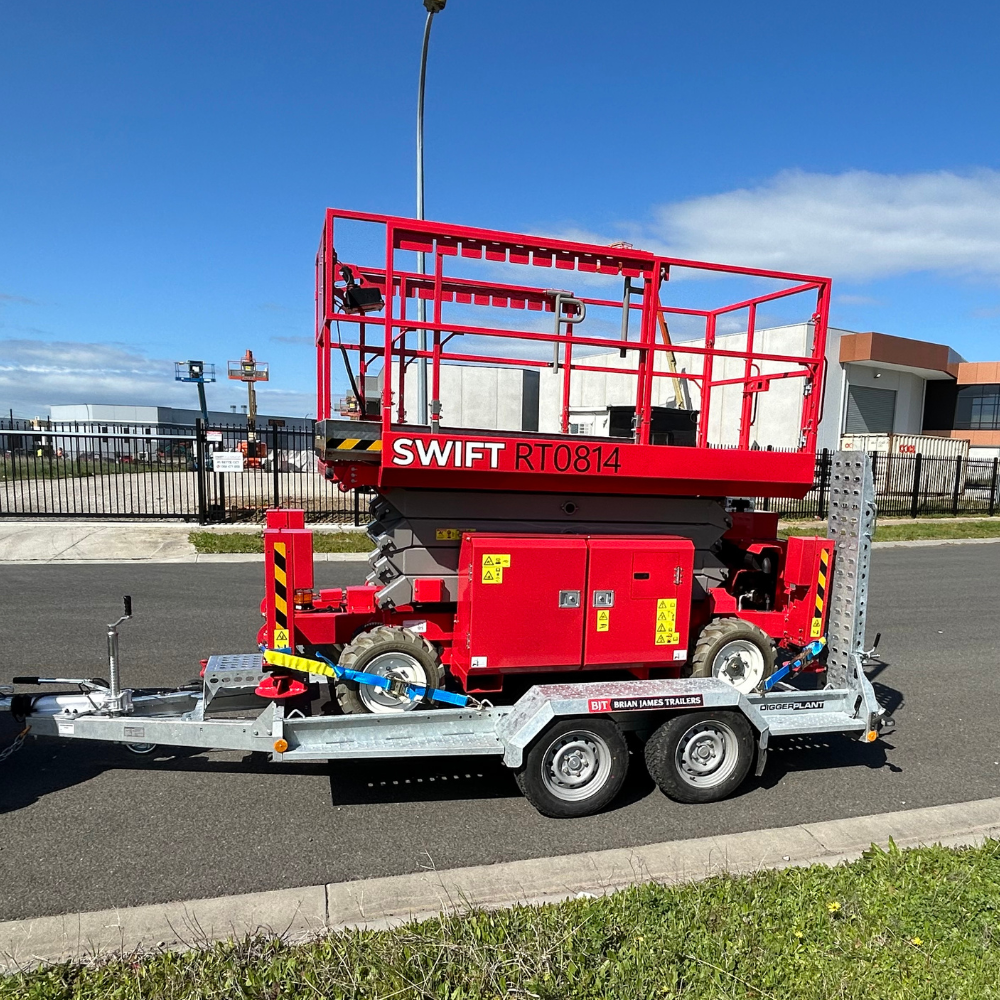

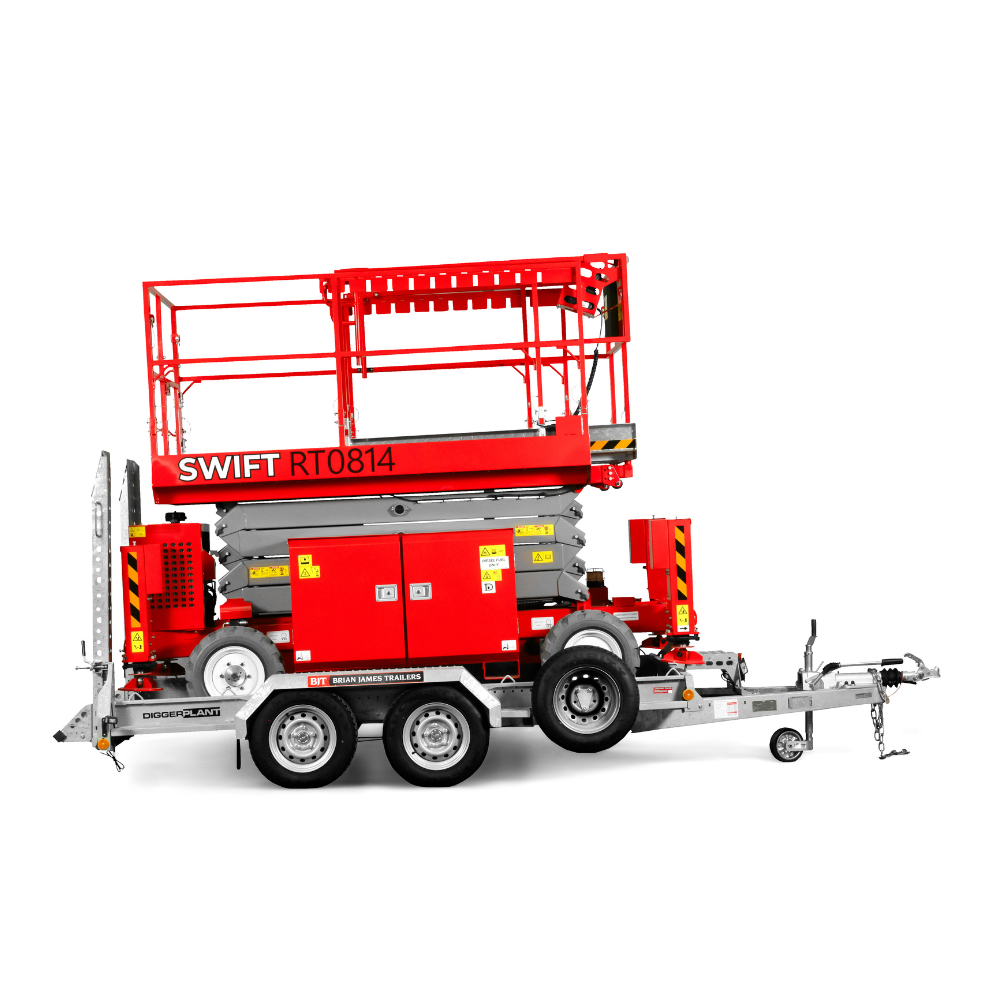

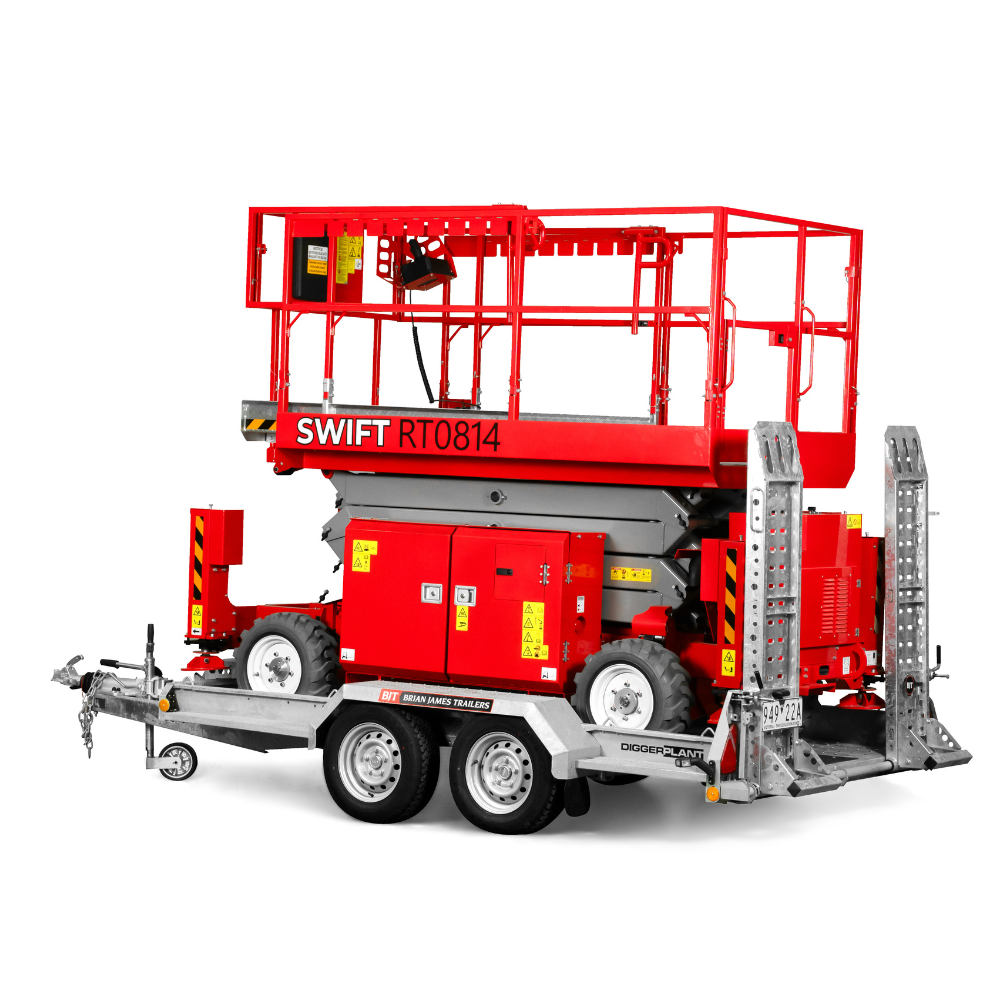

Pair with out Brian James DP35 3.5T Trailer

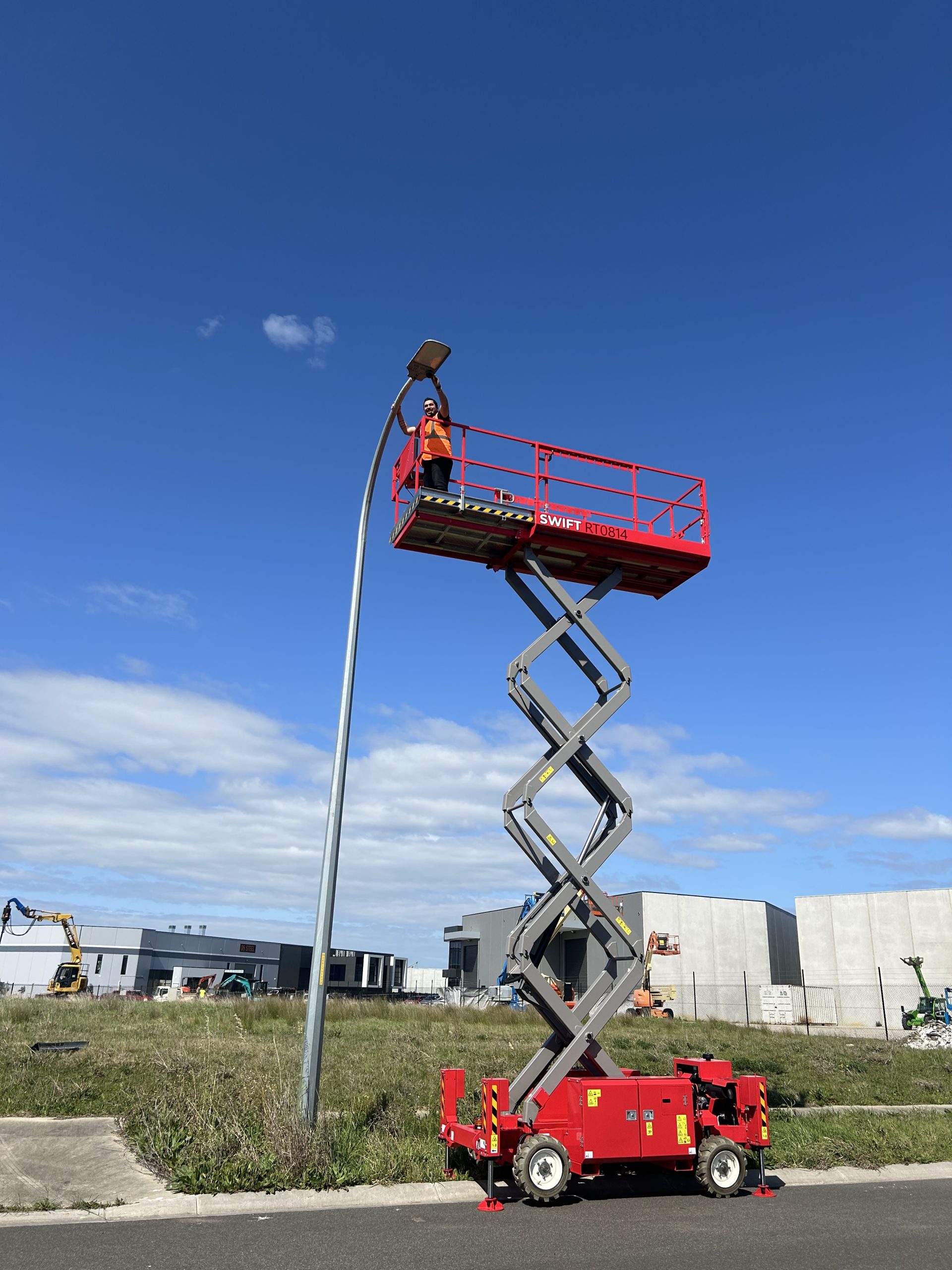

- Max. working height 10.m
- Max. platform height 8.m
- Platform capacity 300kg
- Platform size (stowed) 1.4m x 2.727m
- Platform size (extended) 1.4m x 3.93m
- Ground clearance 280mm
***OPTIONAL WINCH AVAILABLE***
New from Swift Equipment. The RT0814 27ft All-terrain Scissor Lift offers durable, reliability and is perfect for outdoor work. With it’s easy to operate functions, the unit provides efficiency less time wastage while being used on site. With it’s narrow and compact structure the RT0814 is towable, saving on transport and associated costs.

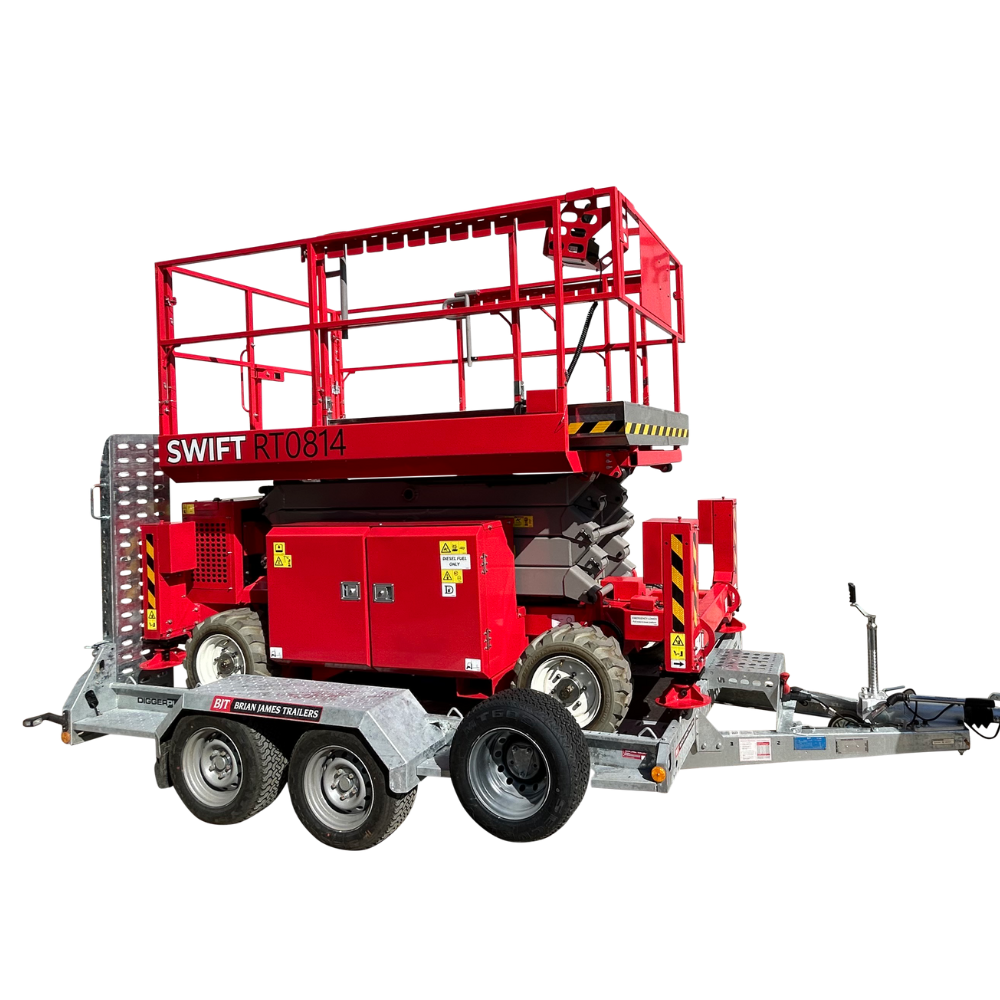

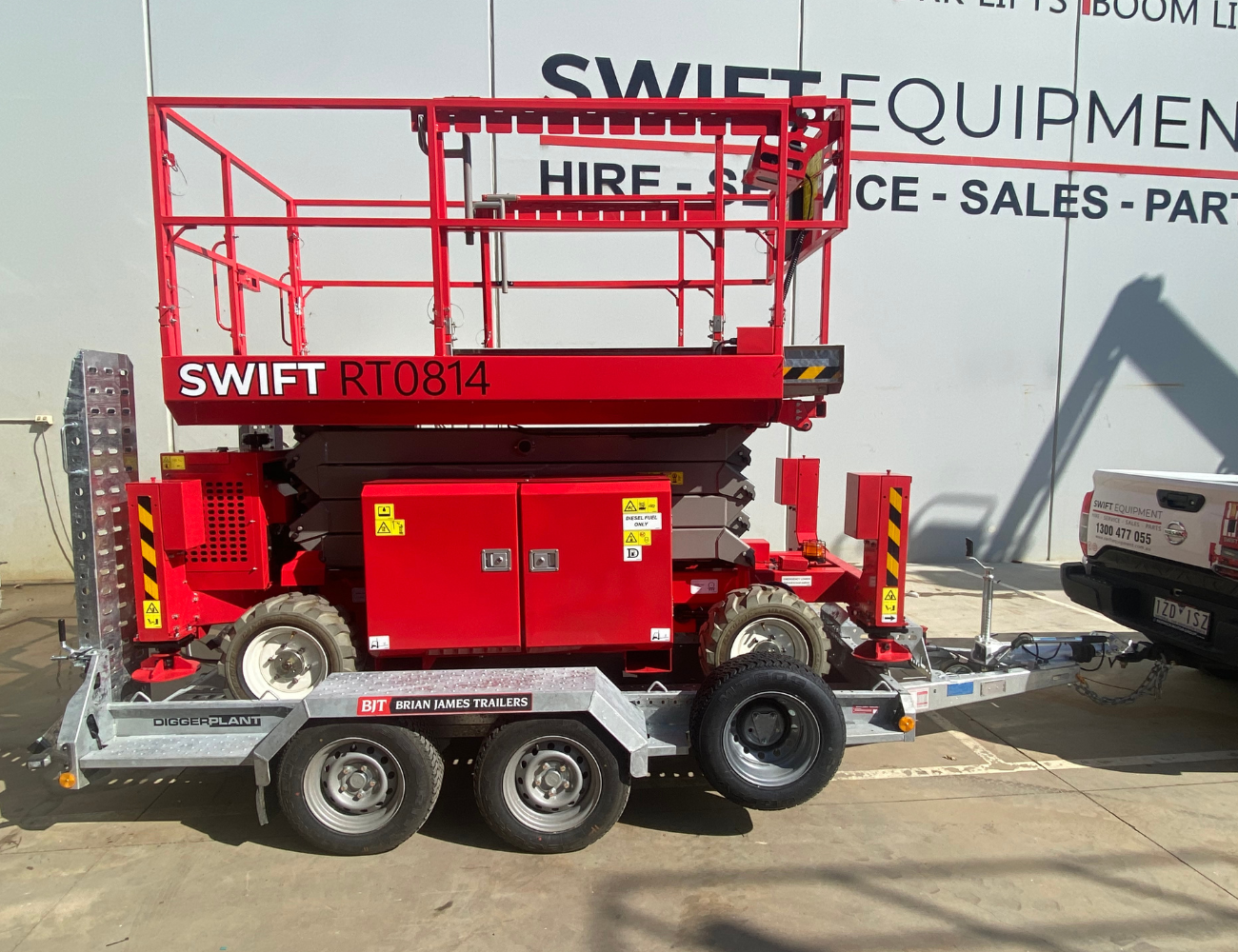

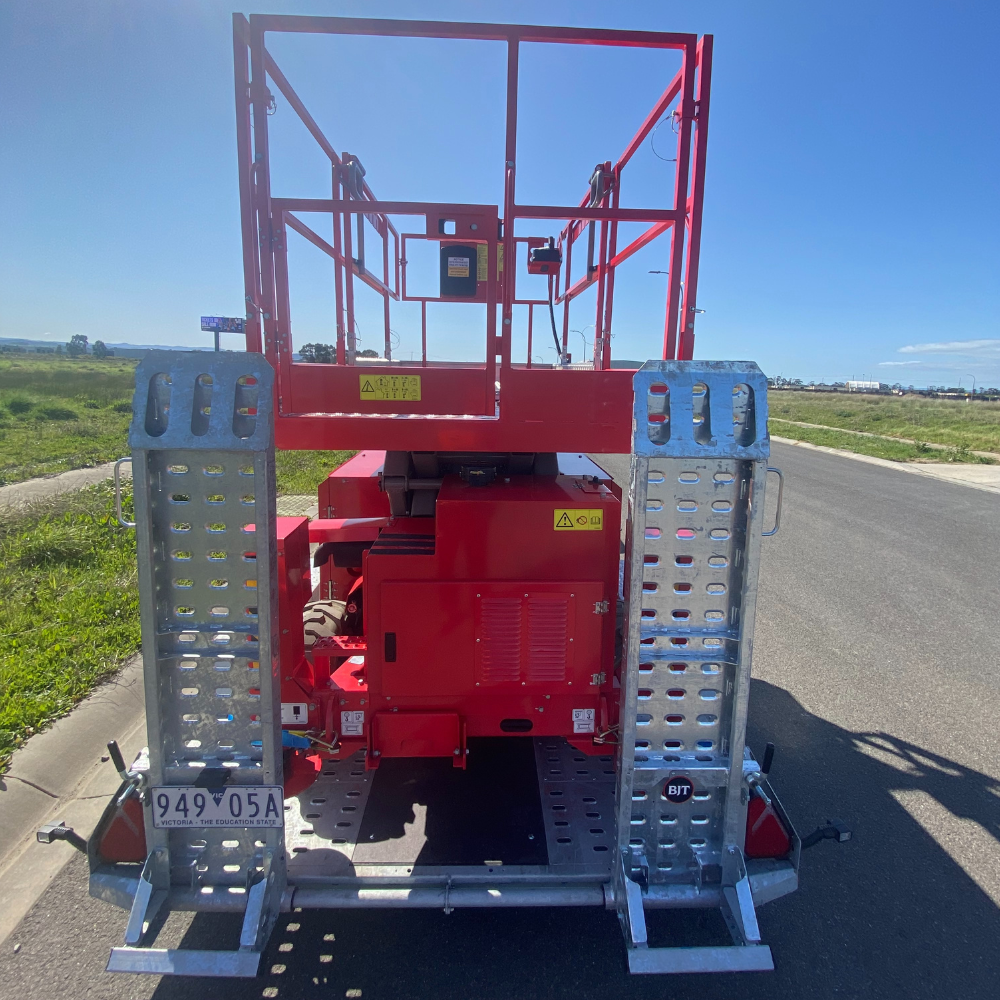

Pair with out Brian James DP35 3.5T Trailer.
- Max. working height 10.m
- Max. platform height 8.m
- Platform capacity 300kg
- Platform size (stowed) 1.4m x 2.727m
- Platform size (extended) 1.4m x 3.93m
- Ground clearance 280mm
- Narrow and compact unit
- Towable
- Easy to operate
- Roll-out deck extension to extra reach
- Ideal for outdoor work and rough terrain
- Power source “Yanmar Diesel 3TNV80F-NXDS
- Power 18.4kw”
- Max. working height 10.m (Outrigger deployed)
- Max. platform height 8.m (Outrigger deployed)
- Platform size (stowed) 1.4m x 2.727m
- Platform size (extended) 1.4m x 3.93m
- Extension deck length 1.2m
- Overall width 1.45m
- Overall length 3.310m
- Stowed height 2.5m
- Min. height (guardrails folded) 2.1m
- Ground clearance 280mm
- Weight 2796 KG
- Platform capacity (SWL) 300kg
- Max.drive height 7.9m
- Max. wind speed 12.5m/s
- Max. drive speed (stowed) 3.89km/h
- Max. drive speed (elevated) 0.61km/h
- Raise/lower time 19/30 sec (raise speed can adjust)
- Gradeability 35%
- Max. outrigger leveling, front to rear 6º
- Max. outrigger leveling, side to side 10º
- Inside turning radius 2.75m
- Outside turning radius 4.3m
- Exit/entry angle 20.7°
- Tyres 23″ x 8.5″ x 12″ non-marking, solid foam filled
- Controls proportional joystick
- Drive system 4-wheel drive
- Power source “Yanmar Diesel 3TNV80F-NXDS
- Power 18.4kw”
1 Year Full Comprehensive Warranty
