Skyjack 30ARJE 30ft Electric Boom Lift
$94,611.00 Inc. GST
$86,010.00 Ex. GST
The Skyjack 30ARJE 30ft Electric Boom Lift delivers quiet, zero‑emission performance with an 11 m working height and 6.26 m horizontal outreach. Its compact frame and true vertical lift make it ideal for indoor and space‑restricted environments.
The Skyjack 30ARJE Electric Boom Lift is engineered for precision access in warehouses, industrial facilities, and complex job sites. With an 11 m working height and 6.26 m horizontal reach, it provides exceptional positioning capability while its zero tailswing design and 1.19 m width maximise usability in narrow aisles and confined areas.
Powered by a 48 V DC battery pack with AC drive motors, the 30ARJE offers low maintenance, efficient runtime and emission‑free operation. SKYRISER™ true vertical lift technology reduces drift at height, while the ability to drive at full elevation increases productivity. Integrated safety features such as Secondary Guarding Electrical (SGE), tilt alarms and overload sensing help ensure secure operation in challenging environments.
Key Features
- Delivers an 11 m working height and 6.26 m horizontal outreach for broad access at height.
- SKYRISER™ technology provides true vertical lift with minimal drift from the work area.
- Rotating jib and proportional controls allow smooth, precise positioning.
- Drivable at full height to reduce repositioning time and increase workflow efficiency.
- Compact footprint with 1.19 m width and zero tailswing for use in tight or indoor spaces.
- 48 V, 305 Ah battery pack with swing‑out trays allows extended runtime and easy servicing.
- EASYDRIVE™ system offers intuitive direction sensing for effortless control.
- Secondary Guarding Electrical (SGE), tilt alarms and overload sensing enhance safety standards.
48 V DC battery pack (305 Ah) with dual AC electric traction motors and swing‑out battery trays for extended run time and easy maintenance.

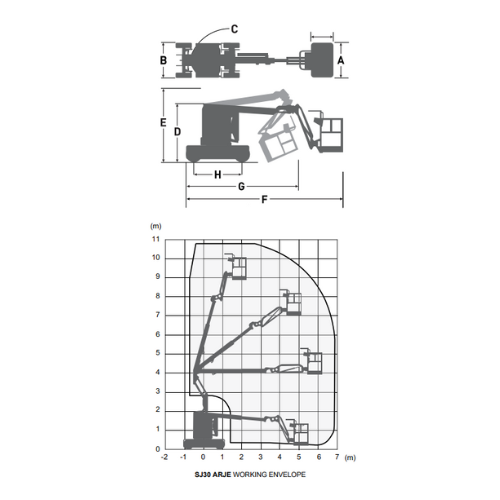

Specs
- Work Height: 11.00 m
- Platform Height: 9.00 m
- Horizontal Reach: 6.26 m
- Up and Over Height: 3.99 m
- Platform Size: 0.76 m x 1.17 m
- Stowed Width: 1.19 m
- Tailswing: 0 m
- Stowed Height: 1.98 m
- Transport Height: 2.50 m
- Stowed Length: 5.51 m
- Transport Length: 3.80 m
- Wheelbase: 1.65 m
- Ground Clearance: 10.16 cm
- Turret Rotation: 355° non-continuous
- Platform Rotation: 180°
- Jib Length: 1.25 m
- Jib Vertical Motion: 142° (+77° / -65°)
- Weight: 5,590 kg
- Gradeability: 35% (25% counterweight down)
- Turning Radius (Inside): 1.52 m
- Turning Radius (Outside): 3.23 m
- Drive Speed (Stowed): 4.8 km/h
- Drive Speed (Elevated): 0.64 km/h
- Platform Capacity: 227 kg
- Tyres: 22 x 7 x 12 solid, non-marking
- Floor Load Rating: 15.35 kg/cm² (local), 2,203 kg/m² (overall)
- Max Wind Rating: 12.5 m/s
- Personnel Rating: 2 (no wind), 1 (max wind)
Please enquire with our team for current warranty details. Standard coverage is provided in line with manufacturer warranty policies and may vary by region or hire arrangement.
