Sinoboom AB18J Plus 60ft Knuckle Boom Lift

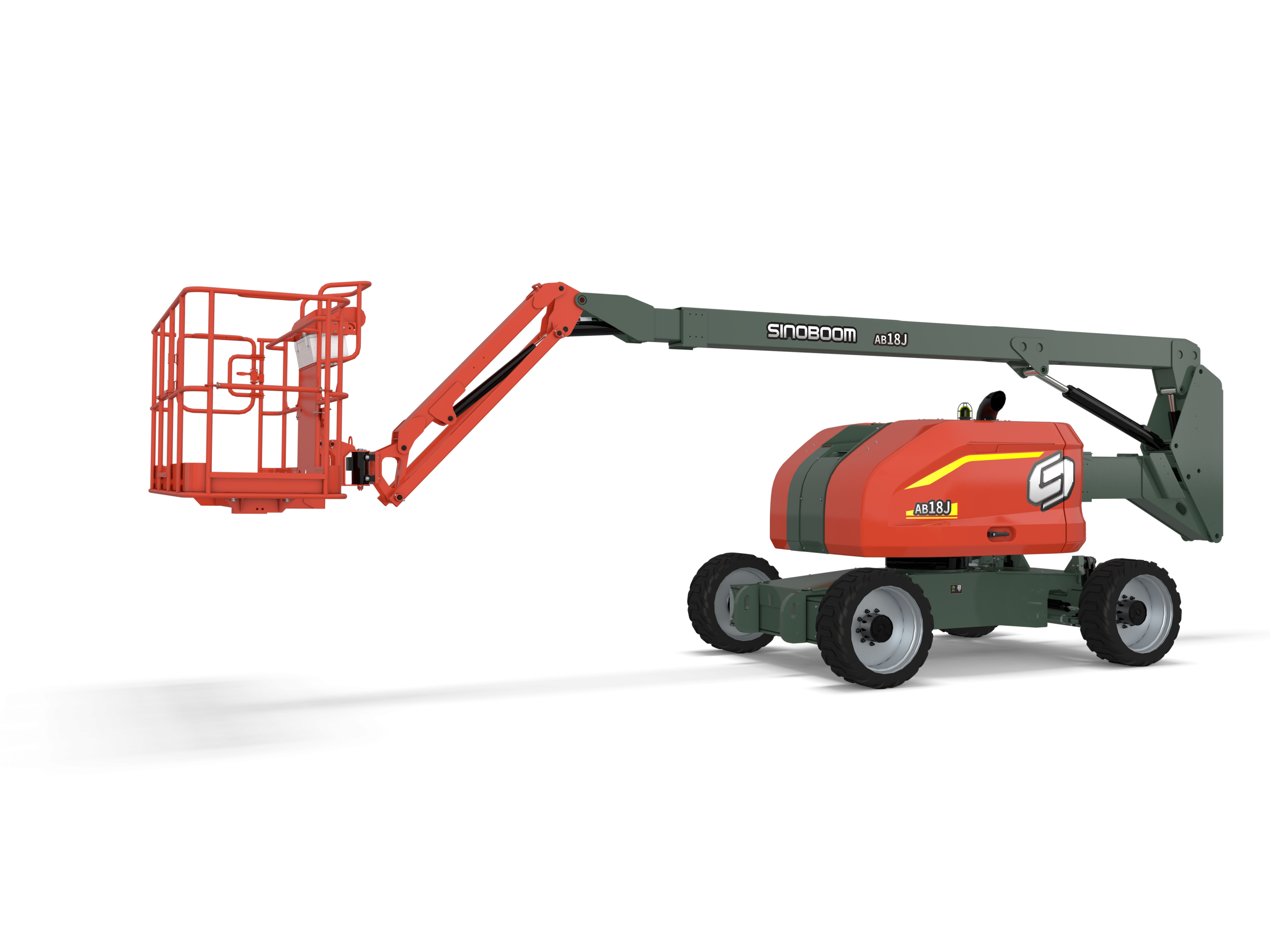

Sinoboom AB18J Plus 60ft Knuckle Boom Lift - Image 2

Sinoboom AB18J Plus 60ft Knuckle Boom Lift

$139,782.50 Inc. GST

$127,075.00 Ex. GST

The Sinoboom AB18J Plus 60ft knuckle boom features great rough terrain performance thanks to its active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance making it easily adaptive to both indoor and outdoor applications.



SKU: Sinoboom AB18J Plus

Enhanced Working Performance

  • Maintains leading performance in maximum working height, horizontal outreach, and up-and-over clearance.
  • Maximum platform capacity to 340kg, enabling more tools and personnel, improving job efficiency
  • Active oscillating function in both working and stowed states, and a tilt rating of up to 5°, providing adaptability to more rugged road surfaces and strong field operation ability

Advanced Operator Experience

  • Equipped with a 7″ intelligent HMI display for smoother operation, easier maintenance, and enhanced user experience
  • 4WD and 4WS high-performance configuration for great gradeability, off-road capability, and smooth maneuverability

Durable and Cost Effective

  • Reinforced, optimized structural design improves durability and extends service life
  • High parts compatibility across models improves service efficiency and reduces total cost of ownership



  • Max Platform Height 18.58 m
  • Max Working Height 20.58 m
  • Max Horizontal Outreach 12 m
  • Max Up and Over Clearance 7.98 m
  • Stowed Length 8.8 m
  • Overall Width 2.49 m
  • Stowed Height 2.54 m
  • Wheelbase 2.49 m
  • Ground Clearance 0.42 m
  • Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
  • Weight 9,500kg

Standard Features

  • Full-time oscillation
  • 4-wheel brake
  • 7 inch LED screen
  • 360° continuous turntable rotation
  • Automotive sleeves for all pipes
  • Fault diagnosis system
  • Hydraulic platform levelling
  • Platform rotation function
  • Weighing system
  • Tilt protection system
  • Maximum allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Rotating warning light
  • Horn & buzzer
  • Mechanical release for travel braking
  • Emergency stop system
  • Emergency lowering system
  • Mechanical release for travel braking
  • Emergency stop system
  • Emergency lowering system
  • Platform with inward swinging gate 2.44 x 0.91 x1.1m
  • Proportional control with 3 joysticks
  • Second guarding device

Optional Accessories

  • Platform work light
  • Overhead anti-collision device
  • AC power line to the platform
  • Solid tyres
  • Non-marking tyres
  • Half-height guardrail (only for platform with inward swinging gate)
  • Glazier kit bracket (for platform with inward swinging gate)
  • Four-wheel steering
  • Hydraulic generator
  • T-Box GPS
  • Tool box (for platform with inward swinging gate)
  • Manual storage box

Engine:

36.4kW/2200 rpm/D2.9 L4/ Deutz/EU Stage V

36.4kW/2200 rpm/D2.9 L4/Deutz/EPA Tier 4F

36kW/2500 rpm/F2.8CS449/Cummins/China T4

43kW/2500 rpm/QSF2.8T3NA60/Cummins/China T3, EU Stage 3A

36.8kW/2200 rpm/ YCF3050 / Yucchai / China T4

36.5kW/2400rpm/YCF3050/Yucchai/China T3

Hydraulic Tank Capacity: 130L

Diesel Tank Capacity: 100L

System Voltage: 12V DC



  • Max Platform Height 18.58 m
  • Max Working Height 20.58 m
  • Max Horizontal Outreach 12 m
  • Max Up and Over Clearance 7.98 m
  • Stowed Length 8.8 m
  • Overall Width 2.49 m
  • Stowed Height 2.54 m
  • Weight 9,500kg
  • Wheelbase 2.49 m
  • Ground Clearance 0.42 m
  • Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
