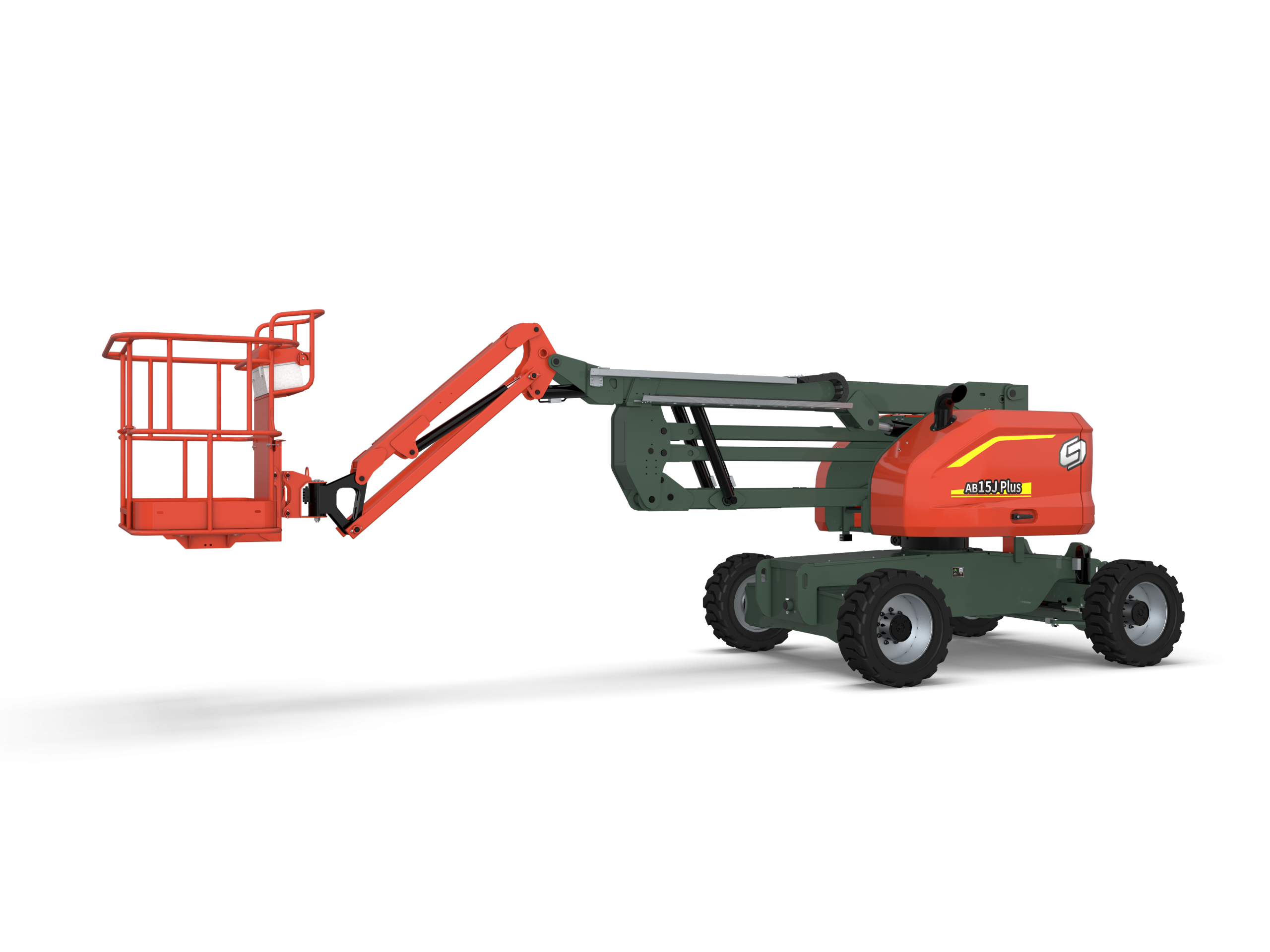

Sinoboom AB15J Plus 46ft Knuckle Boom Lift
Sinoboom AB15J Plus 46ft Knuckle Boom Lift - Image 2

Sinoboom AB15J Plus 46ft Knuckle Boom Lift

$100,567.50 Inc. GST

$91,425.00 Ex. GST

The Sinoboom AB15J Plus 46ft knuckle boom features great rough terrain performance thanks to its active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance making it easily adaptive to both indoor and outdoor applications.





SKU: Sinoboom AB15J

Excellent Rough Terrain Performance

The machine features great rough terrain performance thanks to its active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance making it easily adaptive to both indoor and outdoor applications.

Large Platform Capacity

Two persons with tools can be easily loaded in the platform to complete jobs efficiently by its leading platform capacity up to 300 kg.

Efficient Hydraulic System

Function pump updated from gear pump to piston pump, providing more oil flow and higher oil pressure, making the multi boom function better, improving the operation efficiency.

Greater Tilt Rating

The machine can be easily adaptive to terrains requiring greater tilt rating and help boost work efficiency.

Ultimate HMI Experience

Easy manual-free trouble shooting. One button for fault inquiry, and all faults will be displayed on the screen without codes, easily readable to minimize downtime.

Easy tool-free calibration through the screen.



  • Max Platform Height 14.7 m
  • Max Working Height 16.7 m
  • Max Horizontal Outreach 8.5 m
  • Max Up and Over Clearance 7.2 m
  • Stowed Length 7.49 m
  • Overall Width 2.3 m
  • Stowed Height 2.28 m
  • Transport Length 5.75 m
  • Transport Width 2.3 m
  • Transport Height 2.66 m
  • Wheelbase 2.3 m
  • Ground Clearance 0.35 m
  • Platform Size (L×W×H) 1.83 m×0.85 m×1.1 m
  • Weight 7,700kg (18.2kW engine) or 8,070kg (36kW engine)

















Standard Features

  • Active oscillating axle
  • 4-wheel brake
  • 4WD x 2WS
  • 360° continuous turntable rotation
  • 7 inch LED screen
  • Fault diagnosis system
  • Hydraulic platform levelling
  • Platform rotation function
  • Weighing system
  • Tilt protection system
  • Maximum allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Rotating warning light
  • Horn & buzzer
  • Mechanical release for travel braking
  • Emergency stop system
  • Emergency lowering system
  • Rotatable engine
  • Proportional control with 3 joysticks
  • Automotive sleeves for all pipes
  • Engine preheating
  • Anti-restart protection for engine
  • Automatic engine shutdown in case of malfunction
  • Platform with inward swinging gate
  • Divider/combiner anti-slip system
  • Anti-pinch hand device
  • Tool box for platform with inward swinging gate
  • Manual storage box
  • Telematics-ready connector

Optional Accessories

  • Platform work light
  • Overhead anti-collision device
  • White noise alarm
  • AC power line to the platform
  • Solid tyres
  • Non-marking tyres
  • Platform 1.45 x 0.85 x 1.1m
  • Half-height guardrail (only for platform with inward swinging gate)
  • Cold-weather heating package (only for 36kw engine)
  • 9kW hydraulic generator (only for Kubota V2403BM-DI-CT04 engine)
  • Oil cooler (engine 36kw)

Engine:

18.2kW / 3000 rpm / D1105-EF02_CN4/Kubota/EU stage V, China IV

43.2kW/ 2400 rpm / V2403-CR-TIE4B-SBM-2/Kubota/EPA Tier 4

36.0kW / 2600 rpm / V2403BM-DI-CT04/Kubot/China IV

Hydraulic Tank Capacity: 112L

Diesel Tank Capacity: 55L

System Voltage: 12V DC



  • Max Platform Height 14.7 m
  • Max Working Height 16.7 m
  • Max Horizontal Outreach 8.5 m
  • Max Up and Over Clearance 7.2 m
  • Stowed Length 7.49 m
  • Overall Width 2.3 m
  • Stowed Height 2.28 m
  • Transport Length 5.75 m
  • Transport Width 2.3 m
  • Transport Height 2.66 m
  • Weight 7,700kg
  • Wheelbase 2.3 m
  • Ground Clearance 0.35 m
  • Platform Size (L×W×H) 1.83 m×0.85 m×1.1 m
