Sinoboom AB10J 34ft Knuckle Boom Lift

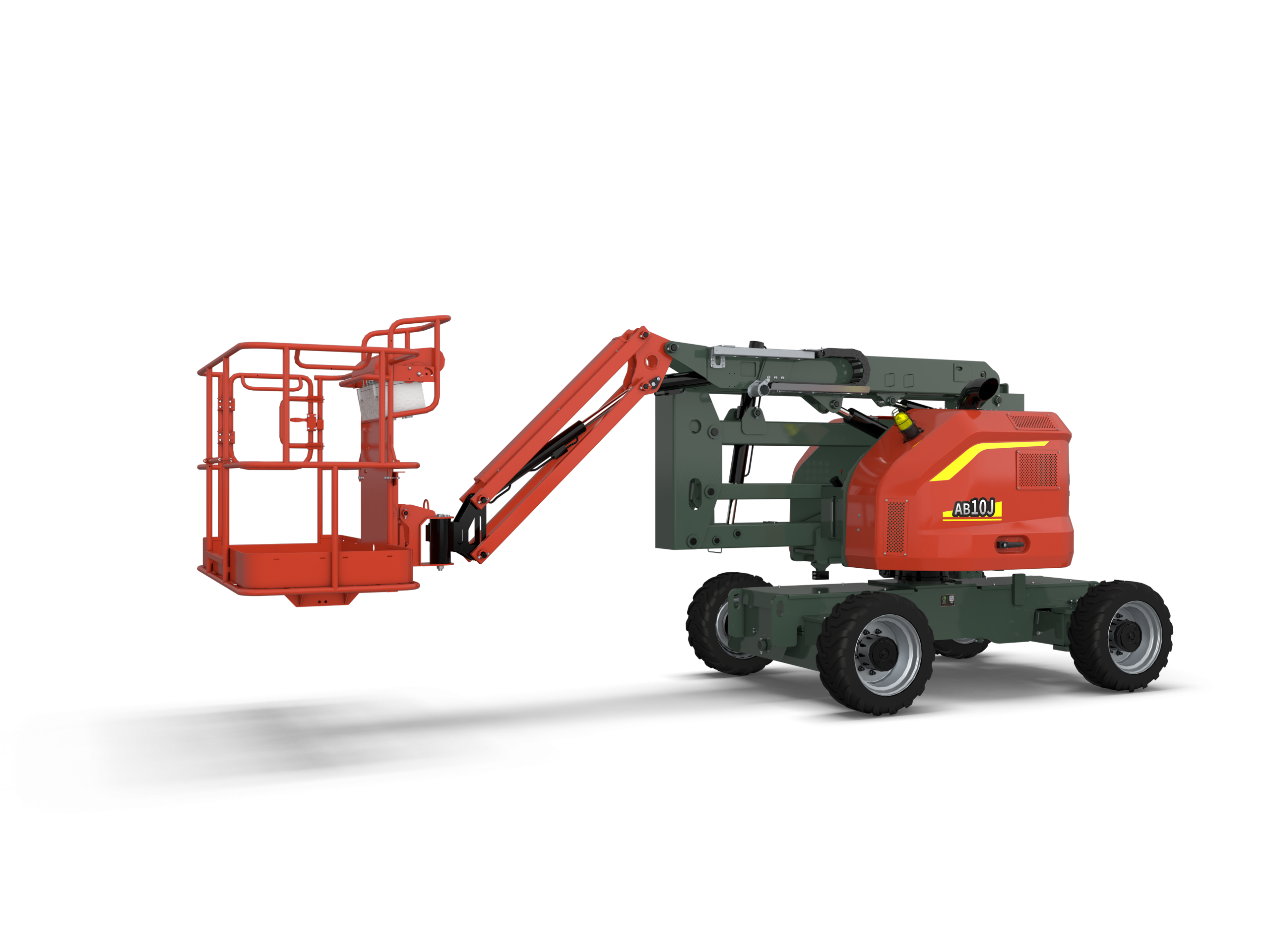

Sinoboom AB10J 34ft Knuckle Boom Lift - Image 2

Sinoboom AB10J 34ft Knuckle Boom Lift

$82,225.00 Inc. GST

$74,750.00 Ex. GST

Excellent Rough Terrain Performance

The Sinoboom AB10J 34ft knuckle boom features great rough terrain performance thanks to its active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance making it easily adaptive to both indoor and outdoor applications.







SKU: Sinoboom AB10J-1

Excellent Rough Terrain Performance

The machine features great rough terrain performance thanks to its active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance making it easily adaptive to both indoor and outdoor applications.

Large Platform Capacity

Two persons with tools can be easily loaded in the platform to complete jobs efficiently by its leading platform capacity up to 250 kg.

Greater Tilt Rating

The machine can be easily adaptive to terrains requiring greater tilt rating and help boost work efficiency.

Ultimate HMI Experience

Easy trouble shooting, manuals free. One button for fault inquiry, and all faults will be displayed on the screen without codes, easily readable to minimize downtime.



  • Max Platform Height 10.38 m
  • Max Working Height 12.38 m
  • Max Horizontal Outreach 5.9 m
  • Max Up and Over Clearance 6.1 m
  • Stowed Length 5.52 m
  • Overall Width 1.85 m
  • Stowed Height 1.99 m
  • Transport Length 4.9 m
  • Transport Width 1.85 m
  • Transport Height 2.49 m
  • Wheelbase 1.88 m
  • Ground Clearance 0.28 m
  • Platform Size (L×W×H) 1.45 m×0.85 m×1.1 m
  • Weight 4990kg



Standard Features

  • Active oscillating axle
  • 7 inch LED screen
  • 4WD x 2WS
  • Proportional control
  • Tilt rating 3°/4.5°
  • Emergency lowering system
  • Hydraulic platform levelling
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Horn & buzzer
  • 4-wheel brake
  • Emergency stop system
  • Flashing beacon
  • 355° non-continuous rotation
  • Lifting/Tie down points
  • Fault diagnosis system
  • All motion alarm
  • Swing-out engine tray
  • Tilt protection system
  • Foam-filled non-marking RT tyres
  • Engine preheating
  • Anti-pinch device
  • Two-speed travel motor
  • Anti-restart protection for engine
  • Automatic engine shutdown in case of malfunction
  • Manual storage box



Optional Accessories:

  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • White noise alarm

Engine:

18.2kW / 3000 rpm / D1105-EF02_CN4/Kubota/EU stage V, EPA tier 4F

18.4kW/ 3000 rpm / 3TNV80F-NXDSI/Yanmar/EU stage V, EPA tier 4F

Hydraulic Tank Capacity: 78L

Diesel Tank Capacity: 38L

System Voltage: 12V DC



  • Max Platform Height 10.38 m
  • Max Working Height 12.38 m
  • Max Horizontal Outreach 5.9 m
  • Max Up and Over Clearance 6.1 m
  • Stowed Length 5.52 m
  • Overall Width 1.85 m
  • Stowed Height 1.99 m
  • Transport Length 4.9 m
  • Transport Width 1.85 m
  • Transport Height 2.49 m
  • Weight 4990kg
  • Wheelbase 1.88 m
  • Ground Clearance 0.25 m
  • Platform Size (L×W×H) 1.42 m×0.76 m×1.1 m
