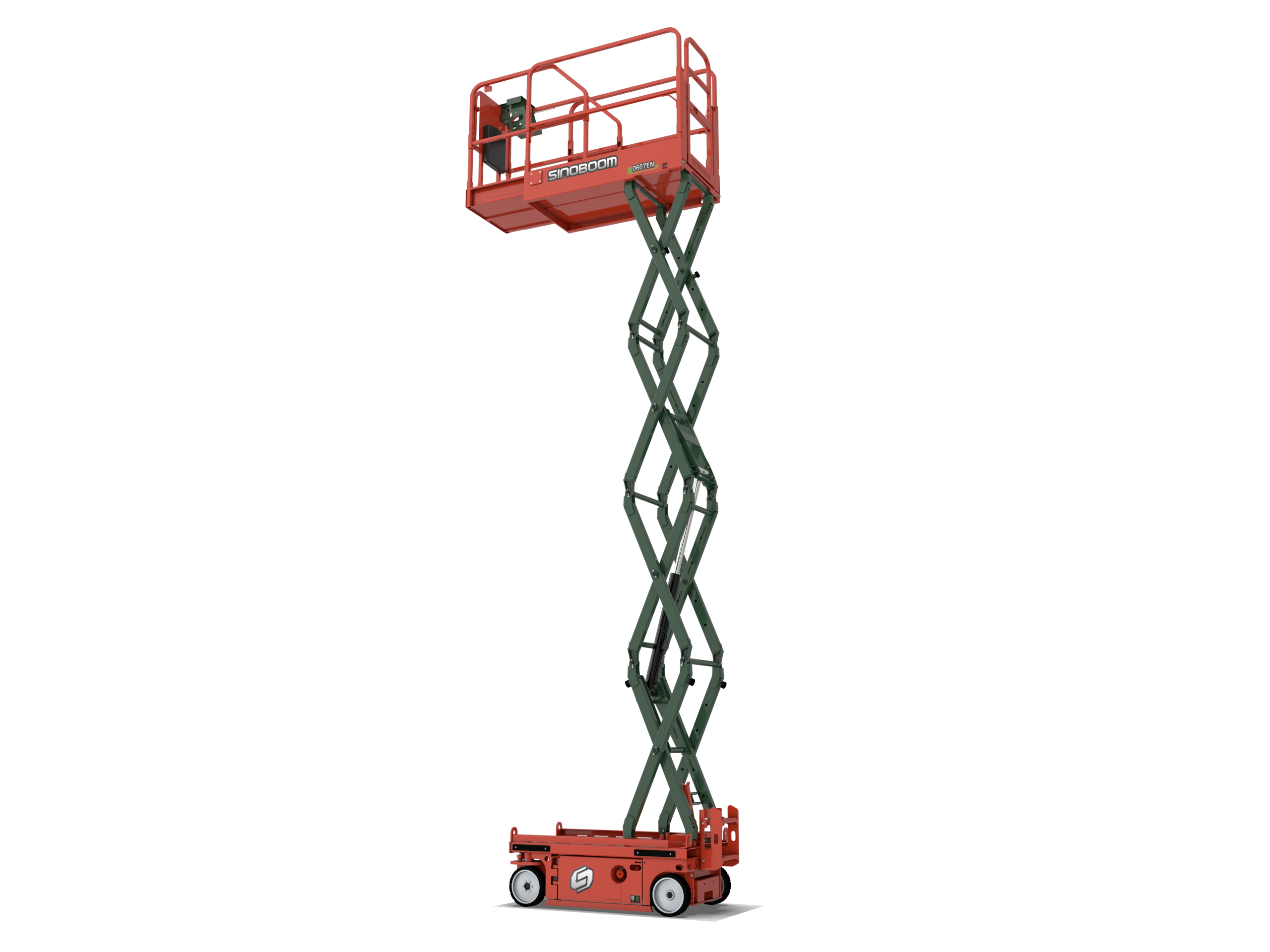

Sinoboom 0607EN 9ft 6m Electric Scissor Lift
$14,212.00 Inc. GST
$12,920.00 Ex. GST
The Sinoboom 0607EN 19ft electric drive lifts have a compact, light weight design, able to travel in elevators and pass through standard doorways without folding the guardrails. The scissor stack is strengthened and widened, with 50% increase in width, making for more stable lifting and lowering at height.
The Sinoboom 0607EN 19ft electric drive lifts have a compact, light weight design, able to travel in elevators and pass through standard doorways without folding the guardrails. The scissor stack is strengthened and widened, with 50% increase in width, making for more stable lifting and lowering at height.
Maintenance is convenient with a modular design and high versatility of parts. Intelligent fault diagnosis and troubleshooting with the widescreen HMI display.
- Platform Height: 5.55m indoor 4.6m outdoor
- Working Height: 7.55m indoor 6.6m outdoor
- Lift Capacity: 230kg
- Indoor and outdoor rated
-
- Maintenance-free battery
- Auto braking system
- Fault diagnosis system
- Forklift pockets and lifting points
- Pothole protection
- Bumper rails
- Weighing system
- Proportional control
- Emergency lowering system
- Tilt protection system
- Electrophoretic painting
- Manual storage box
- Telematics-ready connector
- Non-marking tyres
- Emergency stop
- Flashing beacon
- Buzzer
- Foldable platform
- Driveable at full height
Options and Accessories:
- RCBO
- Industrial power device on platform
- Charging transfer wire
- EQSS
Power Source: 24VDC 2.2kW
Batteries: 24V 120Ah 20hr (Lead-acid battery)
Charger: 100 ~ 240V AC/15A
Drive Motor: 24VDC/0.4kW
- Platform Height: 5.55m indoor 4.6m outdoor
- Working Height: 7.55m indoor 6.6m outdoor
- Platform Length: 1.41m
- Platform Extension: 0.76m
- Platform Width: 0.76m
- Overall Length: 1.58m
- Overall Width: 0.78m
- Overall Height: 1.99m
- Weight: 1100kg
