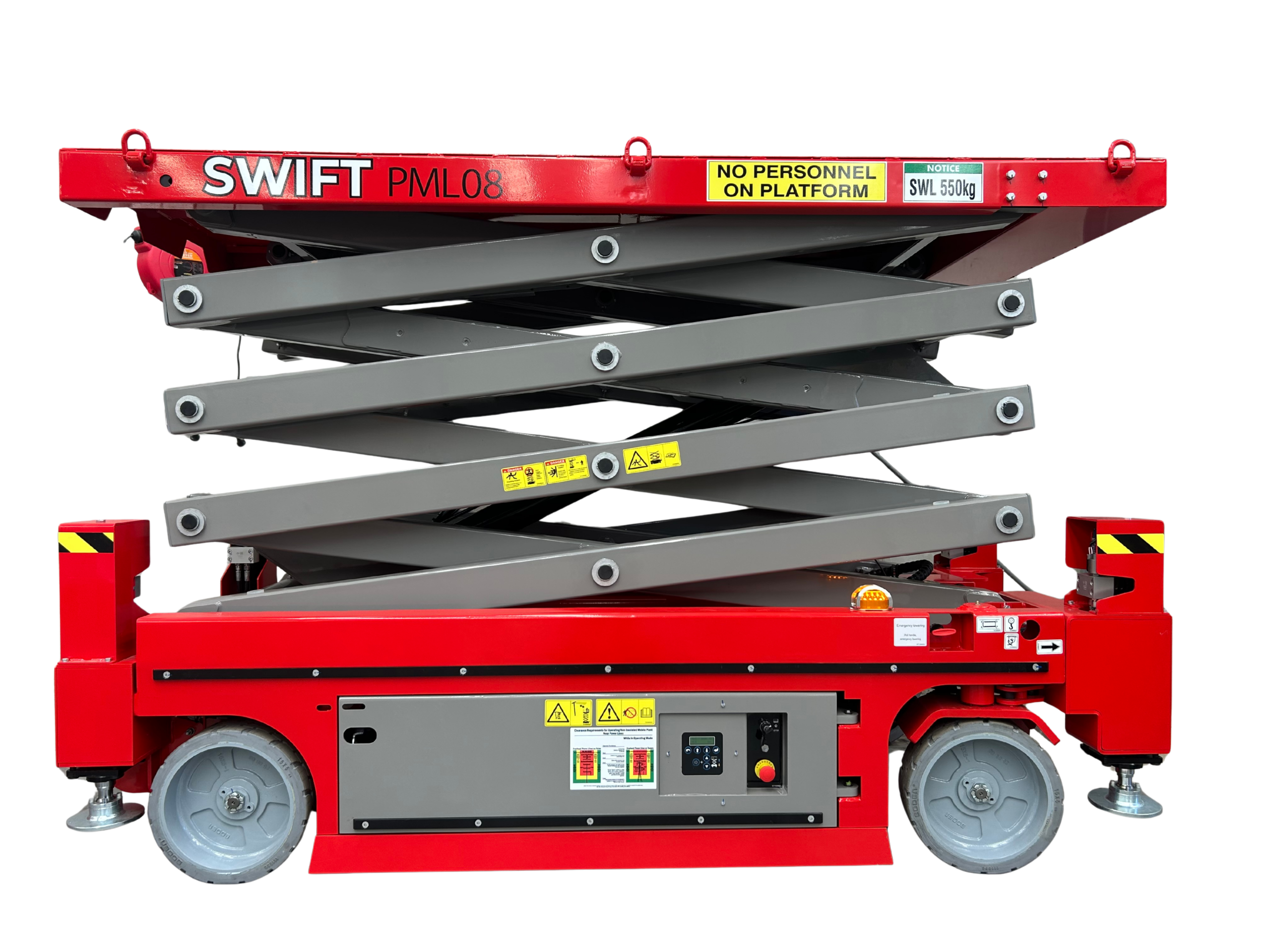

Equipped with a quiet, smooth electric drive motor, this material lift is ideal for noise sensitive environments. Fully wireless remote control enables operators to maintain safe distance.
- LIFT HEIGHT: 8M
- PLATFORM SIZE – 1190 x 2780mm with 6 tie downs
- LIFT CAPACITY: 550KG
- Easy AUTO LEVELLING – Front-Back 10° Side-Side 15°
- 24v Maintenance free batteries
Optional Extras

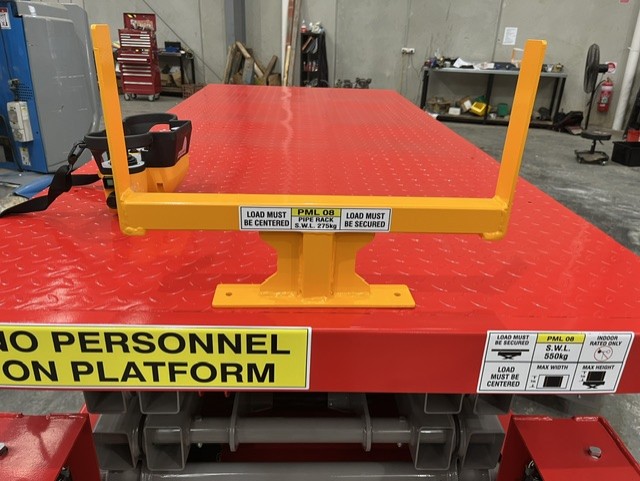

- Pipe Racks

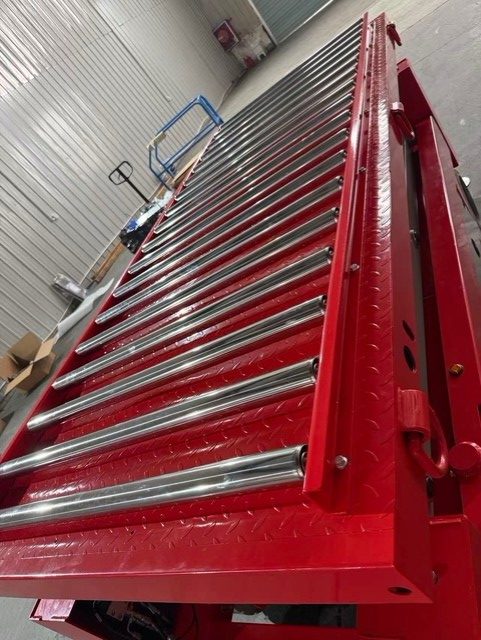

- Platform Rollers
- Tier 1 Spec
- LIFT HEIGHT: 8M
- PLATFORM SIZE – 1190 x 2780mm with 6 tie downs
- LIFT CAPACITY: 550KG
- Easy AUTO LEVELLING – Front-Back 10° Side-Side 15°
- 24v Maintenance free batteries
Battery 24V DC (4*6V/224Ah)
Charger 85-265V36A mp
Specifications
- Indoor use only
- Drivable at full height
- Driving Speed (stowed) 0- 3.2 km/h
- Driving Speed (raised) 0-0.8 km/h
- Machine Length 2.78m
- Gradeability 0.3
- Turning Radius 2.45 m
- Maximum Working Inclination Angle 10° / 15°
- Rise/Lower Speed 30 / 30 sec
- Tyres 38*13 cm
- Power Source 24V (4x6V) DC Battery
Load Limits
- Maximum width 1m
- Maximum height 1m
- Lift Capacity 550kg
1 Year Warranty
