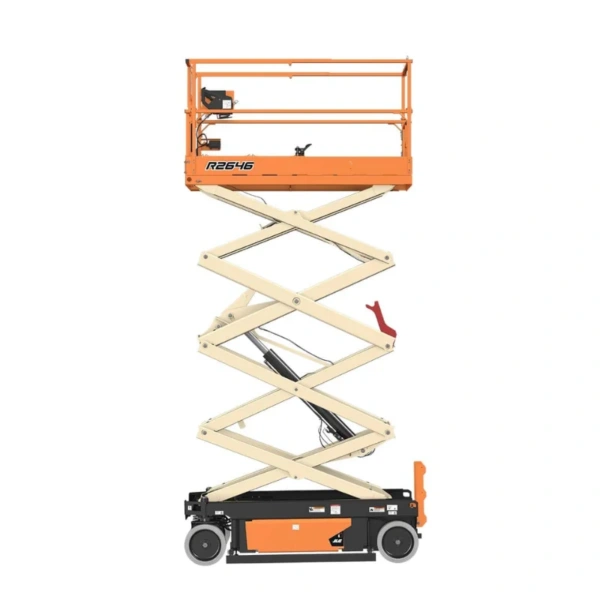

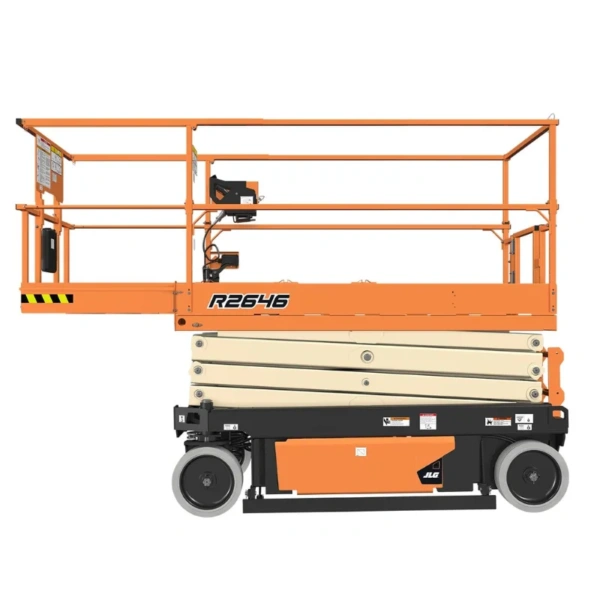

New JLG R2646 26ft 8m Electric Scissor Lift
$29,579.00 Inc. GST
$26,890.00 Ex. GST
Maximize Productivity: Class-leading 1,200-lb capacity, indoors and outdoors
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
Meet the Highest Standards: Complies with A92.20 ANSI regulations
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Key Specs
- Platform Height 7.92 m
- Working Height 9.92 m
- Platform Capacity 545 kg
- Capacity on Platform Extension 120 kg
Maximize Productivity: Class-leading 1,200-lb capacity, indoors and outdoors
Tackle Demanding Terrain: Active pothole protection provides increased ground clearance
Meet the Highest Standards: Complies with A92.20 ANSI regulations
Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ Connectivity Hardware
Key Specs
- Platform Height 7.92 m
- Working Height 9.92 m
- Platform Capacity 545 kg
- Capacity on Platform Extension 120 kg
- Proportional Controls
- Load Sensing System
- Battery Condition Indicator
- All Motion Alarm
- Horn
- Hourmeter
- Tilt Alarm and Light
- Lanyard Attach Points
- Moveable, Removable Platform Control
- Nickel Plated Pins
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Steel Swing-Out Doors
- Variable Tilt Visual Zone Indicator
- Manual Descent Cable
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Flashing Amber Beacon
- Self Closing, Self Latching Gate
- Fold Down Rails
- USB Charger and phone Holster
- MDI (Ground)
- Drive Motor Covers
- AS/NZS 1418.10 Compliance
Batteries 4 x 6V 220amp-hr
Charger 27 amp
Drive Hydraulic Front Wheel
- Platform Height 7.92 m
- Working Height 9.92 m
- Platform Capacity 545 kg
- Capacity on Platform Extension 120 kg
- Occupants (Indoor/ Outdoor) 2 / 1
- Lift/Lower Time 49 /44 Seconds
- Maximum Drive Height Full Height
- Weight* 2450 kg
- Ground Bearing Pressure 9.6 kg/cm²
- Drive Speed–Elevated 0.8 km/h
- Drive Speed–Lowered 4.8 km/h
- Gradeability 25%
- Turning Radius (Inside) Zero
- Turning Radius (Outside) 2.2 m
JLG Industries, Inc. backs its products with its exclusive “1 & 5” Warranty. We provide coverage on all products for one (1) full year and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/ or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications. Please reference the serial number plate on the machine for additional information.
