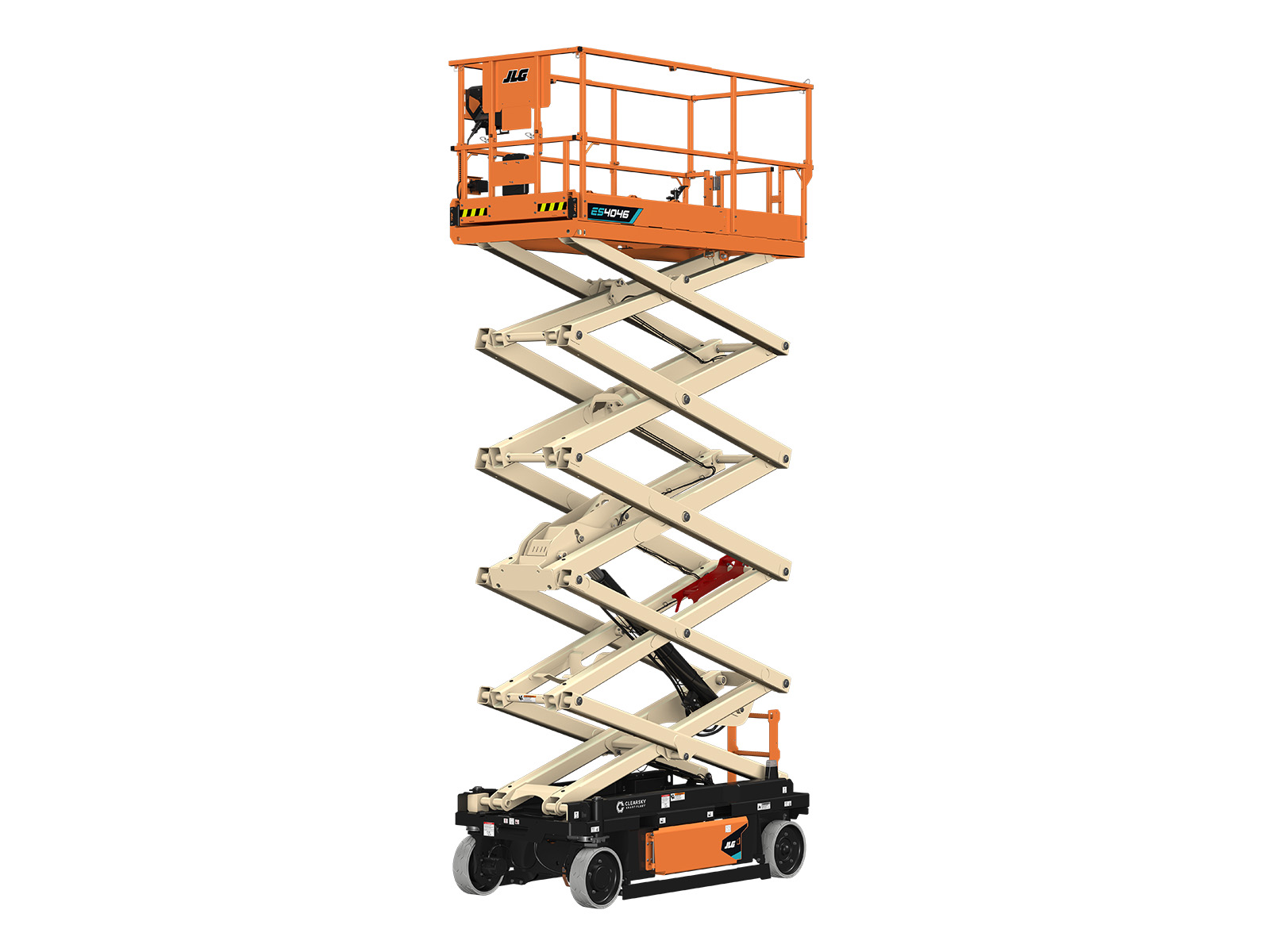

New JLG ES4046 40ft 12m Electric Scissor Lift
$39,600.00 Inc. GST
$36,000.00 Ex. GST
The JLG ES4046 is a high-performance electric scissor lift designed for efficient access at height. With up to a 12m working height, 320kg platform capacity and smooth proportional controls, it combines productivity, manoeuvrability and reduced maintenance for demanding indoor and outdoor applications.
The JLG ES4046 is an electric scissor lift that provides a working height of approximately 14 metres while maintaining a compact and user-friendly design. It is suited to indoor projects and outdoor applications on level surfaces where a clean, quiet machine is preferred.
The spacious platform gives operators room to work comfortably while carrying tools and materials. Its electric drive system reduces noise and emissions, making it a popular choice for warehouses, shopping centres, commercial buildings and maintenance facilities.
For tasks that require extra height without moving to a larger boom lift, the ES4046 offers a practical balance of reach, platform space and manoeuvrability.
Key Features:
- Load Sensing System: Prevents the platform from being overloaded by continuously monitoring weight, helping protect operators and equipment.
- Active Pothole Protection System: Automatically enhances machine stability when the platform is elevated, reducing the risk of instability on uneven surfaces.
- Variable Tilt Sensing with Slope Alarm and Light: Alerts operators when the machine is being used on unsafe gradients, helping prevent tip-over incidents.
- Dual Motor Direct Electric Front Wheel Drive & Steer: Delivers smooth, responsive driving and steering performance for better manoeuvrability in tight workspaces.
- Full Proportional Drive Joystick Control: Offers precise control over machine movements, allowing operators to work safely and efficiently.
- 0.91 m Roll-Out Deck Extension: Expands the working area without repositioning the machine, increasing productivity at height.
- On-Board Self-Diagnostic Testing: Continuously monitors machine systems and helps identify faults quickly.
- 8.4 x 6V 213 A/hr AGM Batteries: Provide reliable all-electric power for indoor and low-noise applications while minimising maintenance requirements.
Drive Motors: PMAC (Permanent Magnet Alternate Current)
Hydraulic Pump Motor: DC
Batteries: 4 x 6V (255Ah)
Charger (120/240V – 50/60HZ): 27 A
Specs:
Working Height (Indoor/ Outdoor) 13.92 m / 10.75 m
Platform Height – Elevated (Indoor/ Outdoor) 11.92 m / 8.75 m
Platform Capacity – Indoor 350 kg
Platform Capacity – Outdoor 250 kg
Number of Operators 3 indoor / 1 outdoor
Capacity on Optional Deck Extension 113 kg
Lift/Lower Time (No Load) 66 / 52 seconds
Lift/Lower Time (Rated Load) 76 / 42 seconds
Maximum Drive Height 11.92 m / 8.75 m
Machine weight 2826 kg
Maximum Ground Bearing Pressure 10.7 kg/cm2
Drive Speed – Lowered 4.8 km/h
Drive Speed – Elevated 0.8 km/h
Gradeability 25%
Turning Radius – Inside zero
Turning Radius – Outside 2.39 m
Max Tilt Rating (Side-to-Side) 1.5°
Max Tilt Rating (Fore and Aft) 3.5°
Tires (Non-Marking Solid): 406 x 125 mm
JLG Industries, Inc. backs its products with its exclusive “2 & 5” Warranty.
We provide coverage on all products for one (2) full year and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/ or equipment changes without prior notification.
This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
