New JLG 860SJ HC3 86ft Telescopic Boom Lift
$213,785.00 Inc. GST
$194,350.00 Ex. GST
The JLG 860SJ is a heavy-duty straight boom lift delivering 26.21m platform height and 22.86m outreach. With dual capacity ratings, quick elevation and rugged design, it’s ideal for construction, industrial and infrastructure projects requiring serious reach and stability.
The JLG 860SJ diesel telescopic boom lift is engineered for high-reach, high-performance environments. With a working height of 28.21 metres and horizontal outreach of 22.86 metres, it offers exceptional access for complex elevated tasks. The 1.83 metre jib provides 130-degree articulation for flexible positioning, while its 360-degree continuous swing enhances operator efficiency in tight areas.
It features dual platform capacity—230kg unrestricted and 340kg restricted—giving crews the flexibility to bring tools and materials without compromising safety. Full elevation is achieved in under 70 seconds, keeping projects moving at pace.
Backed by hydrostatic four-wheel drive, a Deutz diesel engine and terrain-ready features, the 860SJ performs confidently on uneven ground. Its smart electronic systems reduce fuel use and emissions, supporting cleaner and more efficient operation.
Key Features
This boom lift delivers a platform height of 26.21 metres with an industry-leading 22.86 metres horizontal outreach.
A 1.83 metre articulating jib provides 130-degree motion for over-obstacle positioning.
Dual capacity platform supports up to 340kg (restricted) or 230kg (unrestricted), enhancing material handling flexibility.
Elevation time is under 70 seconds for improved job site productivity.
The 0.91 x 2.44 metre platform includes hydraulic rotation and integrated safety systems.
360-degree continuous swing allows precise lift placement with minimal machine movement.
Includes SkyGuard® SkyLine, motion and tilt alarms, auxiliary power and proportional controls.

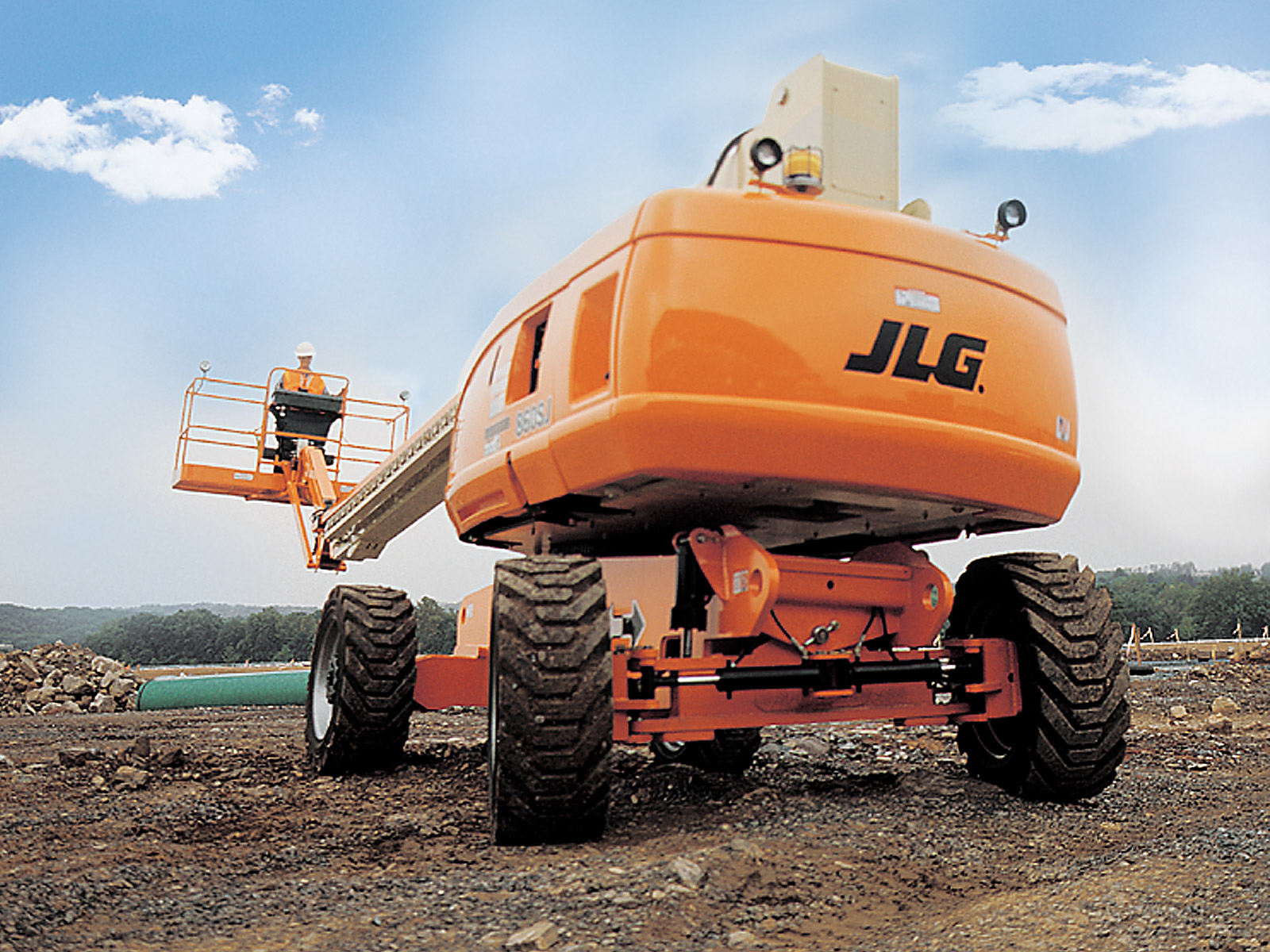

Hydrostatic four-wheel drive, oscillating axle and rugged foam-filled tyres provide stable operation on rough ground.
Smart electronic systems help reduce fuel use and cut operating costs.
Deutz D2011 L04 diesel engine
Fuel Tank Capacity: 117.3 L
Auxiliary Power: 12V DC
Specs
- Platform Height: 26.21 m
- Working Height: 28.21 m
- Horizontal Outreach: 22.86 m
- Up and Over Clearance: 9.78 m
- Platform Capacity: 340 kg (restricted) / 230 kg (unrestricted)
- Platform Size: 0.91 m x 2.44 m
- Jib Length: 1.83 m
- Jib Articulation: 130° (+70 / -60)
- Platform Rotator: 180° hydraulic
- Swing: 360° continuous
- Drive Speed: 5.6 km/h
- Gradeability: 45%
- Turning Radius (Inside): 3.80 m
- Turning Radius (Outside): 6.02 m
- Ground Clearance: 0.28 m
- Dimensions (L x W x H): 12.19 m x 2.49 m x 3.05 m
- Tailswing: 1.42 m
- Tyres: 18-625 foam-filled
- Ground Bearing Pressure: 5.69 kg/cm²
- Fuel Tank Capacity: 117.3 L
- Hydraulic Reservoir Capacity: 235 L
- Machine Weight: 17,200 kg
Purchasing from Swift Equipment will ensure you can take advantage of JLG’s “1 & 5” warranty.
JLG provide warranty coverage on this product for one year and covers all specified major structural components for five years. Due to continuous product improvements, the manufacturer reserves the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
