Merlo P38.13 3.8T Telehandler
$66,000.00 Inc. GST
$60,000.00 Ex. GST
The Merlo P38.13 Telehandler is a 3.8-tonne telehandler with a maximum lift height of 12.6m. Designed for construction, agriculture, and industrial work, it can be used for lifting, loading, moving materials, and handling palletised loads across a wide range of job sites.
The Merlo P38.13 is a versatile telehandler that combines a 3.8-tonne lifting capacity with a maximum lift height of 12.6m. It is suited to jobs that require both reach and lifting capability, making it a common choice on construction sites, farms, warehouses, and industrial facilities.
Its telescopic boom allows operators to place materials at height, while the compact design helps with manoeuvring in tighter work areas. The machine can be fitted with a range of attachments, including pallet forks, buckets, and lifting accessories, allowing it to handle different tasks throughout the day.

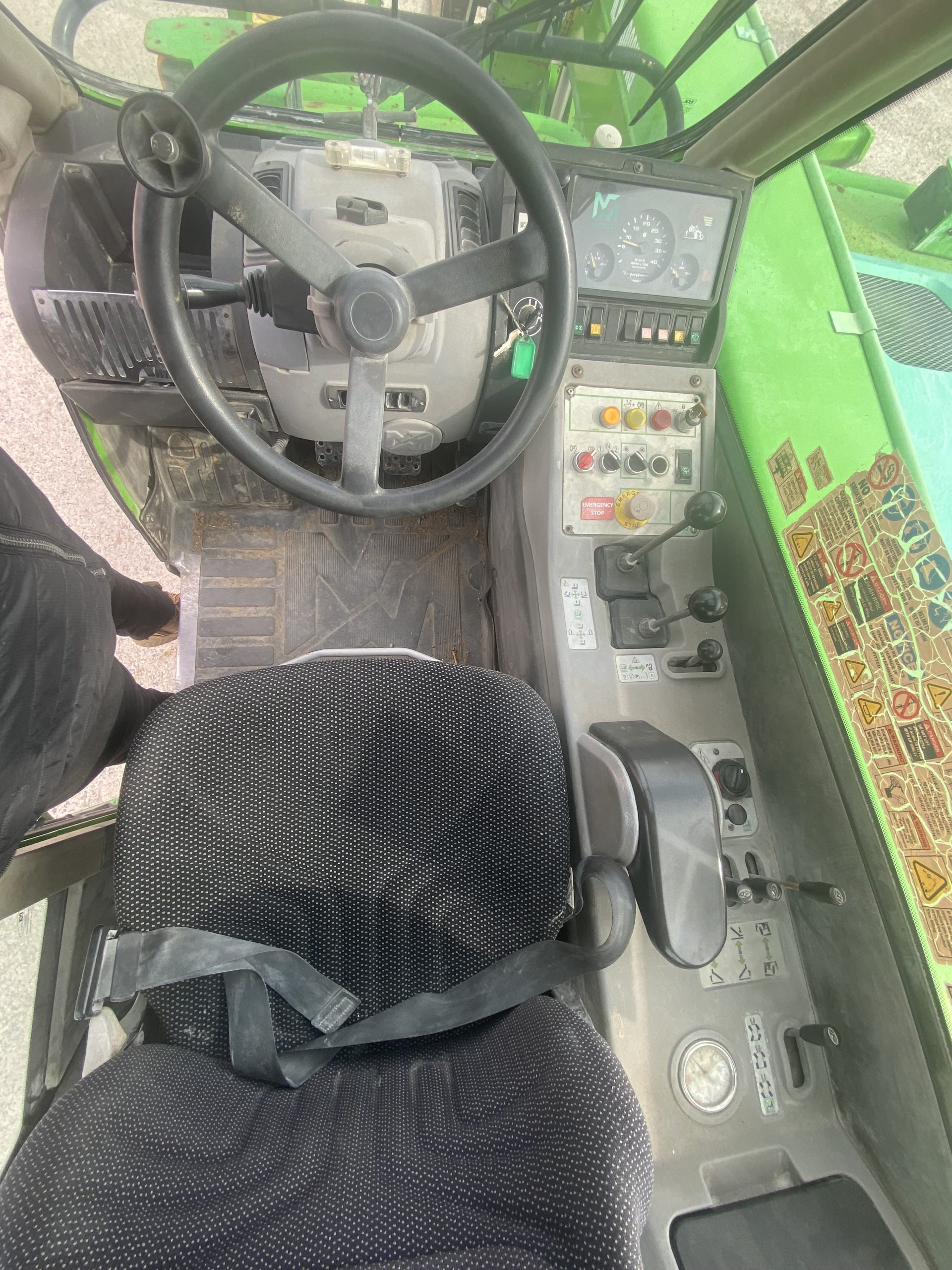

The enclosed cab provides protection from the weather and gives the operator good visibility around the machine and work area. For businesses that need a machine capable of lifting heavy loads and reaching elevated work areas, the Merlo P38.13 provides a practical solution without the complexity of specialised lifting equipment.
Key Features:
- Stability Control System: Monitors the machine’s stability and helps prevent unsafe lifting conditions, giving operators greater confidence and reducing the risk of tip-overs.
- Boom Side Shift: Allows the boom to move sideways without repositioning the entire machine, enabling faster and more precise load placement in confined spaces.
- Permanent 4 Wheel Drive: Delivers constant traction across rough or uneven terrain, ensuring reliable performance on construction and industrial sites.
- Four Wheel Steering: Improves manoeuvrability with a tighter turning radius, making it easier to operate in restricted work areas.
- Hydrostatic Transmission: Provides smooth, responsive speed control without gear shifting, improving driving precision and operator comfort.
- Tac-Lock Attachment Coupling: Enables fast and secure attachment changes from the cab, reducing downtime and increasing versatility across different applications.
- Cab Compliant with ROPS/FOPS Standards: Protects the operator against rollovers and falling objects, helping meet recognised safety standards for demanding worksites.
Engine (make/number of cylinders): Perkins/4
Tier 3 engine power (kW/hp): 74.5/101
Fuel capacity (l): 150
Specs:
Total weight unladen with forks: 8650 kg
Maximum load capacity: 3800 kg
Maximum lift height: 12.6 m
Maximum forward reach: 8.8 m
Lift height at maximum capacity: 6.0 m
Forward reach at maximum load capacity: 1.9 m
Load capacity at maximum height (kg) (stab) 3000
Load capacity at maximum forward reach: 700 kg
Maximum speed: 25 kph
Load-sensing hydraulic pump (bar-l/min): 210-108
Hydraulic oil capacity: 105 L
Electrical circuit: 12 V
No warranty on used machines. Contact Swift Equipment for more details.
