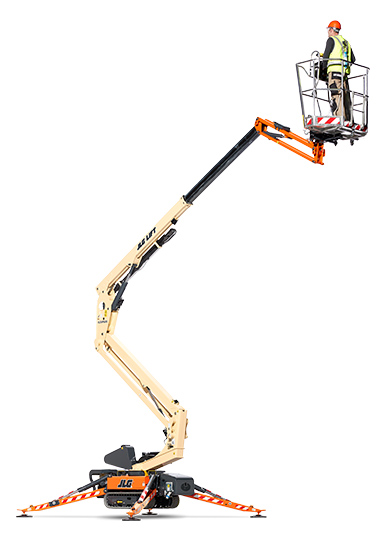

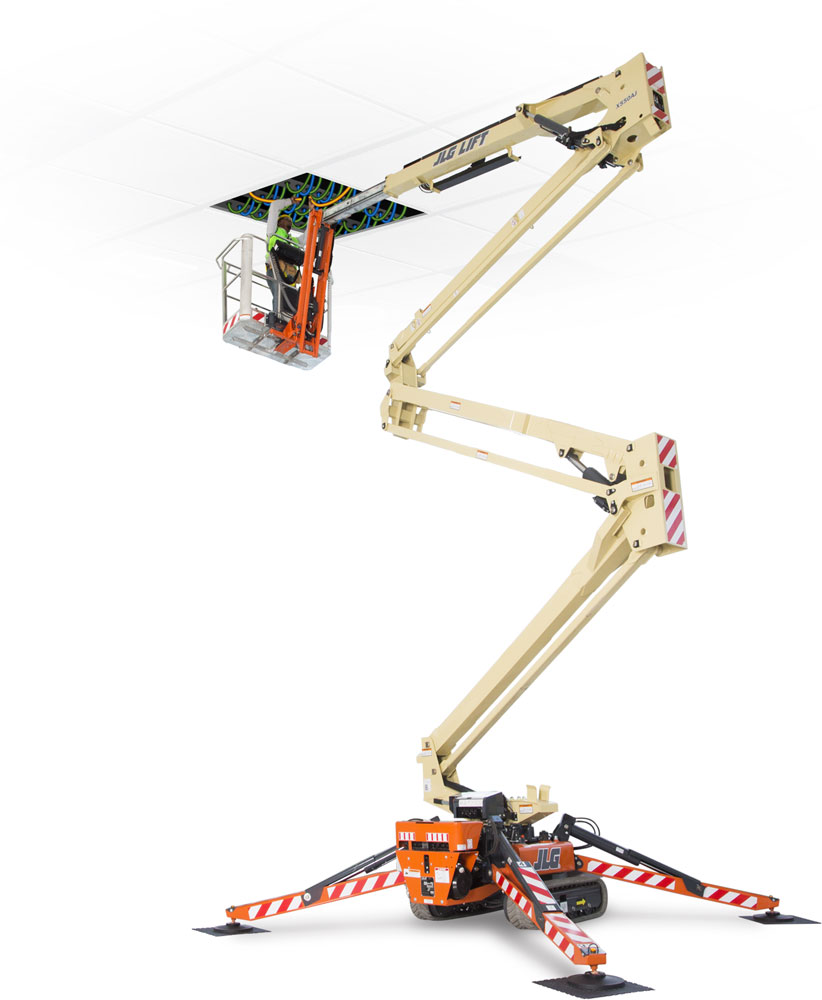

JLG X20J Plus 20m Diesel Compact Crawler Spider Lift
$151,140.00 Inc. GST
$137,400.00 Ex. GST
The JLG X20J Plus is a compact crawler spider lift with a 20.05m working height and a 9.85m outreach. Designed to fit through a standard doorway, it’s ideal for confined, high-access environments. Available in petrol, diesel or full electric power options, it’s perfect for zero-emission or rough terrain projects.
The JLG X20J Plus offers high-spec performance in a compact spider lift format. Delivering a 20.05 metre working height, 9.85 metre outreach, and up-and-over clearance of 8.20 metres, it provides outstanding access while maintaining a stowed width of just 0.79 metres.
This Hinowa-manufactured spider lift is engineered for both indoor and outdoor use, with non-marking rubber tracks and ultra-low ground pressure. It’s available in three power configurations: petrol/electric, diesel/electric, or fully electric with a lithium battery pack, offering the flexibility to suit every worksite requirement.
Equipped with SkyGuard®, proportional controls, a 124° powered platform rotator and full remote control drive and stabilisation, the X20J Plus maximises operator control and safety. With Australian-wide support and servicing, it’s a premium solution for high-reach work in tight or sensitive environments.
Key Features
This spider lift delivers a 20.05 metre working height and nearly 10 metres of horizontal outreach.
The stowed undercarriage retracts to just 0.79 metres wide, allowing passage through standard doorways.
A 1.24 metre articulating jib with 124° rotation provides enhanced manoeuvrability in confined work zones.
The platform supports 230 kg and includes slide-bar rear entry, footswitch and powered rotation.
SkyGuard® comes standard with load sensing, out-of-level cut-outs and platform position sensors.
Operators benefit from full proportional electro-hydraulic controls and remote control for drive and set-up.
Stability and low ground pressure are ensured via non-marking rubber tracks and auto-level outriggers.
Standard features include an air line to the platform, emergency descent systems, and forklift pockets.
Power Source Options
Option 1: Petrol + Electric Motor
- Honda Petrol Engine iGX440 11 kW
- AC Electric Motor 230V, 50 Hz, 2.2 kW
Option 2: Diesel + Electric Motor
- Perkins Diesel Engine 1.2kW, 14 hp
- AC Electric Motor 230V, 50 Hz, 2.2 kW
Option 3: Full Electric with Battery Pack
- Battery 100 AH, 72V Electric engine with lithium battery package, including battery charger
Specs
- Working Height: 20.05 m
- Platform Height: 18.05 m
- Outreach: 9.85 m
- Up and Over Clearance: 8.20 m
- Jib Length: 1.68 m
- Jib Articulation Range: +/- 89°
- Platform Size: 0.69 m x 1.34 m
- Platform Capacity: 230 kg
- Swing: 360° non-continuous
- Stowed Width: 1.48 m
- Undercarriage Width (Retracted/Extended): 0.79 m / 1.09 m
- Gradeability: 28%
- Max Operating Slope: 16°
- Max Approach/Depart Angle: 20°
- Machine Weight: 2,840 kg
Purchasing from Swift Equipment will ensure you can take advantage of JLG’s “1 & 5” warranty.
JLG provide warranty coverage on this product for one year and covers all specified major structural components for five years. Due to continuous product improvements, the manufacturer reserves the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
