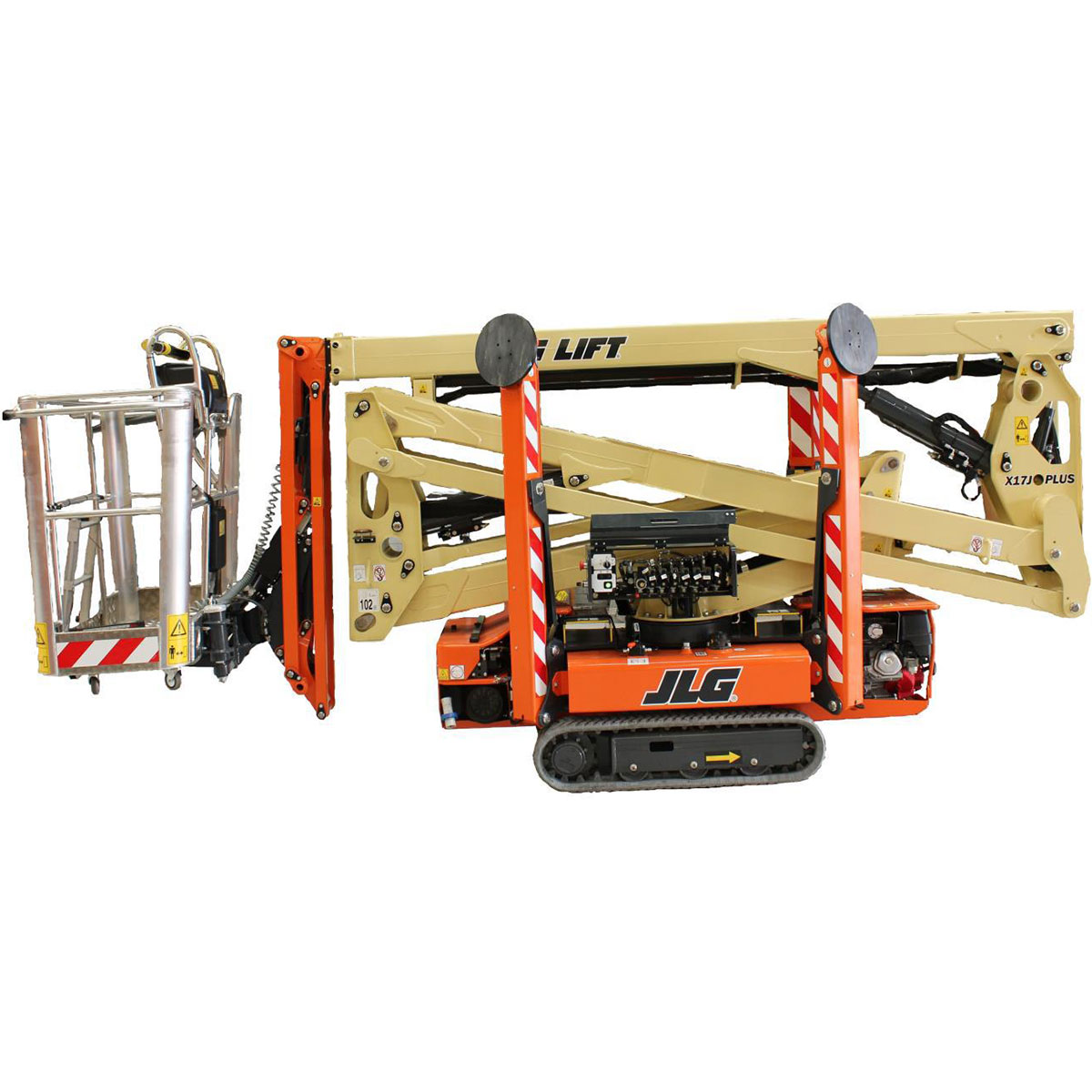

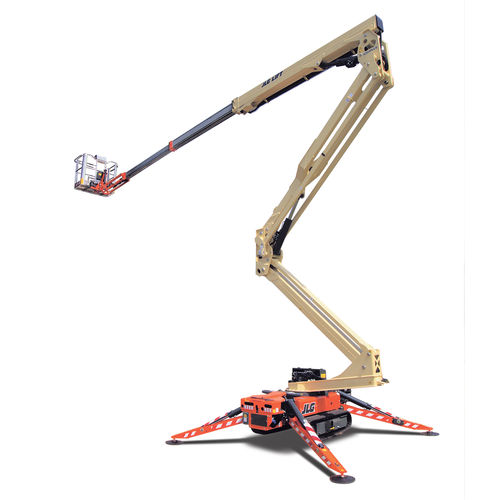

JLG X17J 17m Plus Diesel Compact Crawler Spider Lift
$130,020.00 Inc. GST
$118,200.00 Ex. GST
The JLG X17J Plus Diesel spider lift delivers a 17m working height and 7.65m outreach in a compact, low-profile crawler frame. With bi-energy power (diesel + 240V electric motor) and a stowed width of 0.79m, it’s ideal for confined indoor and rugged outdoor access.
The JLG X17J Plus Diesel is a compact, tracked spider lift engineered for access in tight or restricted areas. With a 16.96 metre working height and a 7.65 metre outreach, this Hinowa-built machine combines full proportional control, SkyGuard® safety, and a 1.24 metre articulating jib for precise operation.
Bi-energy functionality allows the machine to run on a 10 hp Hatz diesel engine or switch to the 230V electric motor for zero-emission work indoors. Its retractable undercarriage allows entry through standard doorways, while non-marking tracks and low ground pressure make it safe for sensitive flooring.
This lift is supported by JLG’s national service network and comes with Australia-wide parts availability. A full electric model with a lithium battery is also available for environmentally restricted zones.
Key Features
This spider lift delivers a 16.96 metre working height and 7.65 metre outreach in a compact design.
The platform supports 230 kg and features rear slide-bar entry, proportional controls, and powered rotation.
A 1.68 metre articulating jib with 124° range enables fine positioning at height.
Bi-energy operation supports both diesel and electric power for indoor/outdoor flexibility.
SkyGuard®, tilt cut-outs, load-sensing, and emergency descent systems enhance safety and compliance.
The undercarriage retracts to 0.79 metres, allowing access through standard doorways.
Full remote control operation enables easy stabilisation and driving from a safe distance.
The machine includes forklift pockets, outrigger pads, and cylinder protection as standard.
Power Source Options
Diesel + Electric: Hatz 1B40 7.5 kW (10 hp) engine with 230V AC electric motor
(Alternative petrol and full electric versions available)
Specs
- Working Height: 16.96 m
- Platform Height: 14.96 m
- Outreach: 7.65 m
- Up and Over Clearance: 7.80 m
- Platform Capacity: 230 kg
- Platform Size: 0.69 m x 1.34 m
- Jib Length: 1.68 m
- Jib Articulation Range: +/- 89°
- Swing: 360° non-continuous
- Stowed Width: 1.48 m
- Undercarriage Width (Retracted/Extended): 0.79 m / 1.09 m
- Gradeability: 28%
- Max Operating Slope: 16°
- Max Approach/Depart Angle: 20°
- Machine Weight: 2,230 kg
Purchasing from Swift Equipment will ensure you can take advantage of JLG’s “1 & 5” warranty.
JLG provide warranty coverage on this product for one year and covers all specified major structural components for five years. Due to continuous product improvements, the manufacturer reserves the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
