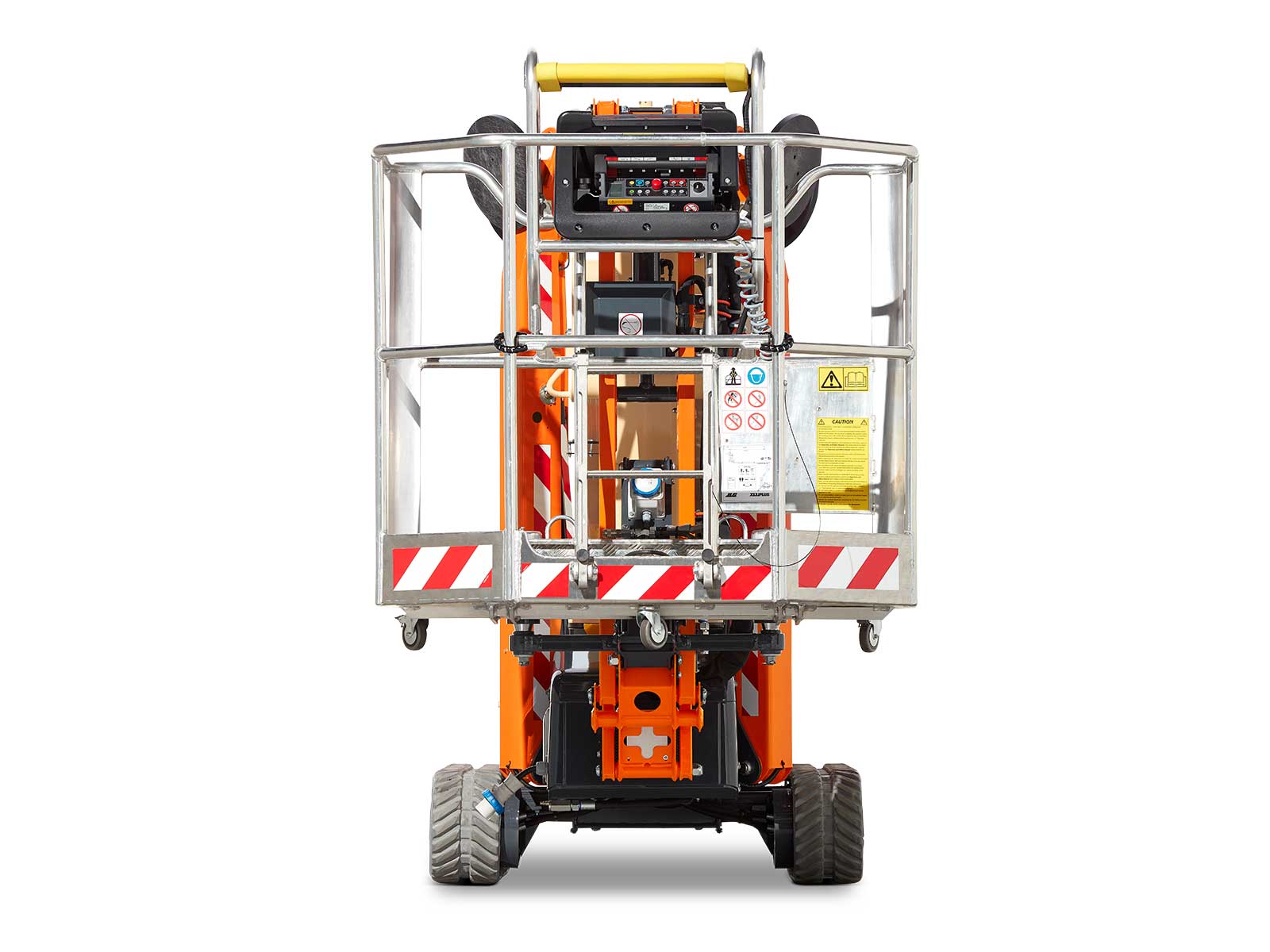

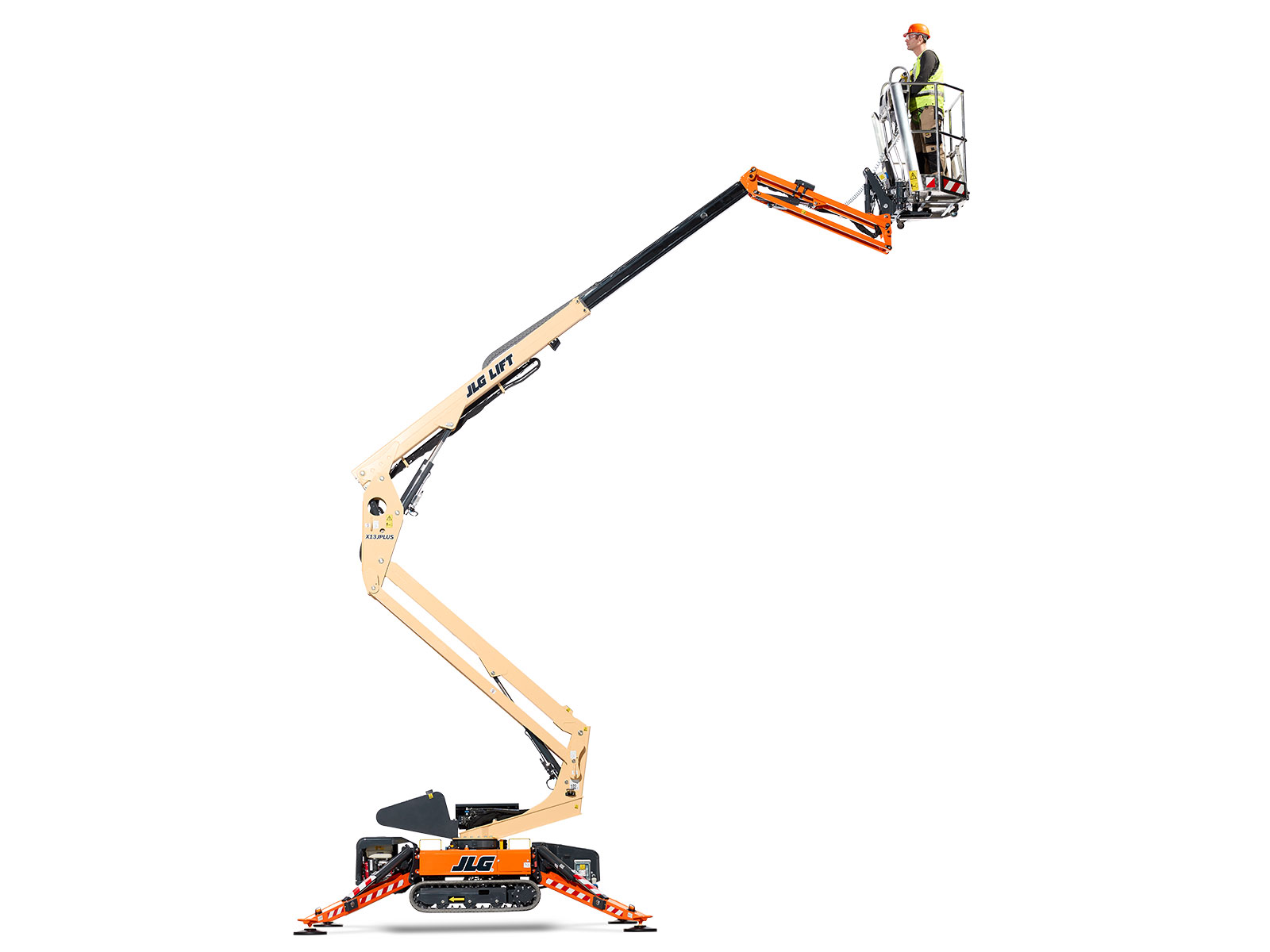

JLG X13J 13m Plus Diesel Compact Crawler Spider Lift
$104,995.00 Inc. GST
$95,450.00 Ex. GST
Key Specs
- Platform Height: 11.30 m / 37.1 ft
- Machine Width: 0.78 m / 2.6 ft
- Platform Capacity: 230 kg / 507.1 lb
Key Features
- Minimal emissions and noise pollution.
- Reduce your set-up time with auto-levelling outriggers.
- Equipped with track drive for easy manoeuvrability in sensitive environments.
- Low weight for ease of transportation and operation in weight restricted areas.
Key Specs
- Platform Height: 11.30 m / 37.1 ft
- Machine Width: 0.78 m / 2.6 ft
- Platform Capacity: 230 kg / 507.1 lb
Key Features
- Minimal emissions and noise pollution.
- Reduce your set-up time with auto-levelling outriggers.
- Equipped with track drive for easy manoeuvrability in sensitive environments.
- Low weight for ease of transportation and operation in weight restricted areas.
Standard Features
- 0.69 m x 1.34 m Aluminium 2 person platform
- SkyGuard Slide bar rear entry
- Footswitch
- Full proportional control
- Articulating jib
- Remote Control (via cable to platform)
- Full Remote Control of drive and
- stabilization
- Multi-lingual LCD display on platform console
- Platform console position sensor and lock
- Envelope management load sensing system
- Platform designed for ease of removal/ changeover
- Engine protection
- Rubber Outrigger Pads
- Cylinder Rod Protection on Outriggers
- Automatic cut-out when out of level
- Powered track extensions/’retraction
- Turntable alignment sensor and gauge
- Emergency descent systems
- Electro-hydraulic controls
- Full pressure hydraulic controls
- Lifting/Tie down points
- Forklift pockets
- AS/NZS 1418.10 Compliance
Performance Data
- Working Height 13.30m
- Platform Height 11.30 m
- Working Outreach 7.08 m
- Up & Over Height 4.90 m
- Swing (non continuous) 360°
- Jib – overall length 1.68 m
- Jib – range of articulation (+/-) 89° (+0/-89° )
- Platform Capacity 230 kg unrestricted
- Platform size 0.60 m x 1.31 m
- Basket Rotation 124° (+/- 62°)
- Stowed width 1.31 m
- Machine weight 1 2,185 kg
- Gradeability 28%
- Maximum operating slope 16°
- Max. Approach / Depart angles Front 20° / Rear 23°
- Width of Undercarriage (Retracted/Extended) 0.75 m / 1.10 m
Machine Dimensions
- Stowed width (without platform) 0.79 m
- Stowed height (on tracks) 1.99 m
- Stowed length (on tracks) with basket 3.90 m
- Stowed length (on tracks) without basket 3.28 m
- Outrigger footprint 2.80 x 2.80 m
Purchasing a JLG machine from Swift Equipment will ensure you can take advantage of JLG’s comprehensive warranty. JLG provide full warranty coverage on this model for one year and cover all specified major structural components for five years. Due to continuous product improvements, the manufacturer reserves the right to make specification and/or equipment changes without prior notification. See our full warranty policy here.
