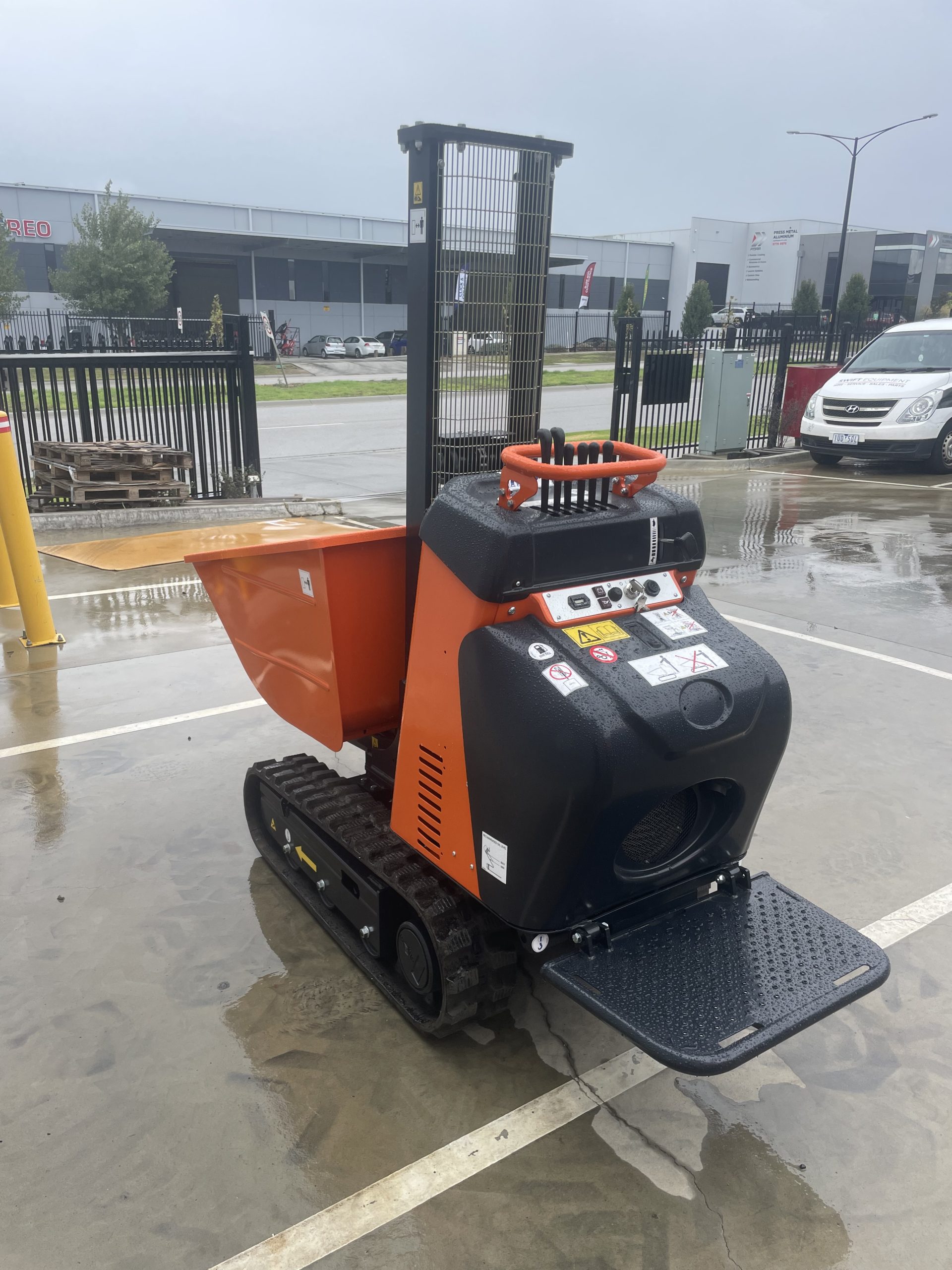

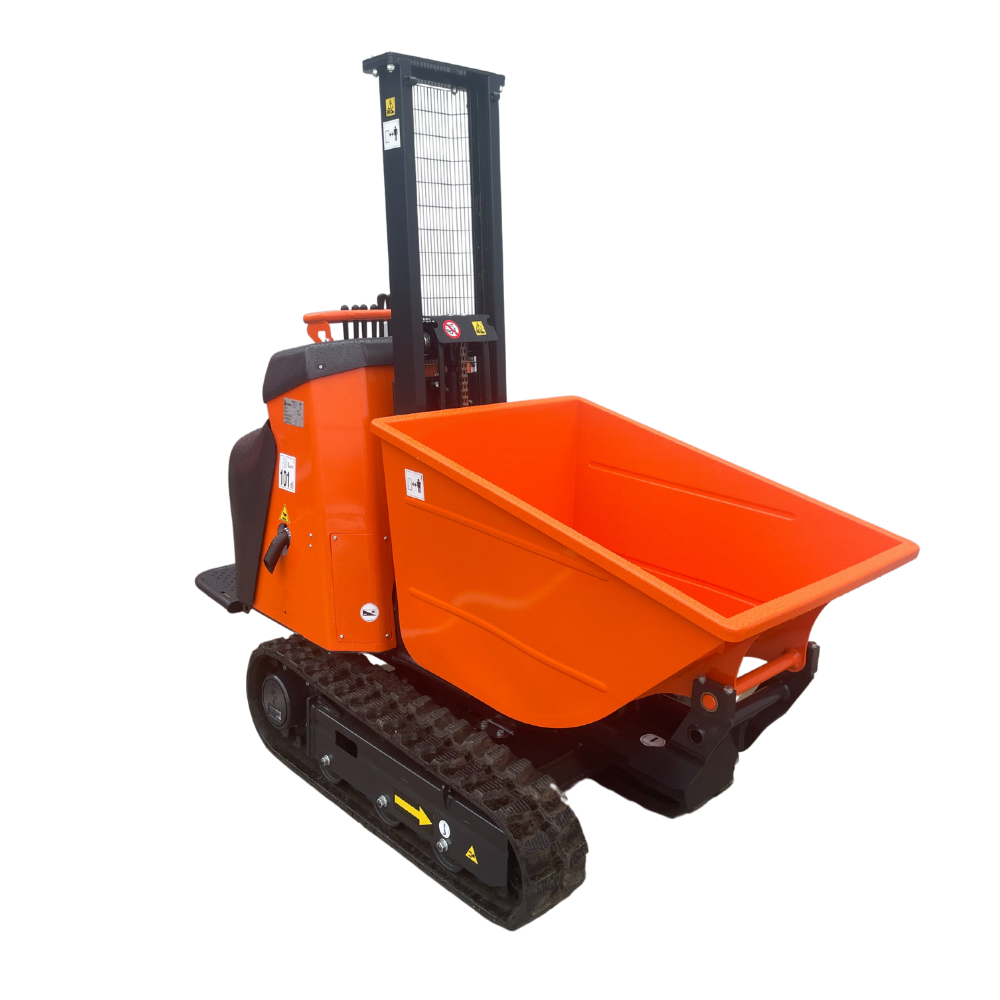

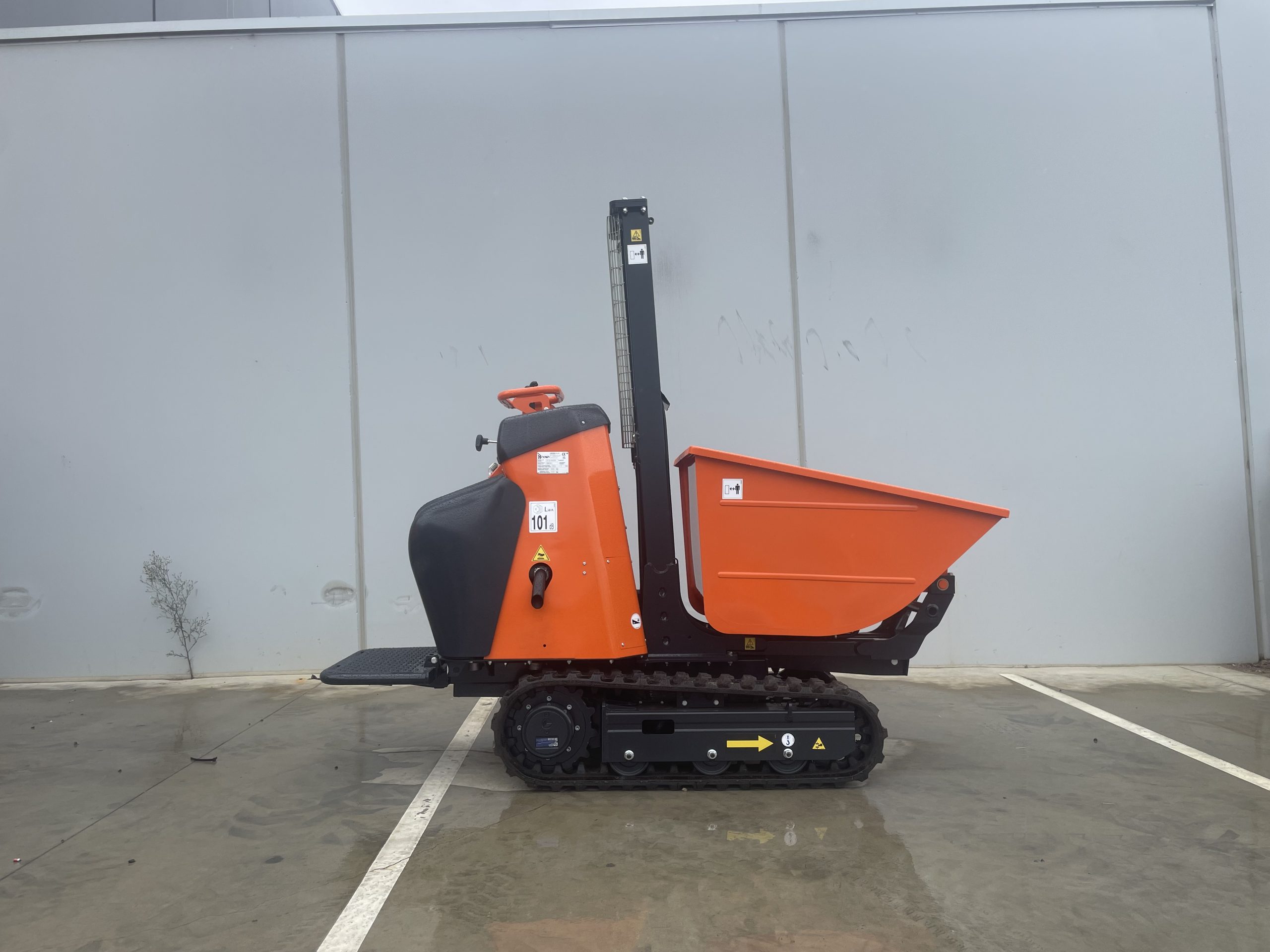

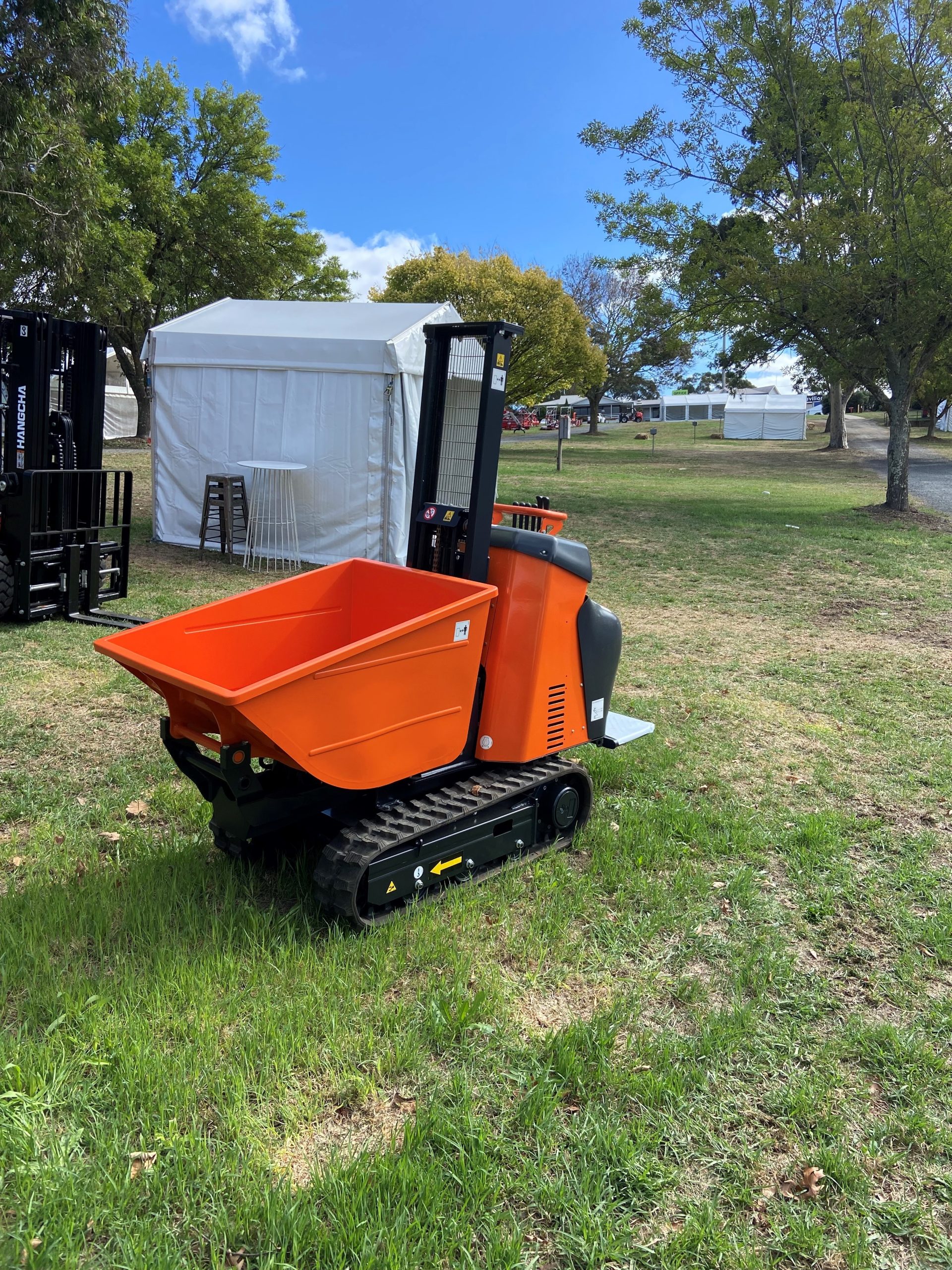

JLG TD1500H Mini Dumper (Diesel Engine)
$30,360.00 Inc. GST
$27,600.00 Ex. GST
The JLG TD1500H Mini Dumper with Diesel Engine is a compact, tracked earthmoving dumper with a 460 kg load capacity and 1.6 m tipping height. Built for traction and stability on uneven, muddy, or sloped terrain, it is ideal for construction, landscaping, demolition, tunnels, and agricultural work.
The JLG TD1500H Mini Dumper (Diesel Engine) is part of the TD Series of tracked dumpers designed for demanding material handling in sites where wheeled machines struggle for grip. Its robust track system provides excellent gradeability across rough ground, and the diesel‑powered engine delivers strong, reliable performance with electric start convenience.
With a load capacity of 460 kg and a high tipping height, the TD1500H effectively moves materials through constricted or uneven environments such as job site trenches, gardens, demolitions, or renovation zones. Engineered, tested and built to JLG’s high quality standards, it meets or exceeds AS/NZS 1418.10 2011 safety requirements for Australian workplaces.
Key Features
- 460 kg load capacity with a 1.6 m tipping height for efficient earthmoving and material transfer.
- Tracked undercarriage provides superior traction and stability on muddy, sloping, or uneven surfaces.
- Compact footprint makes it ideal for use in narrow, confined or tight spaces.
- Diesel‑powered Kubota OC95 single‑cylinder engine delivers 9.4 HP for reliable site performance.
- Electric start system for quick and convenient engine engagement.
- Translation speeds from 2.2 to 3.3 km/h support controlled movement across varying terrain.
- Handles inclines up to 15° with the dumper bed lowered for on‑grade productivity.
- Built for durability and versatility across construction, landscaping, demolition, agriculture, and internal works like tunnels.
Diesel engine – Kubota OC95, single‑cylinder, with electric start
Specs
- Capacity: 460 kg

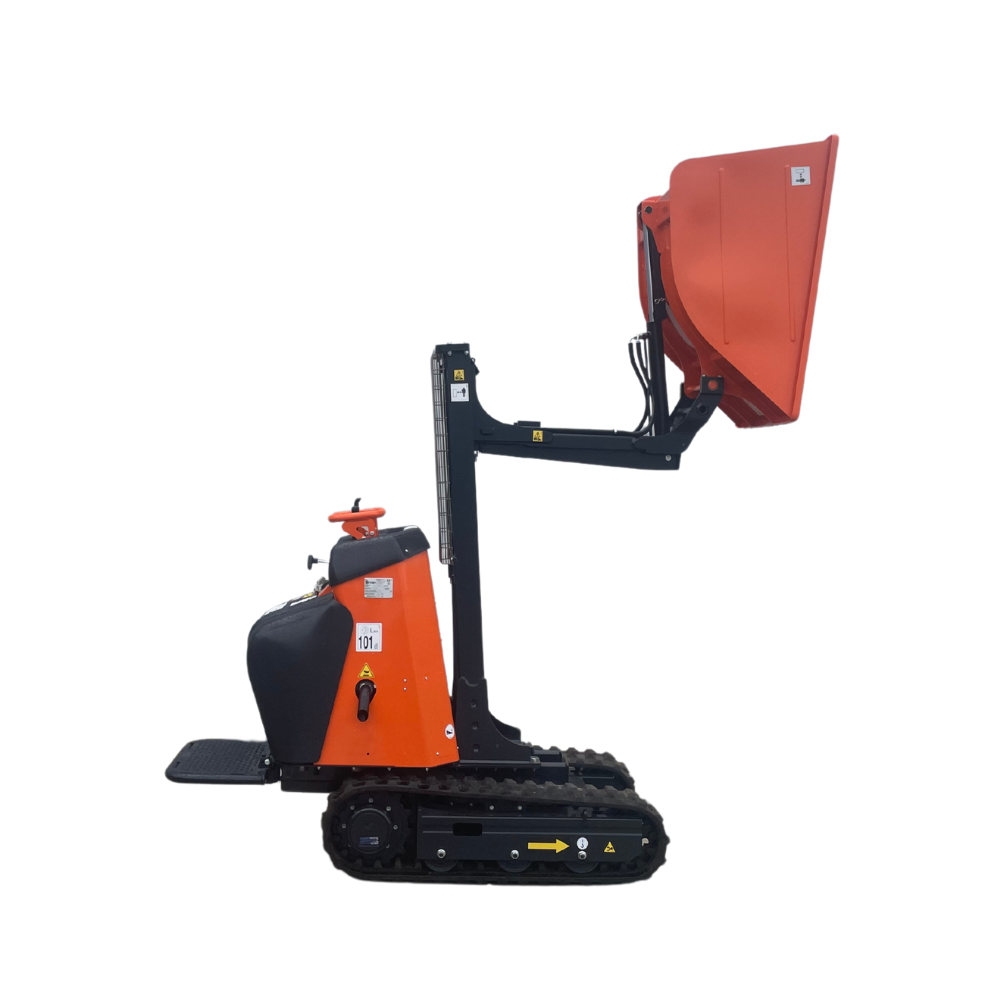

- Tipping Height: 1.6 m
- Translation Speed: 2.2–3.3 km/h
- Max Inclination (Dumper Bed Lowered): 15°
- Engine Brand: Kubota
- Engine Type: OC95
- Pistons / Displacement: Single‑cylinder, 416 cc
- Max Gross Power: 9.4 HP (7 kW) @ 3,600 rpm
- Starting: Electric
- Fuel Tank Capacity: 5.5 L
- Noise Level (LWA): 101 dB
- Weight (Without Operator): 980 kg
JLG’s exclusive “1 & 5” Warranty applies:
– 1 year full coverage on this machine
– 5 years coverage on all specified major structural components
This product meets or exceeds AS/NZS 1418.10 2011 as originally manufactured. Specifications are subject to change without notice due to ongoing product improvements.
