JLG RT3369 33ft/10m All Terrain Scissor Lift

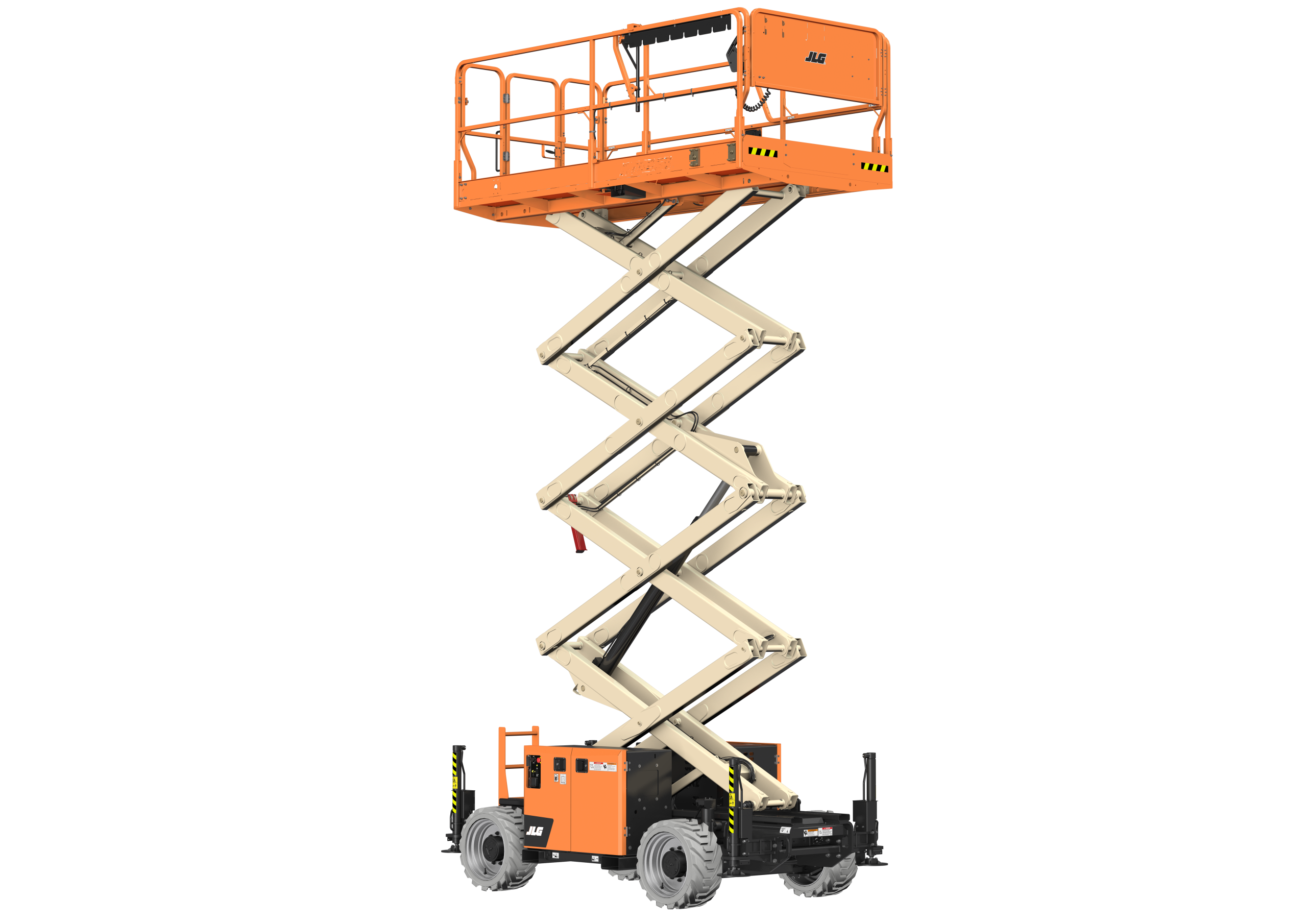

JLG RT3369 33ft/10m All Terrain Scissor Lift - Image 2

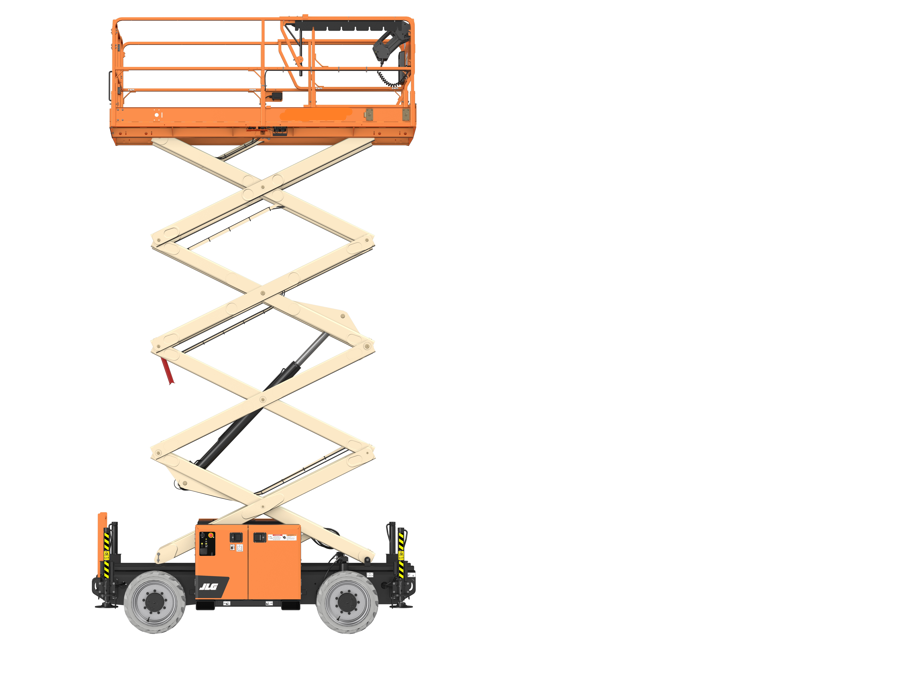

JLG RT3369 33ft/10m All Terrain Scissor Lift - Image 3

JLG RT3369 33ft/10m All Terrain Scissor Lift

$84,755.00 Inc. GST

$77,050.00 Ex. GST

The JLG RT3369 is a rough terrain scissor lift built for outdoor worksites where extra ground clearance and stability are needed. Its 10m working height and all-terrain capability are suited to various construction, maintenance, and infrastructure projects.

SKU: 3369RT

The JLG RT3369 is made for demanding job sites where standard electric scissor lifts may struggle. Its rough terrain design allows it to handle tough, uneven ground, a great option for outdoor construction and maintenance work.

With a platform height of 33ft (10m working height), it provides access to elevated work areas while offering the larger platform space often required for tools, materials, and multiple operators. This can help teams complete tasks quicker and more efficiently, especially when working at height.

The machine is built with site productivity in mind, combining reach, stability, and off-road capability. Whether used for building projects, civil works, or facility maintenance, the RT3369 is a practical access solution for businesses that regularly work in challenging outdoor conditions.

Key Features:

  • Hydraulic Levelling Jacks (Auto Level): The automatic levelling system helps keep the platform stable and properly positioned, giving operators greater confidence when working at height.
  • 4WD + Full-Time Traction Control: The combination provides strong traction and mobility across rough or uneven ground.
  • Oscillating Front Axle: Improves ride quality, traction, and stability, making it easier and more predictable to maneuver over rough terrain.
  • Proportional Lift and Drive: Allows the operator to precisely control lifting and driving speeds rather than simply operating at fixed speeds.
  • Pin-Based Load Sensing System: Helps monitor the load on the machine and supports safe operation by detecting platform load conditions.
  • Platform Control Box with LCD Display: Puts essential machine information and controls directly in front of the operator while adding practical features for modern worksites.
  • Self-Closing, Self-Locking Gate: The gate automatically closes and locks behind the operator, reducing the chance of the platform being left unsecured and helping maintain a safer working environment at height.
  • All Motion Alarm + Descent Alarm: Provides audible warnings when the machine is moving or lowering, improving awareness for both the operator and people working around the lift.

Diesel Engine: Kubota D1305-E4B-J 24.8 hp (18.5 kw)
Fuel Tank Capacity: 38 L
Drive: 4WD Hydrostatic

Specs:
Platform Height (Elevated): 10m
Overall Height (Rails Up): 2.61 m
Overall Height (Rails Folded): 2.05 m
Platform Capacity: 454kg
No. Occupants (Indoor/Outdoor): 4/2
Lift/Lower Time: 42/33 seconds
Maximum Drive Height: Full Height
Drive Speed: Lowered 5.6 km/h
Drive Speed: Elevated 0.8 km/h
Gradeability: 35%
Turning Radius (Inside): 2 m
Turning Radius (Outside): 4 m
Tyre size (non-marking): 26 x 12, Foam Filled
Hydraulic Reservoir: 50 L

The JLG “1 & 5” Warranty. JLG Industries, Inc. backs its products with its exclusive “1 & 5” Warranty.

We provide coverage on all products for one (1) full year and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification.

This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
