JLG H340AJ 34ft Electric Hybrid Articulating Boom Lift

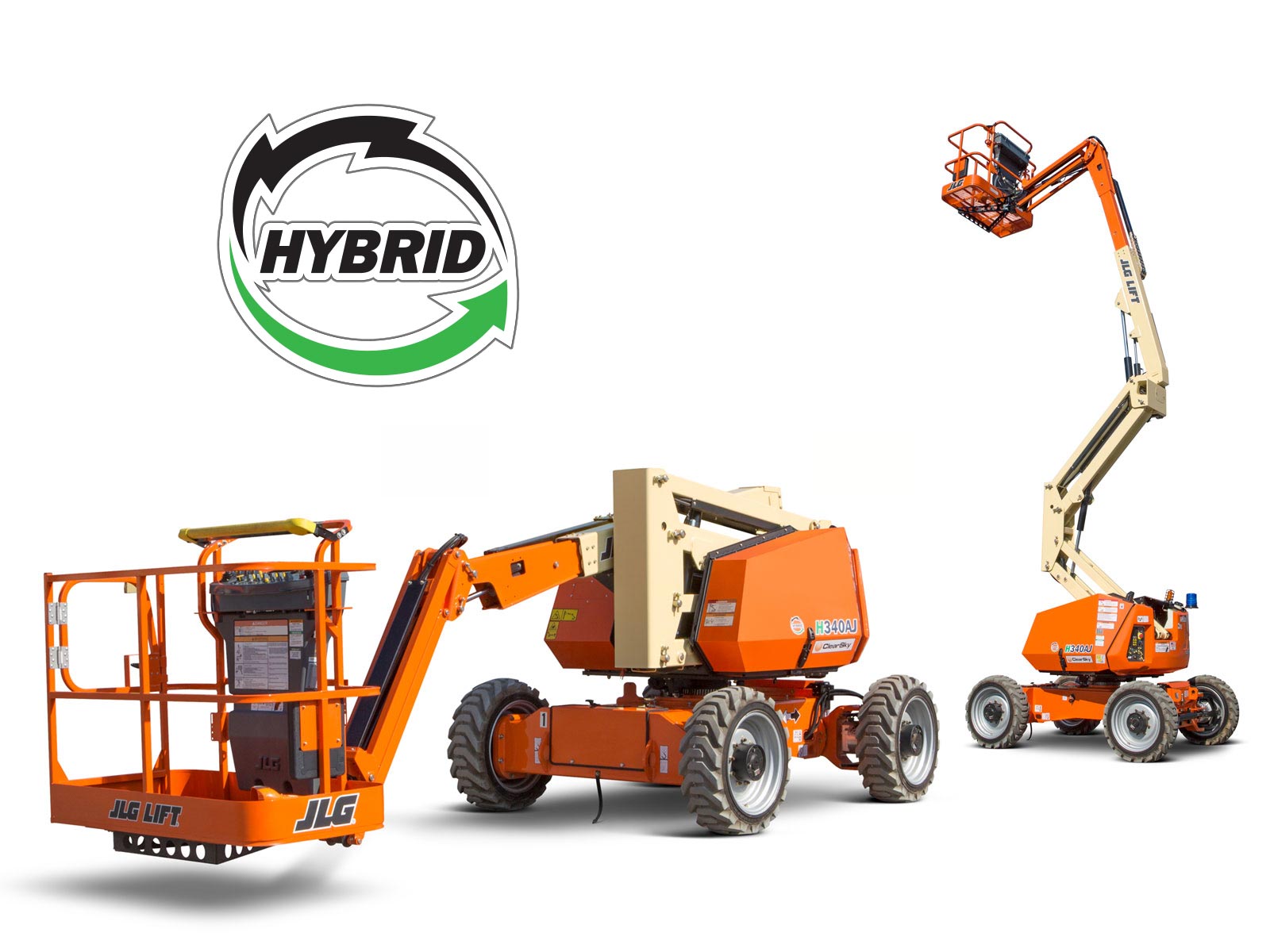

JLG H340AJ 34ft Electric Hybrid Articulating Boom Lift - Image 2

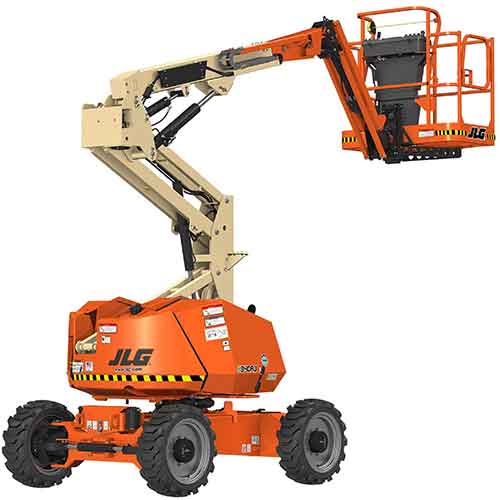

JLG H340AJ 34ft Electric Hybrid Articulating Boom Lift - Image 3

JLG H340AJ 34ft Electric Hybrid Articulating Boom Lift

Original price was: $134,893.00.Current price is: $99,935.00. Inc. GST

26% Off

$90,850.00 Ex. GST

The JLG H340AJ 10.28 metre Hybrid Articulating Boom Lift delivers dependable height access with outstanding efficiency. Its hybrid engine reduces fuel use and emissions, giving operators a quieter, cleaner and more cost effective solution without sacrificing power. Designed for tight and challenging spaces, it offers smooth articulation, impressive manoeuvrability, and reliable performance on both indoor and outdoor worksites.

SKU: H340AJ

The JLG H340AJ 34 ft Electric Hybrid Articulating Boom Lift is designed for operators who want reliable performance with a lighter environmental footprint. Its hybrid system pairs a compact diesel engine with a direct electric drive, significantly reducing fuel use, noise and emissions. This makes it a practical choice for indoor and outdoor worksites where sustainability, reduced disturbance and operational efficiency are priorities.

Built for capability, the H340AJ delivers strong terrainability through its four independent drive motors, offering true four‑wheel drive performance that rivals traditional diesel models. The articulating jib provides excellent access to hard‑to‑reach areas, helping operators work more efficiently around obstacles, buildings and overhead structures.

Key Features

  • 1.22 m articulating jib improves reach and allows better positioning around obstacles.
  • 355° non-continuous swing reduces the need to reposition the machine, saving time on the jobsite.
  • 180° hydraulic platform rotator allows precise platform alignment when working at height.
  • Proportional controls ensure smooth, accurate, and safer machine operation.
  • The oscillating axle enhances stability when operating on uneven surfaces.
  • 4° tilt alarm and indicator warn operators before unsafe operating angles are reached.
  • Electric hybrid power system provides quiet, low-emission operation with extended runtime.
  • All-motion alarm and flashing amber beacon improve jobsite awareness and overall safety.

Diesel Engine
Kubota Z482 8.3 kW
Fuel Tank Capacity 49.2 L
Batteries 8 x 12V 100 AH

Specs:

  • Platform Height: 10.28 m
  • Working Height: 12.28m
  • Horizontal Outreach: 6.06 m
  • Up and Over Height: 5.17 m
  • Swing: 355 Degrees Non-Continuous
  • Platform Capacity: 230 kg
  • Platform Size 0.76 x 1.52 m
  • Platform Rotator: 180 Degrees Hydraulic
  • Jib: 1.22 m
  • Weight: 4,675 kg
  • Drive Speed: 5 km/hr
  • Gradeability: 45%
  • Turning Radius
  • Inside 1.52 m
  • Outside 3.96 m

JLG’s exclusive “1 & 5” Warranty applies:
– 1 year full coverage on this machine
– 5 years coverage on all specified major structural components

This product meets or exceeds AS/NZS 1418.10 2011 as originally manufactured. Specifications are subject to change without notice due to ongoing product improvements.
