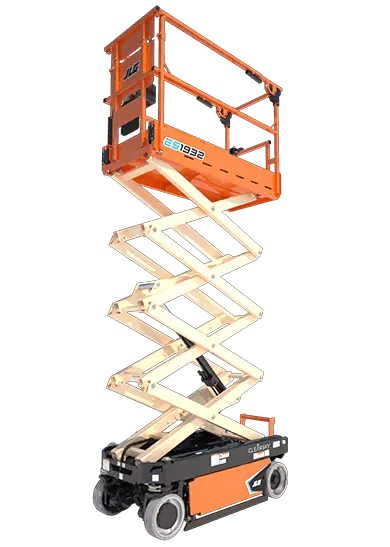

JLG ES1932 19ft Electric Scissor Lift
$19,228.00 Inc. GST
$17,480.00 Ex. GST
The JLG ES1932 Electric Scissor Lift is a compact electric access platform designed for indoor work at heights of up to 5.8m. Its narrow width and zero-emission electric drive make it well-suited to warehouses, commercial buildings, maintenance work, and fit-out projects where space is limited.
The JLG ES1932 is a 19ft electric scissor lift built for indoor access tasks that require a combination of working height, manoeuvrability, and a compact footprint. With a narrow chassis, it can travel through standard doorways and operate in tight aisles, corridors, and congested work areas.
The electric drive system produces no exhaust emissions and operates with less noise than diesel-powered equipment, making it suitable for enclosed environments such as warehouses, shopping centres, schools, hospitals, and office buildings.
A sliding platform extension provides additional reach when working near walls, shelving, or fixed equipment. The platform offers enough room for operators, tools, and materials needed for day-to-day maintenance and installation work.
Key Features:
- DC Electric Drive: Delivers quiet, efficient operation with lower maintenance and longer battery life.
- Proportional Controls: Provide smooth, precise lift and drive movements for improved operator control and accurate positioning.
- Active Pothole Protection System: Enhances machine stability by reducing the risk of tipping when travelling over uneven surfaces.
- Load Sensing System: Monitors platform weight to prevent overloading, improving operator safety and protecting the machine.
- Foot-Actuated Deck Extension: Extends the platform to reach over obstacles without repositioning the lift, increasing productivity.
- Battery Condition Indicator: Displays battery charge status so operators can maximise runtime and avoid unexpected downtime.
Batteries: 4 x 6V 220 amp-hr
Charger: 27 amp
Drive: 24V Electric Front Wheel
Specs:
Platform Height: 5.80 m
Platform Capacity: 230 kg
Capacity on Platform Extension: 120 kg
Occupants (Indoor/ Outdoor): 2 /1
Lift/Lower Time: 22/24 Seconds
Maximum Drive Height: Full Height
Weight: 1550 kg
Ground Bearing Pressure: 8.0 kg/cm2
Drive Speed–Elevated: 0.8 km/h
Drive Speed–Lowered: 4.8 km/h
Gradeability: 25%
Turning Radius (Inside): Zero
Turning Radius (Outside): 1.7 m
The JLG “2 & 5” Warranty
JLG Industries, Inc. backs its products with its exclusive “2 & 5” Warranty. We provide coverage on all products for two (2) full years and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/ or equipment changes without prior notification.
This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
