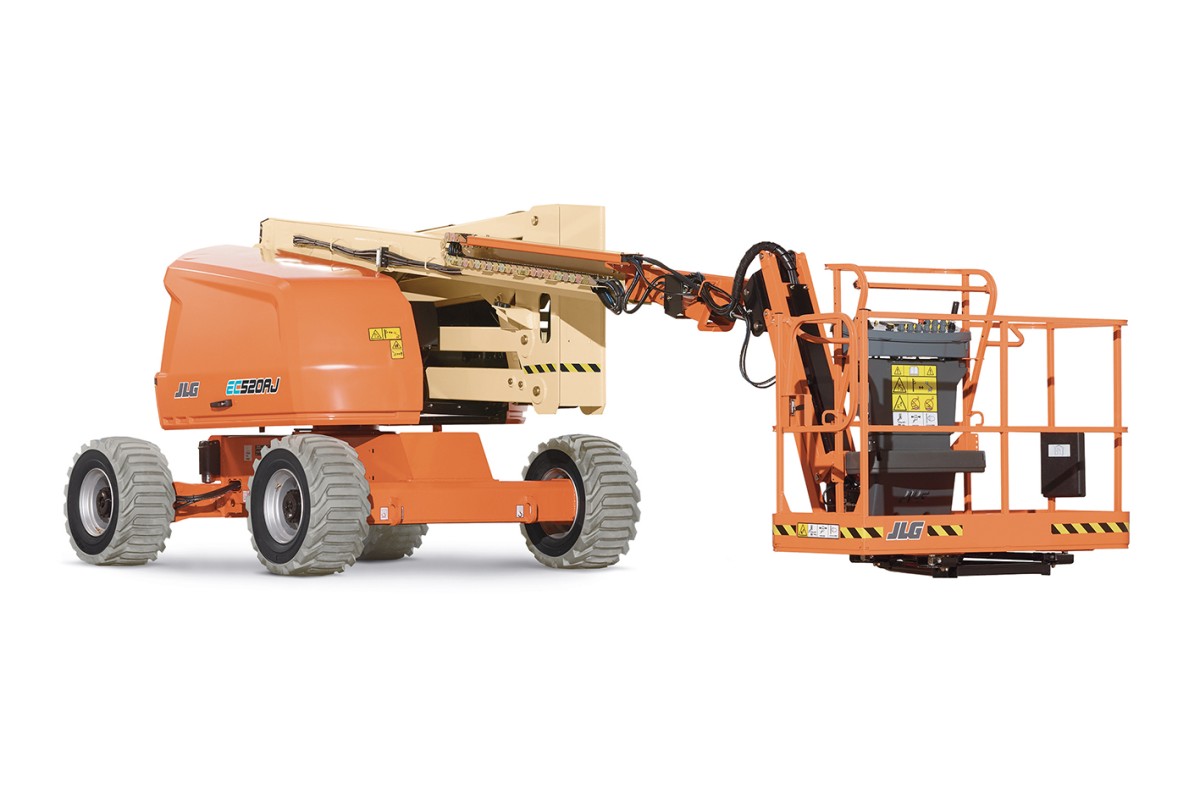

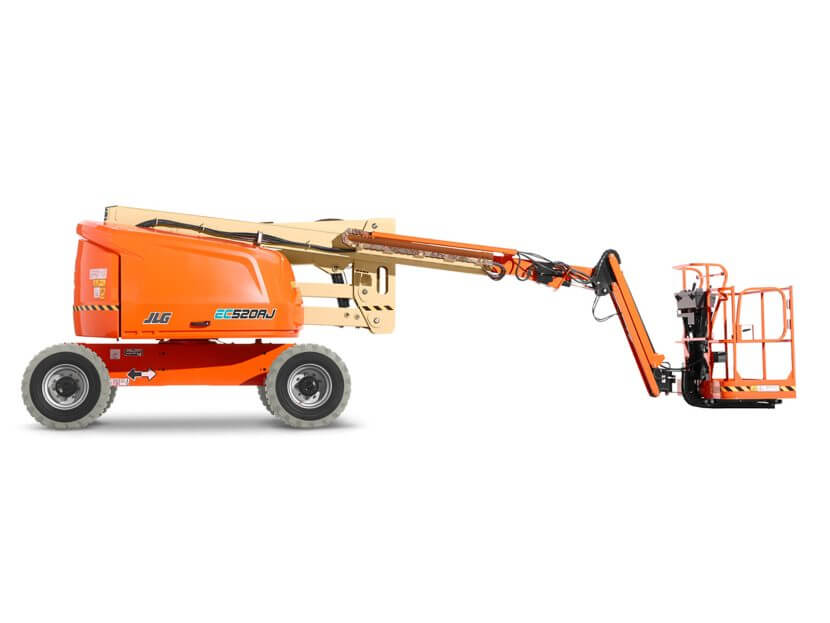

JLG EC520AJ 52ft Electric Articulating Boom Lift
Original price was: $152,834.00.$107,525.00Current price is: $107,525.00. Inc. GST
30% Off
$97,750.00 Ex. GST
The JLG EC520AJ is a 52‑ft electric articulating boom lift engineered for quiet, efficient, and precise operation. It offers smooth proportional controls, multi‑function capability, and smart load‑sensing technology, making it ideal for indoor and environmentally sensitive worksites where accuracy, safety, and low emissions matter.
The JLG EC520AJ 52ft Electric Articulating Boom Lift delivers clean, reliable performance with the flexibility needed for a wide range of elevated tasks. This lift is suitable for indoor and outdoor environments, offering dependable operator-friendly solutions for facility maintenance, construction, installation work, and more.
Its full proportional joystick provides smooth, accurate maneuvering, while multi‑function operation allows operators to manage lift and drive actions simultaneously for improved productivity. A selectable creep mode enhances control in tight or obstacle‑heavy spaces, making it safer to work near structures or sensitive equipment.
Key Features:
– Multiple-function operation allows smooth, simultaneous control of different lift and drive functions, improving efficiency and workflow on busy job sites.
– Full proportional drive joystick delivers precise, intuitive maneuvering and accurate positioning, even in tight or elevated areas
– The proportional boom and swing joystick control ensures smooth, controlled movements of the main boom and swing arm, maintaining safety at heights.
– Variable speeds for lower boom, telescope, and platform rotation for fine‑tuning movement speed for delicate tasks and boosting speed for larger work areas
– The selectable creep speed for drive, lift, and swing provides slow, controlled motion when working near obstacles, structures, or sensitive equipment
– The load-sensing system automatically monitors platform weight to maintain safe operation and prevent overloads
Electrical System: 12V-DC
Batteries: 200 Ah Lithium Batteries, including BMS
Drive Motors: 4 x AC Motors
Specs:
Platform Height 16.00 m
Working Height 18.00 m
Horizontal Outreach 10.00 m
Up and Over Height 7.30 m
Weight 7,985 kg
Swing 355 Degrees Non-Continuous
Platform Capacity 250 kg
Platform Size 0.76 x 1.83 m
Platform Rotator 180 Degrees Hydraulic
Jib 1.24 m
Range of Articulation 145 degrees (+76, -69)
Drive Speed 5 km/hr
Gradeability 4WD 45%
Maximum Ground Bearing Pressure 6.6 kg/cm²
Turning Radius
Inside 2.06 m
Outside 4.78 m
JLG’s exclusive “1 & 5” Warranty applies:
– 1 year full coverage on this machine
– 5 years coverage on all specified major structural components
This product meets or exceeds AS/NZS 1418.10 2011 as originally manufactured. Specifications are subject to change without notice due to ongoing product improvements.
Special Price * only while stock lasts
