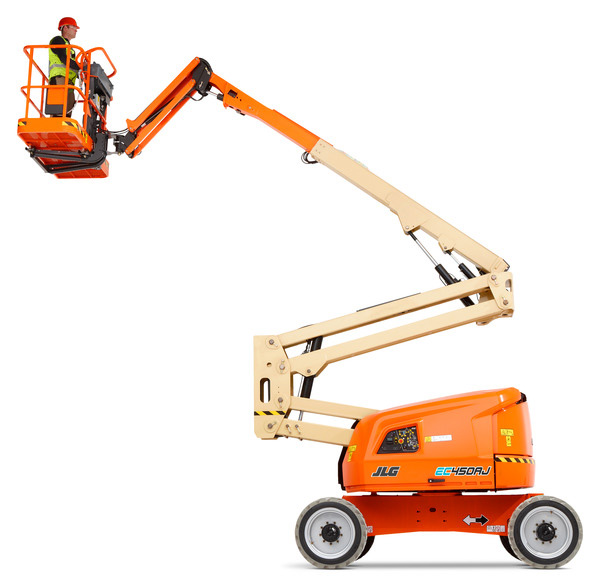

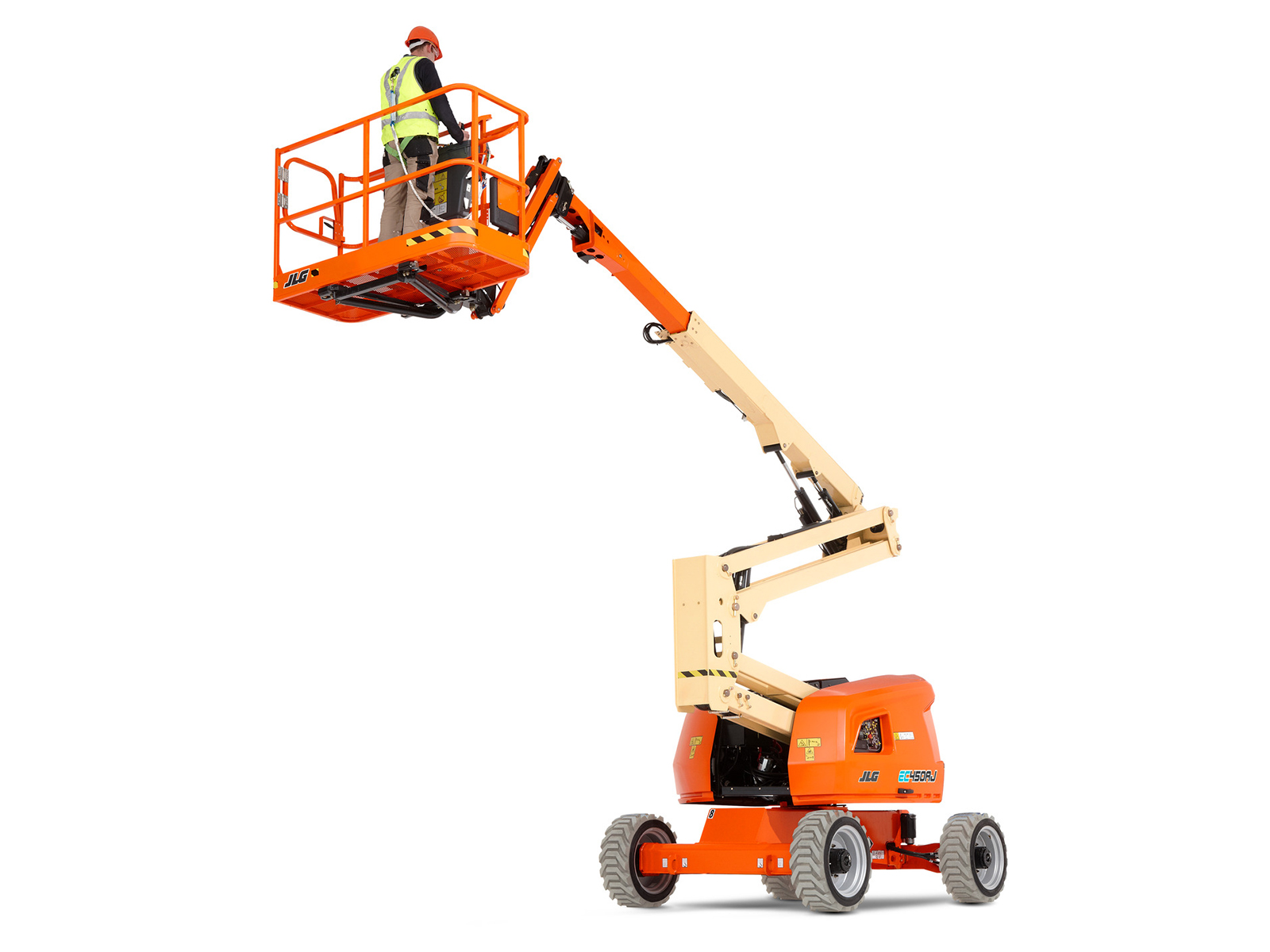

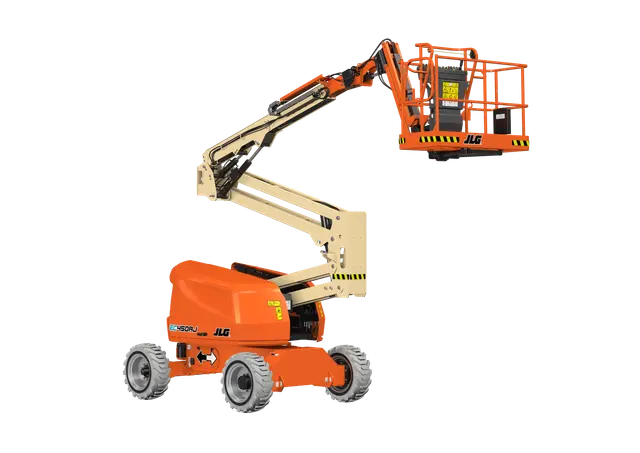

JLG EC450AJ 45ft Electric Articulating Boom Lift
Original price was: $142,318.00.$99,935.00Current price is: $99,935.00. Inc. GST
30% Off
$90,850.00 Ex. GST
The JLG EC450AJ 45ft Electric Articulating Boom Lift delivers quiet, zero‑emission performance with a 15.72 m working height, 7.62 m horizontal outreach, and advanced positioning controls. Designed for indoor and outdoor access, its lithium‑powered drivetrain and smart electronics enhance productivity.
The JLG EC450AJ is a premium electric articulating boom lift engineered for precision, comfort, and efficiency. With a 15.72 m working height and 7.62 m horizontal outreach, this boom lift provides versatile reach for maintenance, construction, industrial and facility tasks. Its 1.24 m articulating jib combined with a 180° powered platform rotator ensures operators can navigate obstacles with ease and accuracy.
Powered by four AC drive motors and a 48 V DC lithium battery system, the EC450AJ operates with zero emissions and minimal noise, making it ideal for both indoor environments and outdoor sites. The advanced Control ADE® electronics, load sensing system, and proportional joystick controls deliver smooth, responsive performance at every position. With a robust safety package, including all‑motion alarms, tilt indicators and JLG Skyguard Skyline system, this lift meets AS/NZS 1418.10 compliance for safe elevated access.
Key Features
- Operates with zero emissions and low noise thanks to electric motors and lithium battery technology.
- Offers a 15.72 m working height and a 7.62 m horizontal outreach with precise articulation.
- 1.24 m articulating jib and 180° powered platform rotator for enhanced positioning flexibility.
- Full proportional joystick controls with integral thumb steer provide intuitive handling.
- Selectable creep speed on drive, lift and swing functions for fine control in tight areas.
- Side entry with self‑closing, self‑locking gate improves operator accessibility.
- Advanced safety systems include 5° tilt alarms, motion alarms, load sensing, and JLG Skyguard Skyline.\
- Dual access control points with ground selector switch and interactive display at ground controls.
- 4WD system with oscillating front axle and non‑marking tyres suited to sensitive surfaces.
48 V DC lithium battery system with 200 Ah capacity, 4 AC drive motors and integrated battery management.
Specs
- Platform Height: 13.72 m
- Working Height: 15.72 m
- Horizontal Outreach: 7.62 m
- Up and Over Height: 7.3 m
- Swing: 355° non‑continuous
- Platform Capacity: 250 kg
- Platform Size: 0.76 m × 1.83 m
- Platform Rotator: 180° hydraulic
- Jib Length: 1.24 m
- Range of Articulation: 145° (+76° / ‑69°)
- Weight: 6,495 kg
- Drive Speed: 5 km/h
- Gradeability: 45% (4WD)
- Max Ground Bearing Pressure: 4.0 kg/cm²
- Turning Radius (Inside): 2.06 m
- Turning Radius (Outside): 4.78 m
Please contact our team for warranty details. Standard coverage is provided in line with manufacturer warranty policies and may vary by region or hire arrangement.
Special Price *only while stock lasts
