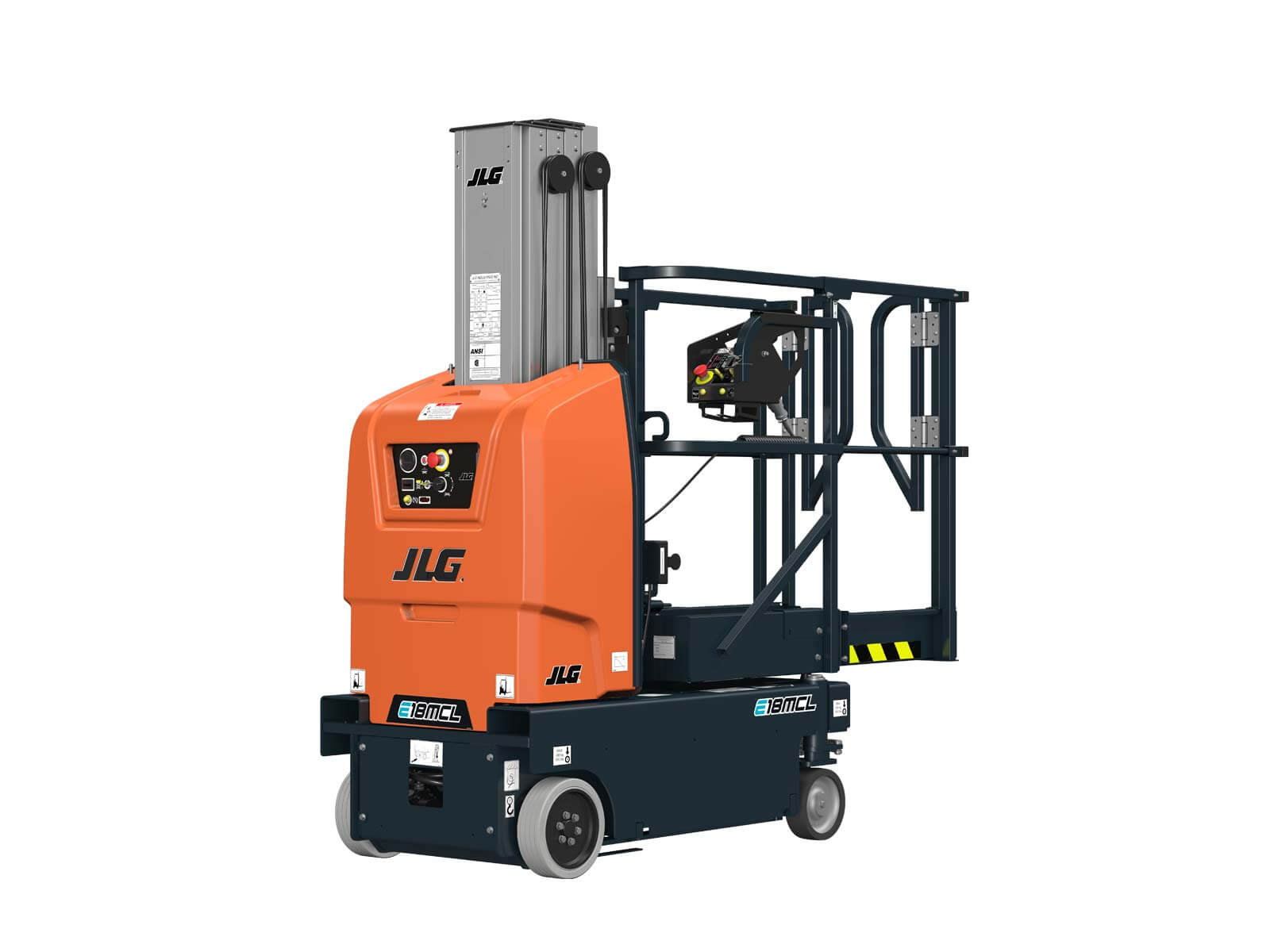

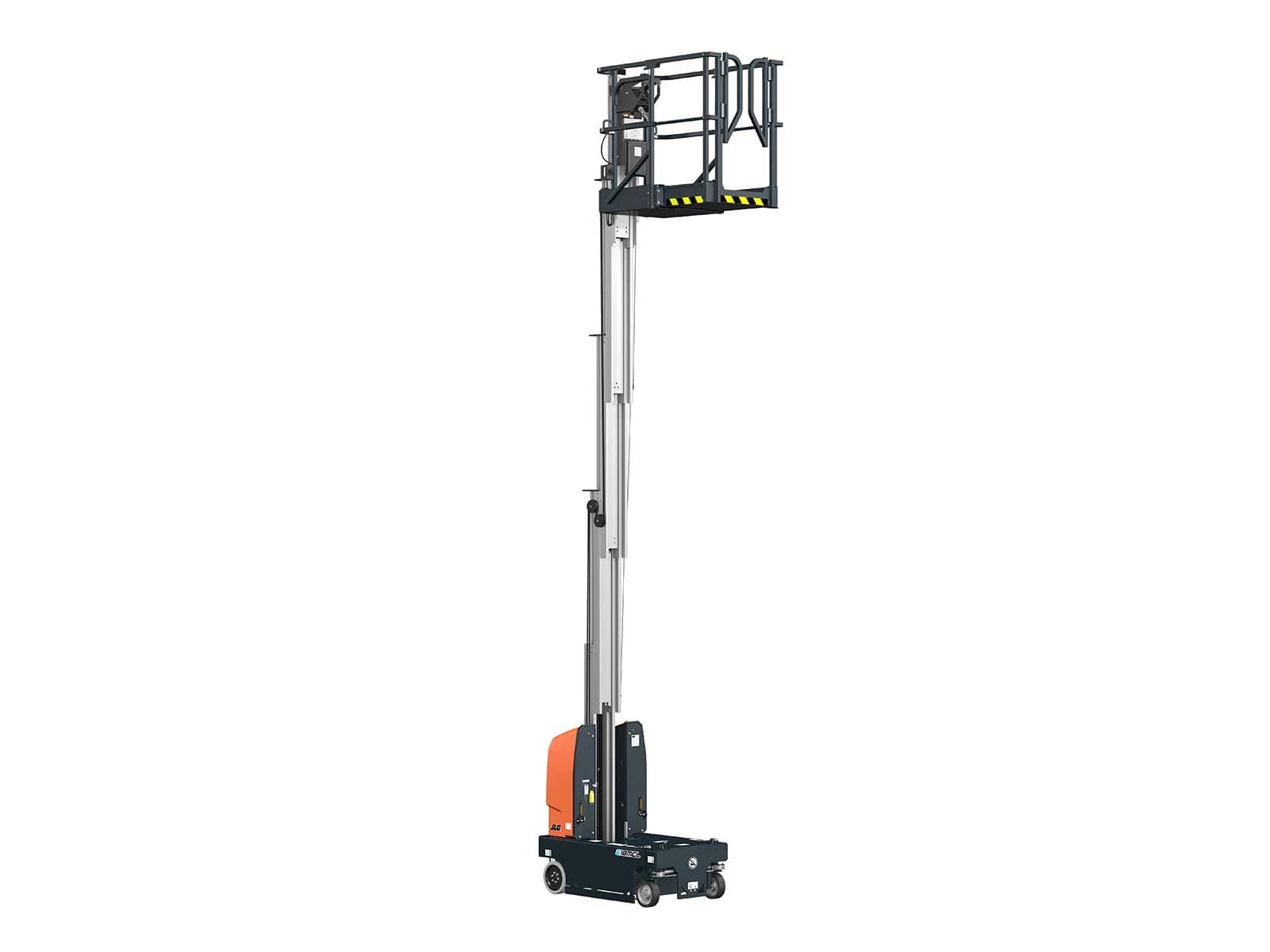

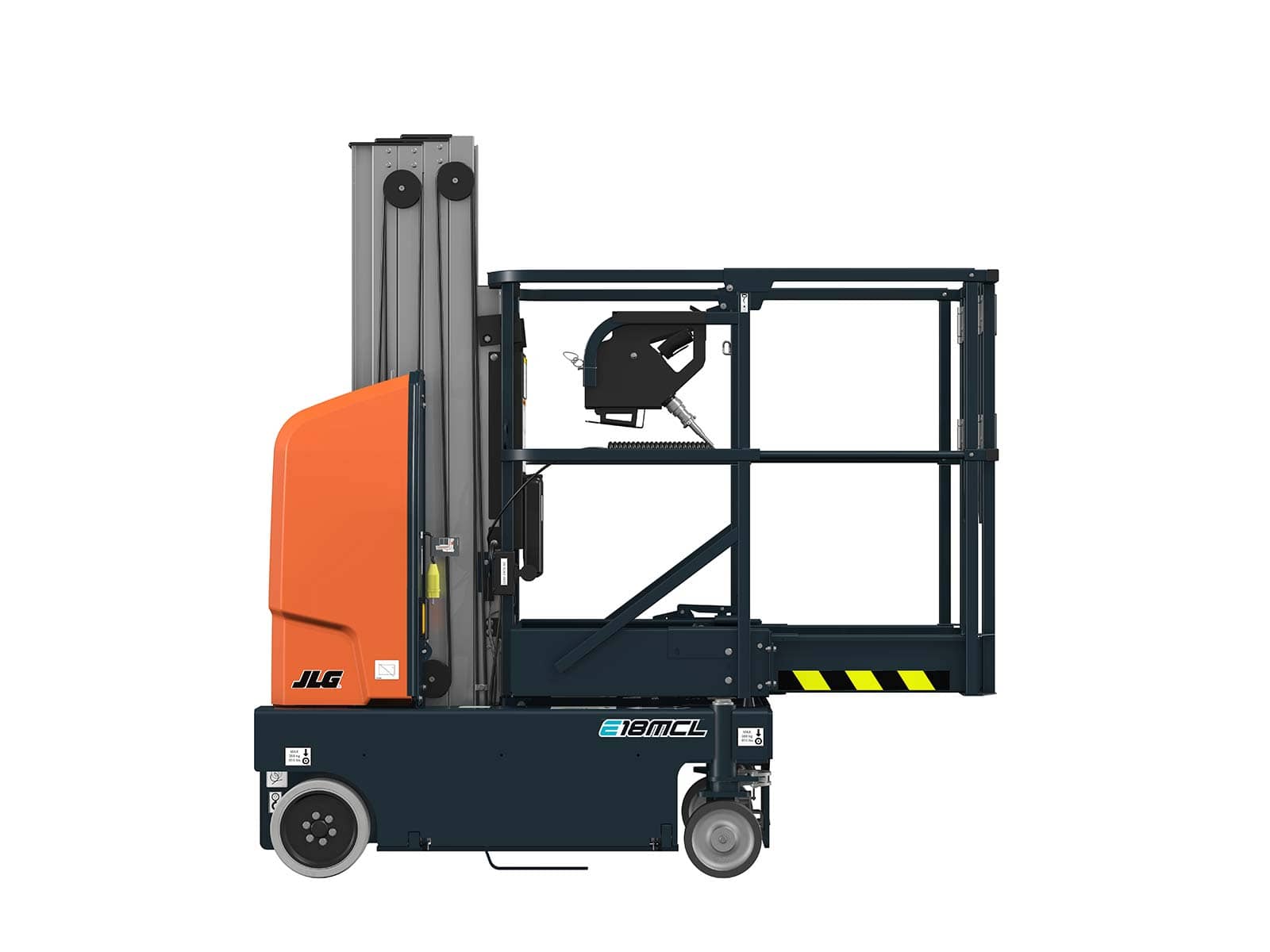

JLG E18MCL 18ft Drivable Vertical Mast Lift
$29,727.50 Inc. GST
$27,025.00 Ex. GST
Key Specs
- Platform Height: 5.49 m / 18 ft
- Machine Width: 0.76 m / 2 ft 6 in
Key Features
- Designed With the Operator in Mind: Features scissor steering, familiar controls, ergonomic joystick and ease of entry/exit from platform
- Lightweight and Compact Footprint: Work on sensitive flooring and access tight spaces with high transportability
- Increased Productivity: Experience longer-running batteries and optional platforms, trays and accessories
- Efficient Serviceability: Quickly access key, known scissor components and rely on durable mast protection to maximize uptime
- Ideal for the Construction Market: Indoor and outdoor capabilities to complete a variety of tasks
Key Specs
- Platform Height: 5.49 m / 18 ft
- Machine Width: 0.76 m / 2 ft 6 in
Key Features
- Designed With the Operator in Mind: Features scissor steering, familiar controls, ergonomic joystick and ease of entry/exit from platform
- Lightweight and Compact Footprint: Work on sensitive flooring and access tight spaces with high transportability
- Increased Productivity: Experience longer-running batteries and optional platforms, trays and accessories
- Efficient Serviceability: Quickly access key, known scissor components and rely on durable mast protection to maximize uptime
- Ideal for the Construction Market: Indoor and outdoor capabilities to complete a variety of tasks
Standard Features
- Extension Platform with Drop Bar
- Active Pothole Protection System
- All Motion Alarm
- Multi-Function Universal Charger
- Analyzer Port for Diagnostics
- Battery Condition Indicator
- DC Electric Drive
- Dynamic Braking
- Electric Brake Release
- Fork Lift Pockets
- Greaseless Kingpin Joints
- Horn
- Hourmeter
- Lanyard Attach Points
- LCD Display for Fault Code Information
- Lifting and Tie Down Points
- Load Sensing System
- Maintenance Indicator
- Manual Descent
- Mast Maintenance Prop
- Onboard Diagnostic System
- Proportional Controls
- Amber Beacon
- USB/ Phone Cradle
- Tilt Alarm and Light
- Telematics Ready
Performance Data
- Platform Height (Elevated) 5.5 m / Outdoor 4 m
- Working Height 7.5 m / Outdoor 6 m
- Platform Capacity 181 kg / Outdoor 181 kg
- Extension Deck Capacity 113 kg / Outdoor 113 kg
- Number of Occupants 1 / Outdoor 1
- Lift / Lower Time1 23/23 seconds 23/23 seconds
- Maximum Drive Height Fully Elevated 4 m
- Weight* 890 kg
- Drive Speed (Elevated) 0.8 km/h
- Drive Speed (Lowered) 4 km/h
- Gradeability 30%
- Turning Radius (Inside) Zero
- Turning Radius (Outside) 1.3 m
Machine Dimensions
- Platform Height (Lowered) 1.98 m
- Platform Entry Height 0.47 m
- Platform Retracted (W x L) 0.75 m x 0.75 m
- Platform Extended (W x L) 0.75 m x 1.30 m
- Machine Width x Length 0.76 m x 1.35 m
- Machine Length with Extension 1.46 m
- Wheelbase 1.05 m
- Ground Clearance 6.35 cm
