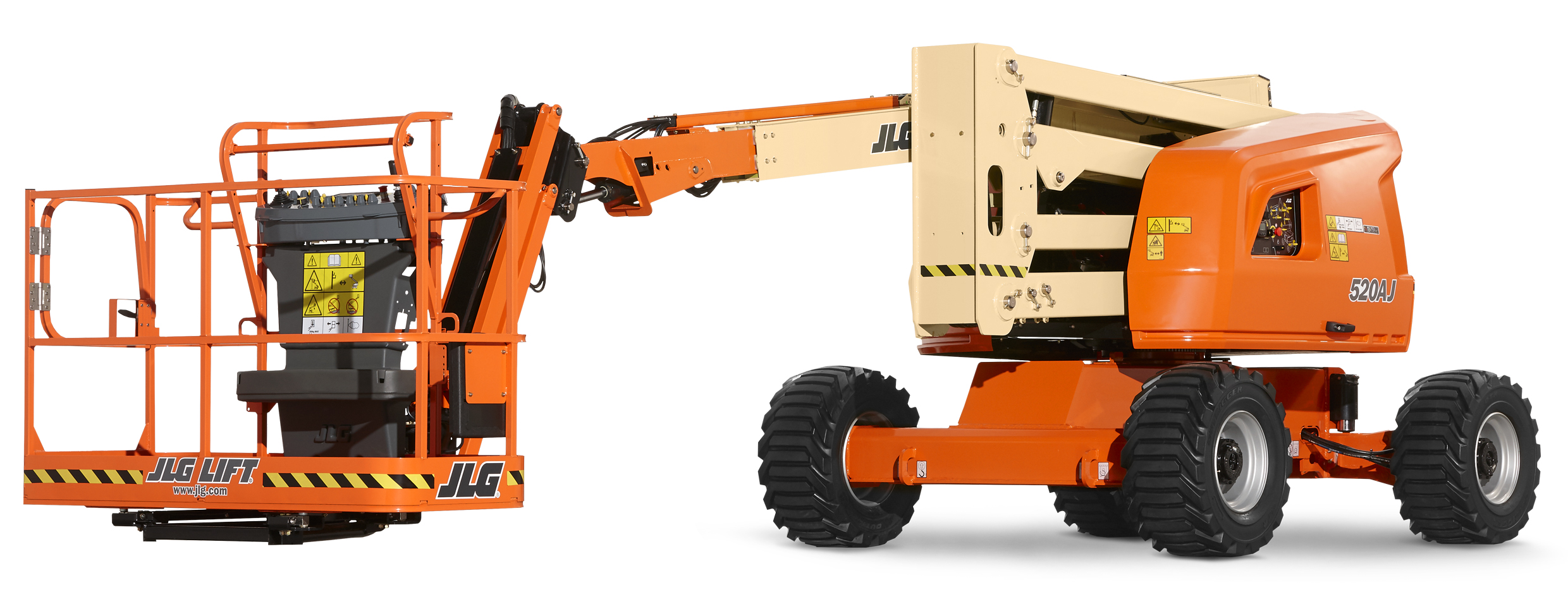

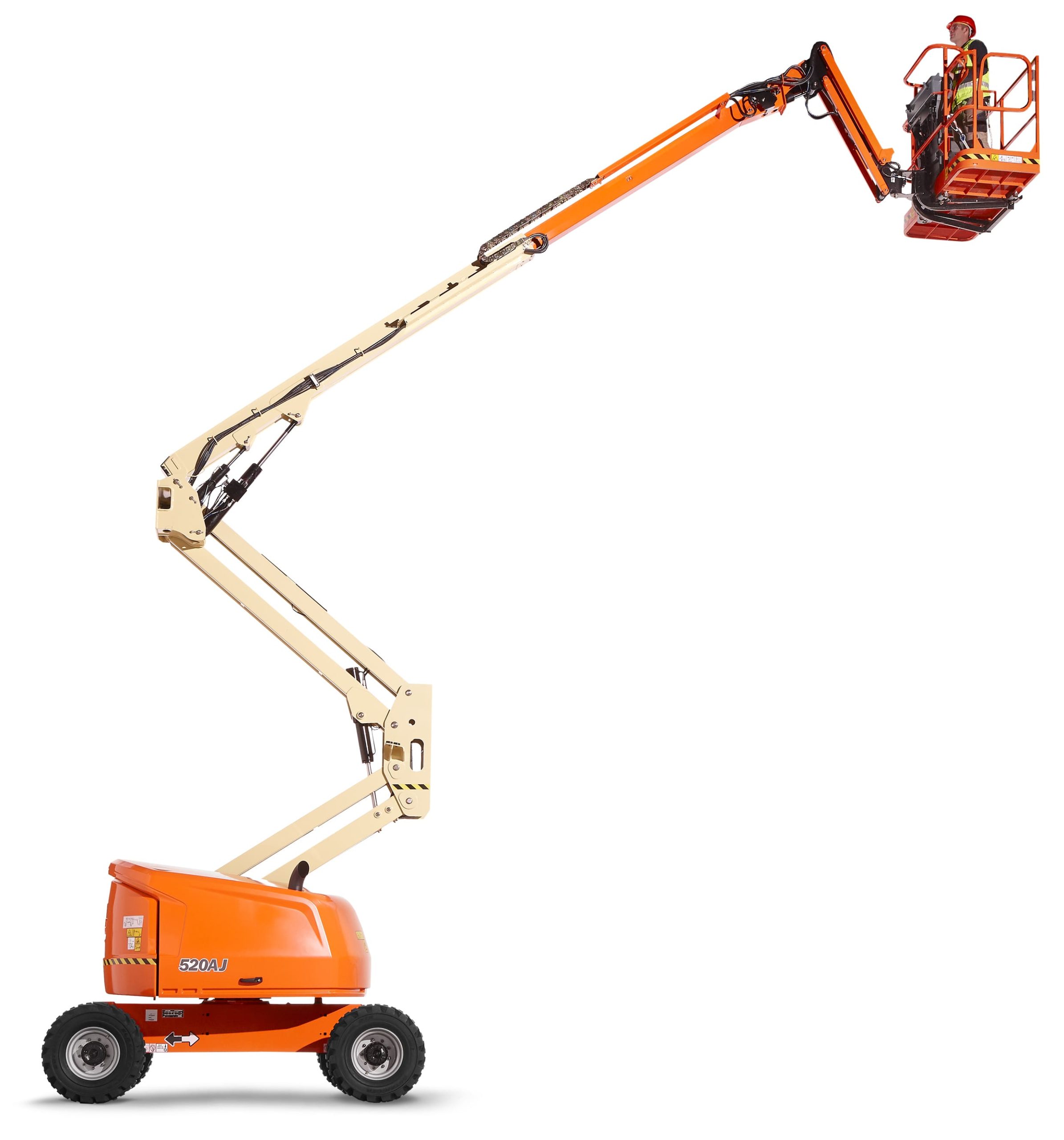

JLG 520AJ 52ft Articulating Boom Lift
JLG 520AJ 52ft Articulating Boom Lift - Image 2
JLG 520AJ 52ft Articulating Boom Lift - Image 3
JLG 520AJ 52ft Articulating Boom Lift - Image 4

JLG 520AJ 52ft Articulating Boom Lift

$117,645.00 Inc. GST

$106,950.00 Ex. GST

Key Specs

  • Platform Height: 16 m / 52.5 ft
  • Horizontal Outreach: 10 m / 32.8 ft
  • Platform Capacity – Unrestricted: 250 kg / 551.2 lb

Key Features

Variable speed engine control for improved fuel efficiency reducing operating costs.

Greater elevation speed increasing workers’ efficiency.

Increased horizontal reach for a larger work envelope.

250 kg in basket vs 230 kg before allowing you to carry more tools or materials to stay on a job longer.

SKU: JLG 520AJ-1

Key Specs

  • Platform Height: 16 m / 52.5 ft
  • Horizontal Outreach: 10 m / 32.8 ft
  • Platform Capacity – Unrestricted: 250 kg / 551.2 lb

Key Features

Variable speed engine control for improved fuel efficiency reducing operating costs.

Greater elevation speed increasing workers’ efficiency.

Increased horizontal reach for a larger work envelope.

250 kg in basket vs 230 kg before allowing you to carry more tools or materials to stay on a job longer.

  • Generator incl. Outlet to Platform and ELCB
  • 1.24 m Articulating Jib
  • 355 Degree Non-Continuous Swing
  • Platform 0.76 x 1.83 m Side Entry
  • Self-Closing, Self-Locking Gate
  • 180 Degree Hydraulic Platform Rotator
  • Platform Console Machine Status LightPanel*
  • 5 Degree Tilt Alarm/Indicator Light
  • Flashing Amber Beacon
  • Swing-Out Engine Tray
  • Gull-Wing Steel Turntable Hoods
  • 12V-DC Auxiliary Power
  • Hourmeter
  • Interactive Display at Ground Controls
  • Proportional Controls
  • Control ADE® System
  • Lifting/Tie Down Lugs
  • Horn
  • Oscillating Axle
  • Cast Aluminum Control Box
  • Reduced Time to Full Height
  • Motion Alarm

Auxiliary Power 12 Volts DC

Capacity – Fuel Tank 60.50 L / 16 gal.

Engine Type – Diesel (HRC) Deutz D2.3 L3 Stage IIIA

Engine Type – Diesel (LRC) Deutz D2.3 L3 Stage IIIA

Dimensional Data

  • Ground Clearance 0.42 m / 1 ft 5 in.
  • Machine Height 2.27 m / 7.4 ft
  • Machine Length 7.77 m / 25.5 ft
  • Machine Width 2.35 m / 7.7 ft
  • Platform Dimension 0.76 m / 2.5 ft
  • Platform Dimension  1.83 m / 6 ft
  • Platform Height 16 m / 52.5 ft
  • Tailswing 0 m / 0 in.
  • Tyre Size 33/1550 x 16.5 Foam Filled Superwide tyres
  • Tyre size 33/1550 x 16.5 Foam Filled Superwide tyres

 Reach Specifications

  • Horizontal Jib Rotation 0 Degrees
  • Horizontal Outreach 10 m / 32.8 ft
  • Platform Height 16 m / 52.5 ft
  • Up and Over Height 7.30 m / 24 ft
  • Working Height 18 m / 59.1 ft
  • Working Outreach 10.65 m / 34.9 ft

General Specifications

  • Capacity – Hydraulic Reservoir 144 L / 38 gal.
  • deleted – Ground-Bearing-Pressure 6.60 Kg/cm2
  • Machine Weight 7985 kg / 17603.9 lb
  • Machine Weight 7985 kg / 17603.9 lb

Warranty

Purchasing from Swift Equipment will ensure you can take advantage of JLG’s “1 & 5” warranty. JLG provide warranty coverage on this product for one year and cover all specified major structural components for five years. Due to continuous product improvements, the manufacturer reserves the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
