JLG 450AJ HC3 45ft Articulating Boom Lift (High Capacity)

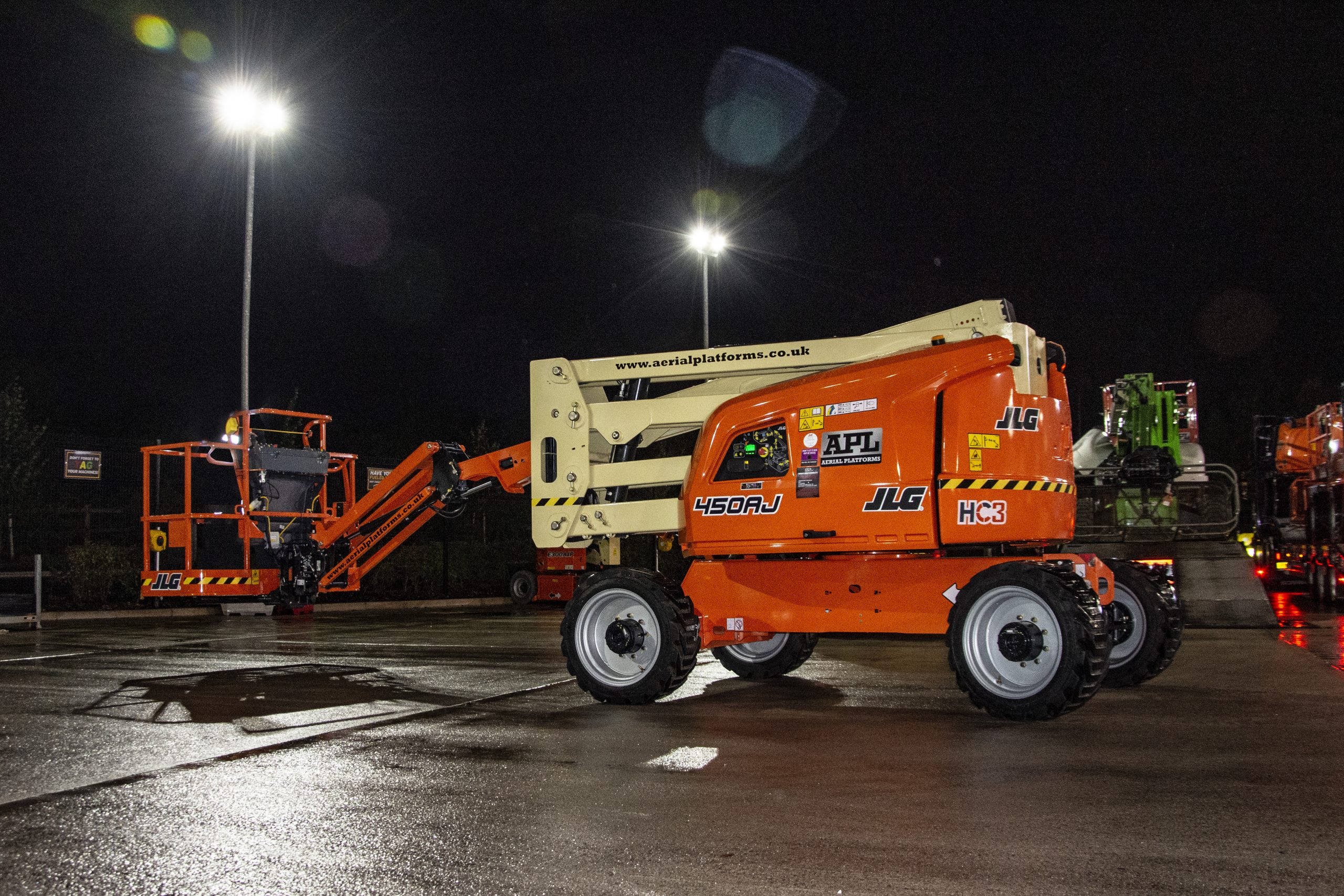

JLG 450AJ HC3 45ft Articulating Boom Lift (High Capacity) - Image 2

JLG 450AJ HC3 45ft Articulating Boom Lift (High Capacity)

$115,115.00 Inc. GST

$104,650.00 Ex. GST

The JLG 450AJ HC3 45ft Articulating Boom Lift is designed for jobs that require both height and outreach, with the added benefit of a higher platform capacity than a standard boom lift. Its articulated boom makes it easier to work around structures, equipment, and other obstacles commonly found on construction and industrial sites.

SKU: JLG 450A HC3

The JLG 450AJ HC3 is a 45ft articulating boom lift built for access work where a straight vertical lift is not practical. The articulated boom allows operators to position the platform over and around obstacles, making it suitable for building maintenance, construction, steel erection, installation work, and industrial shutdowns.

A key feature of the HC3 model is its higher platform capacity, allowing operators to carry more tools, materials, or equipment while working at height. This can reduce the need for repeated trips up and down during certain tasks.

The machine is designed for outdoor environments and rough terrain conditions, with four-wheel drive providing traction across uneven ground. Its compact turning ability also helps when working in confined sections of larger job sites.

Key Features:

  • Load Sensing System: Automatically monitors platform load and prevents unsafe operation if capacity limits are exceeded.
  • SkyGuard SkyLine™: An advanced secondary guarding system that helps stop or reverse machine functions if the operator is pushed against the control panel, providing an extra layer of protection when working at height.
  • Four-Wheel Hydrostatic Drive: Delivers excellent traction and smooth driving performance across rough terrain, allowing the boom lift to access challenging work areas with confidence.
  • Oscillating Axle: Keeps all wheels in better contact with uneven ground, improving stability and traction while travelling across rough jobsites.
  • Proportional Controls: Provide smooth, precise control of boom and drive movements, making positioning easier and increasing operator productivity and safety.
  • 5 Degree Tilt Alarm/Indicator Light: Warns operators when the machine is on an unsafe slope, helping prevent tip-over incidents and ensuring the lift is used within safe operating limits.

Dual Fuel: Kubota WG2503 61 hp / 45.5 kW
Diesel Fuel: Deutz D2.9L4 Tier 4 Final 49 hp / 36.4 kW
Fuel Tank Capacity: 16 gal / 60.6 L

Specs:
Platform Height: 45-ft / 13.72-m
Horizontal Outreach: 25-ft / 7.62-m
Up and Over Height: 24-ft / 7.3-m
Swing: 355 Degrees Non-Continuous
Platform Capacity – Restricted: 750/1000-lb / 340/454-kg
Platform Capacity – Unrestricted: 660-lb / 300-kg
Platform Size: 30 x 72-in / 0.76 x 1.83-m
Platform Rotator: 180 Degrees Hydraulic
Jib: 4-ft 1-in / 1.24-m
Range of Articulation: 145 Degrees (+76, -69)
Weight: 16,550-lb / 7,507-kg
Max. Ground Bearing Pressure: 76 psi / 5.34 kg/cm²
Drive Speed: 4.25 mph / 6.8 km/h
Gradeability 4WD: 45%
Tilt Cut Out: 5 Degrees
Axle Oscillation: 4-in / 10-cm
Turning Radius Inside: 6-ft 9-in / 2.06-m
Turning Radius Outside: 15-ft 8-in / 4.78-m

Warranty

Purchasing from Swift Equipment will ensure you can take advantage of JLG’s “1 & 5” warranty. JLG provide warranty coverage on this product for one year and cover all specified major structural components for five years. Due to continuous product improvements, the manufacturer reserves the right to make specification and/or equipment changes without prior notification.

This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
