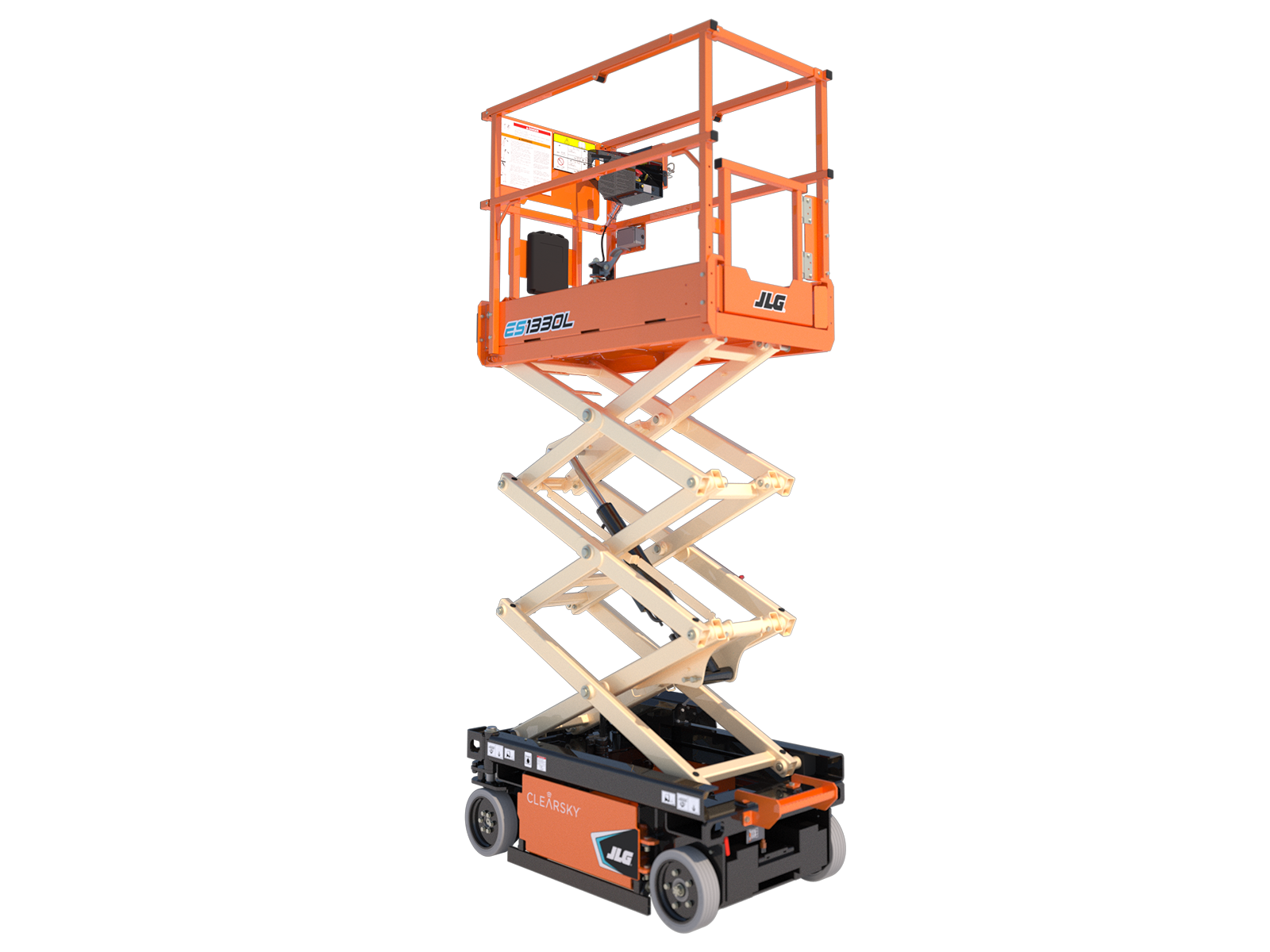

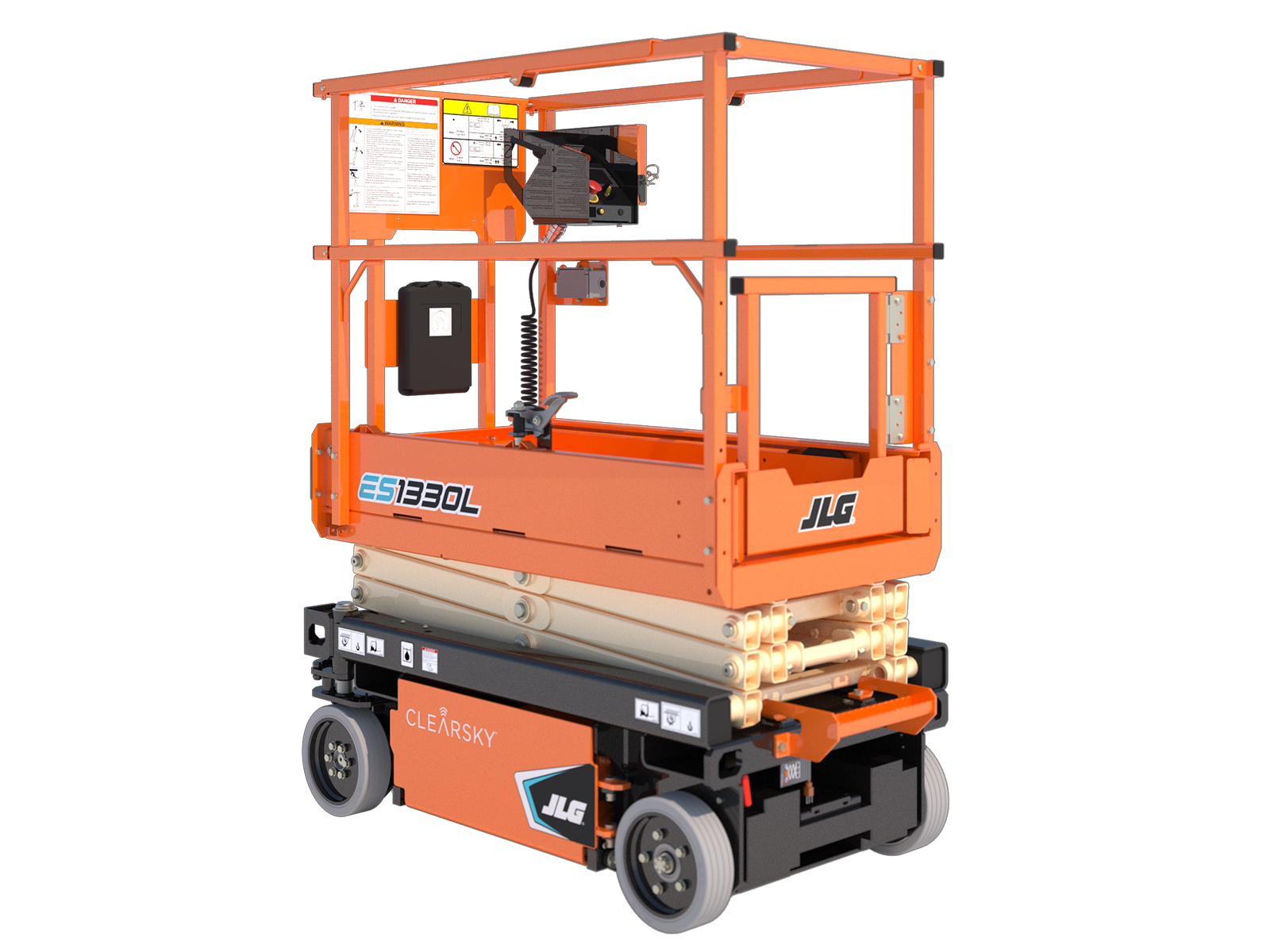

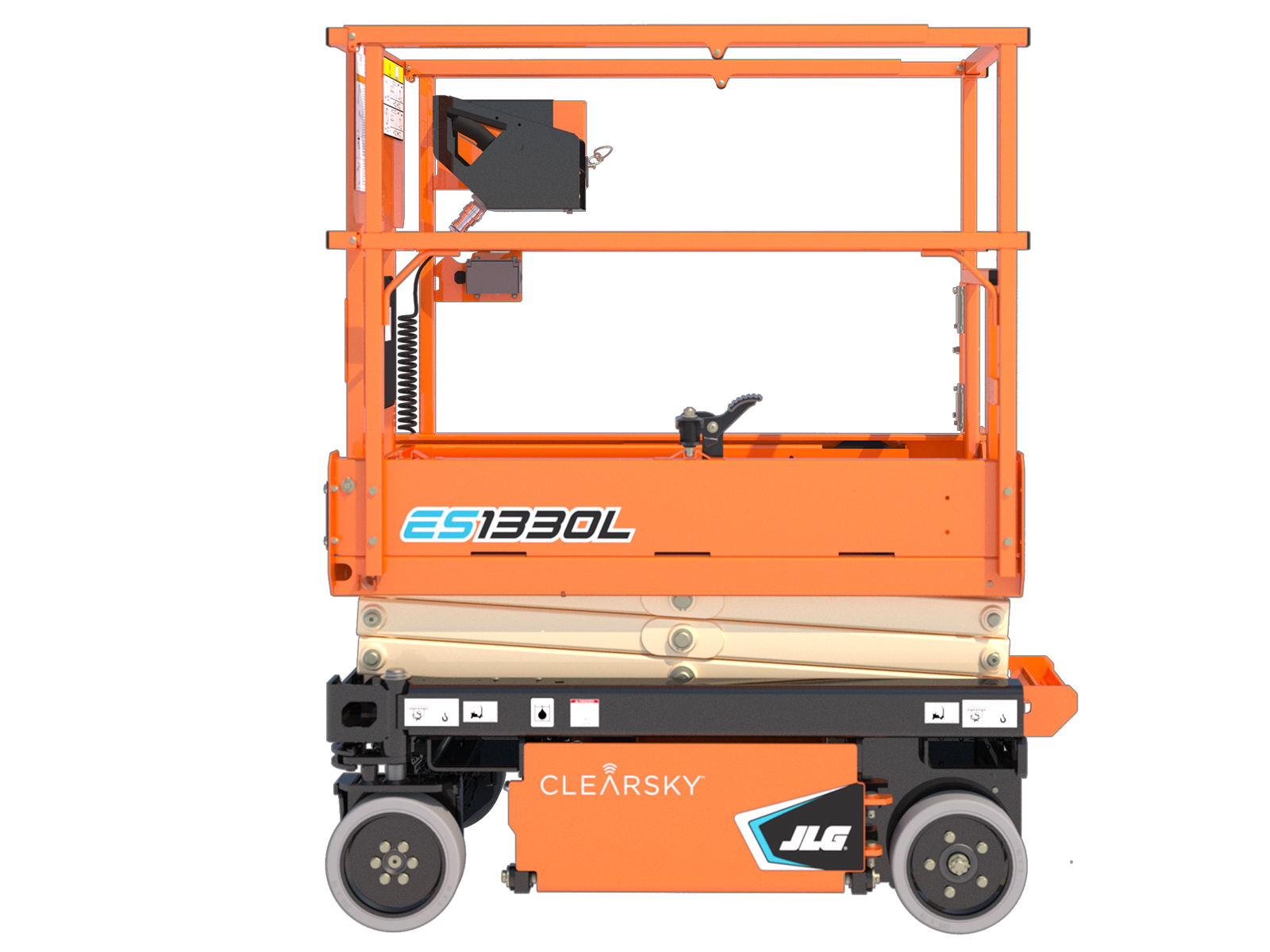

JLG ES1330L 13ft 4m Electric Scissor Lift
$17,583.50 Inc. GST
$15,985.00 Ex. GST
The JLG ES1330L 13 ft Electric Scissor Lift is a full electric powered, slab scissor lift. It offers versatile and reliable vertical elevation for various indoor tasks, providing a platform height of 13 feet and 4 metres. It’s an ideal choice for your lifting needs.
Key Specs
- Platform Height 3.80 m
- Platform Capacity 227 kg
- Number of Occupants 2 x persons indoors
Lightweight for indoor work on sensitive flooring, such as data centers, while also usable for outdoor applications.
Maneuver more efficiently with a compact footprint, delivering an industry-exclusive zero turning radius for work in tight spaces.
Reduce operating costs with electric drive and integrated components containing reduced hydraulic hoses and hydraulic fittings on the entire machine. Meaning, increased uptime as well as fewer leaks and service calls.
Complies with A92.20 ANSI regulations, achieving the highest standards.
- Platform Height 3.80 m
- Platform Capacity 227 kg
- Number of Occupants 2 x persons indoors
- Proportional Controls
- Battery Condition Indicator
- All Motion Alarm
- 27 amp Multi-Function Universal Charger
- Horn
- Hourmeter
- Tilt Alarm and Light
- Lanyard Attach Points
- Moveable, Removable Platform Control
- Nickel Plated Pins
- Lubrication Free Scissor Arm Bushings
- Scissor Maintenance Prop
- Active Pothole Protection System
- Lifting and Tie Down Points
- Fork Lift Pockets
- Foot-Actuated Deck Extension
- Steel Swing-Out Doors
- Variable Tilt Window
- Manual Descent Cable
- Diamond Tread Steel Deck
- Greaseless Kingpin Joints
- Analyzer Port for Diagnostics
- Dynamic Braking
- Flashing Amber Beacon
- Self Closing, Self Latching Gate
- MDI (Ground)
- Drive Motor Covers
- AS/NZS 1418.10 Compliance
Batteries 2 x 12V 130 amp-hr
Charger 27 amp
Drive 24V Electric Front Wheel
- Platform Height 3.80 m
- Platform Capacity 227 kg
- Number of Occupants 2 x persons indoors
- 1 x person outdoors
- Capacity on Platform Extension 115 kg
- Lift/Lower Time 25/15 Seconds
- Maximum Drive Height (Indoor Only) Full Height
- Weight* 900 kg
- Drive Speed–Elevated 0.8 km/h
- Drive Speed–Lowered 3.8 km/h
- Gradeability 25%
- Turning Radius (Inside) Zero
- Turning Radius (Outside) 1.4 m
JLG Industries, Inc. backs its products with its exclusive “2 & 5” Warranty. We provide coverage on all products for one (2) full year and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/ or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
