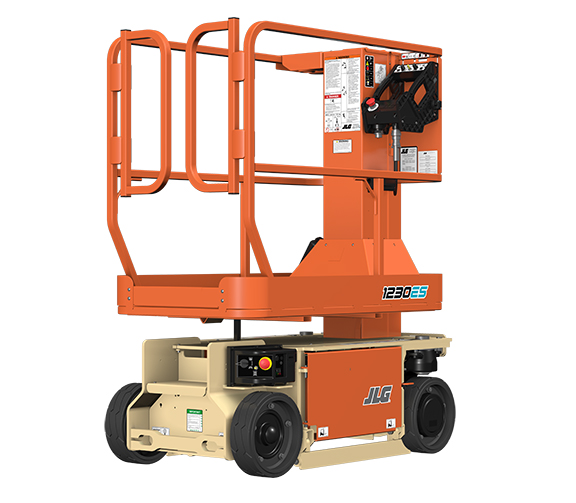

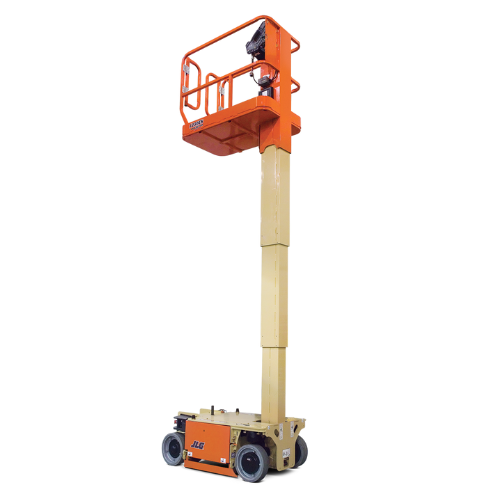

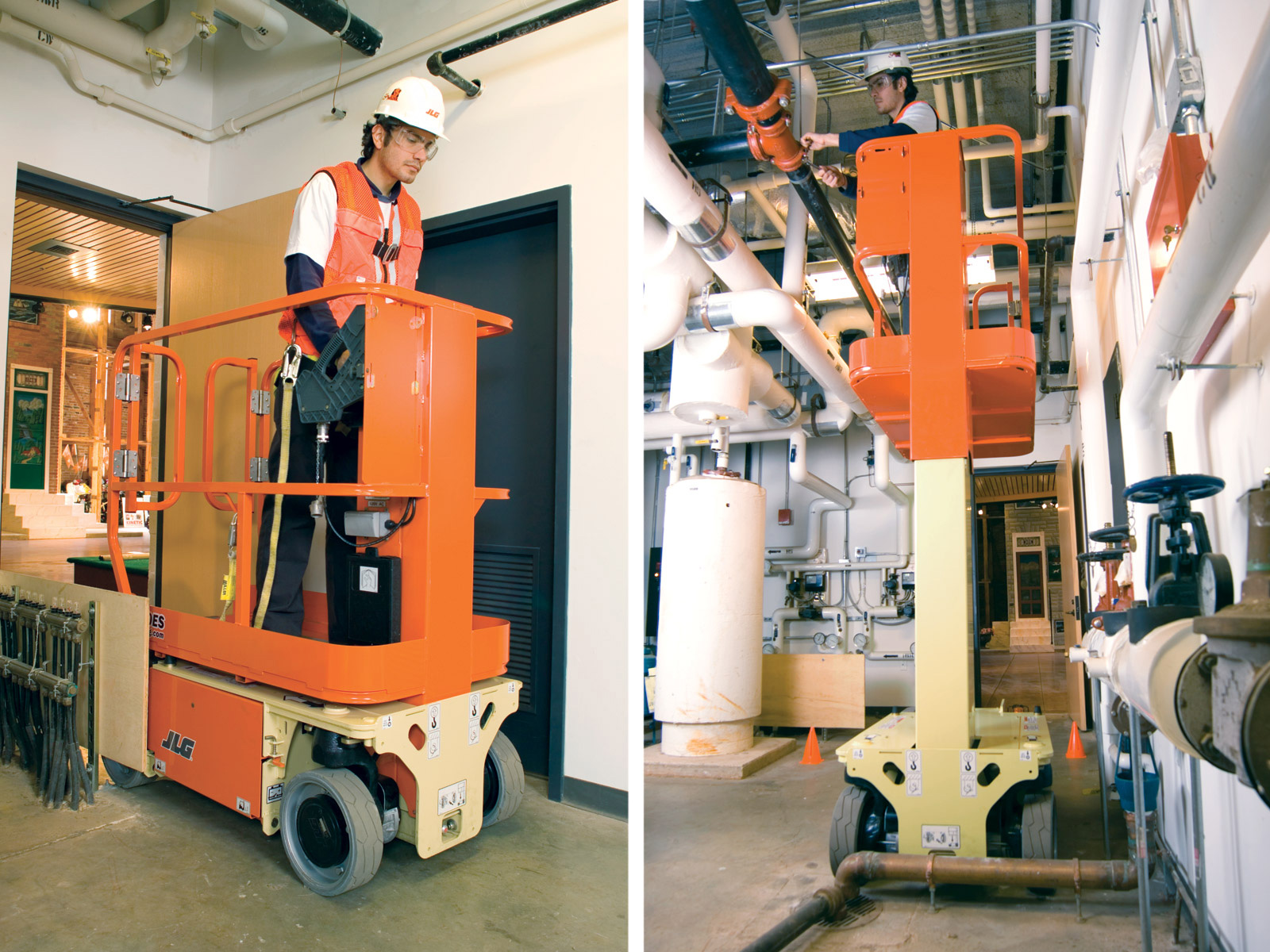

JLG 1230ES 12ft Vertical Lift
$25,173.50 Inc. GST
$22,885.00 Ex. GST

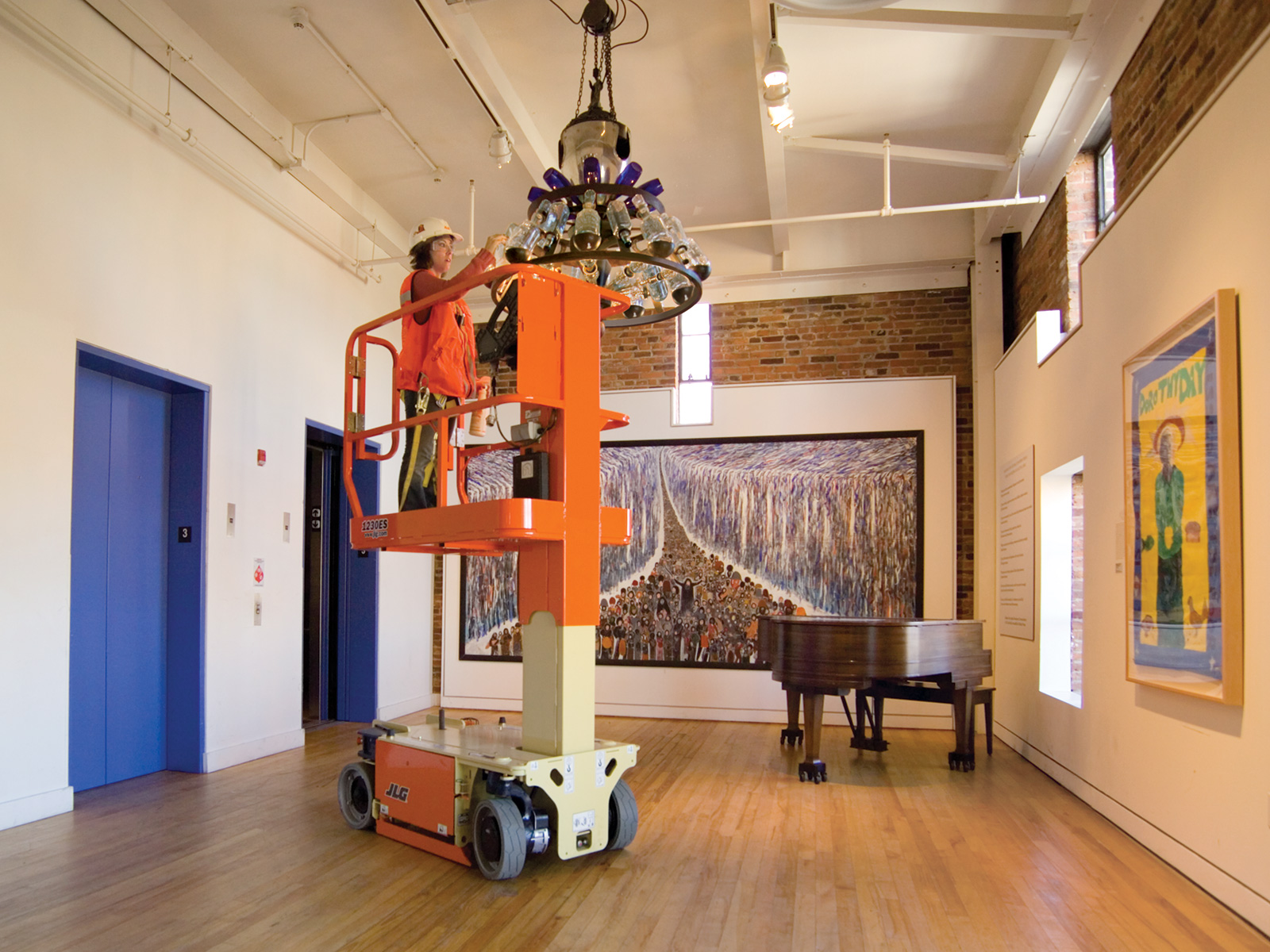

Meet the JLG 1230ES 12 ft Vertical Lift: compact, reliable, and perfect for indoor tasks. With a 3.66m platform height, it’s your go-to solution for efficient elevation in tight spaces, ensuring productivity and safety on every job.
Key Specs:
Platform Height: 3.66 m
Working Height: 5.66m
Key Features:
Low maintenance, energy efficient and environmentally clean
Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
Lightweight design for transport in freight elevators
Meet the JLG 1230ES 12 ft Vertical Lift: compact, reliable, and perfect for indoor tasks. With a 3.66m platform height, it’s your go-to solution for efficient elevation in tight spaces, ensuring productivity and safety on every job.
Key Specs:
Platform Height: 3.66 m
Working Height: 5.66m
Key Features:
Low maintenance, energy efficient and environmentally clean
Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
Lightweight design for transport in freight elevators
Standard Features
- Smooth control, proportional drive, lift and lower
- Long battery duty cycles, drive at full elevation for 22 hours
- Low entry height to platform, anti-slip floor strips
- 76cm wide chassis allows drive through a standard 81cm door
- Fixed rails 166cm allows drive through standard 203cm door height
- Non-marking solid tyres with tight turning circle
- Constant traction control with quiet electric front wheel drive for 25 per cent gradeability
- Removable/Interchangeable control box with all other ES scissors
- Weatherproof Inverter style battery charger, can use long extension lead. Ideal for multi shift applications
- Lifting mast has 3 cylinders, not chains, maintenance reduced
- Pothole protection prevents elevated drive, not lift
Power Source Electric DC
DC Voltage 24V
DC Power 225 Amp hr
Batteries 4 x 6V
Auxiliary Lowering Manual
Drive Motor – Type Shunt Wound Electric
Hydraulic Pump – Type Gear
Charger Electronic IP46 Input Voltage 190-250V AC
Performance:
- Platform Height (max.) 3.66m
- Working Height 5.66m
- Lift Time 12 sec
- Lower Time 12 sec
- Platform Capacity Standard 230kg
Dimensions:
- Stowed Length 1.36m
- Stowed Height 1.66m
- Width 0.76m
- Wheelbase 1.04m
- Ground Clearance 0.06m
JLG Industries, Inc. backs its products with its exclusive “2 & 5” Warranty. We provide coverage on all products for one (2) full year and cover all specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/ or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
