JLG 10MSP 3m Mobile Stock Picker

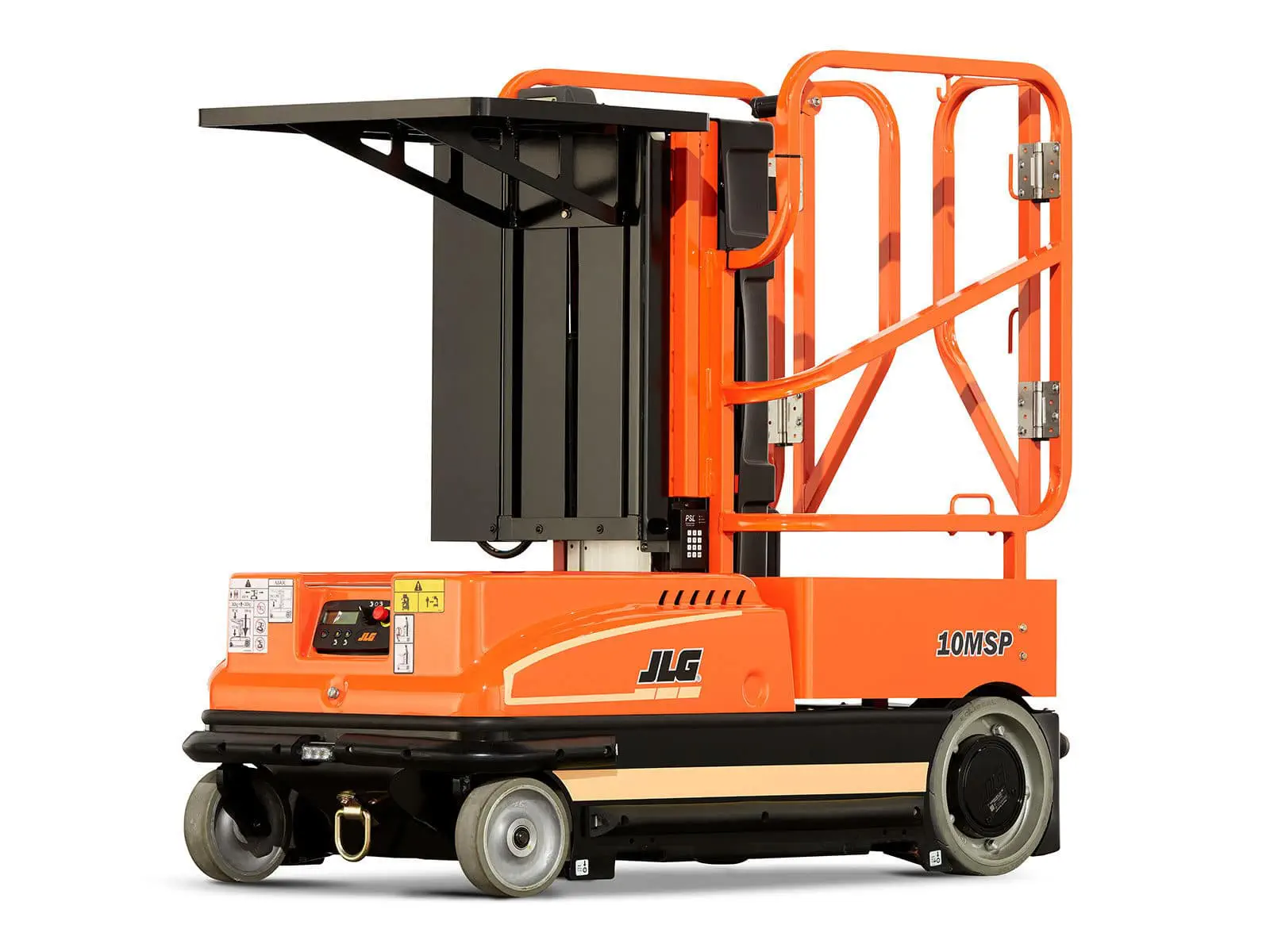

JLG 10MSP 3m Mobile Stock Picker - Image 2

JLG 10MSP 3m Mobile Stock Picker

Be the first to leave a review.

$28,968.50 Inc. GST

$26,335.00 Ex. GST

Boost your efficiency with the JLG 10MSP. Drivable at full height while picking stock, this machine features a zero turning radius for superior manoeuvrability, even in narrow aisles.

  • Platform Height 3.05 m
  • Working Height 5.05 m
  • Drive Height Max. Platform Height

SKU: JLG 10MSP

Boost your efficiency with the JLG 10MSP. Drivable at full height while picking stock, this machine features a zero turning radius for superior manoeuvrability, even in narrow aisles.

  • Platform Height 3.05 m
  • Working Height 5.05 m
  • Drive Height Max. Platform Height
  • Heavy-duty Planetary Gear Drive Motors
  • Simultaneous Lift and Drive Capability
  • Point & Go® One-hand Drive and Steer System
  • Proportional Drive
  • Automatic Five-hour Battery Charger
  • Battery Discharge Indicators  Platform and Base
  • Lubrication-free Anodized Aluminum Mast Sections
  • Maintenance-free Mast Guide System
  • Strobe Lights Front and Rear
  • Motion Alarm
  • Slope Cut-out Control Interlock 1.5°
  • Stand-on Foot Switch Operation Enable Control
  • Platform Gate Operation Interlock
  • Self-closing Self-locking Platform Gate
  • Powered Adjustable Height Material Tray
  • Non-marking Tyre Material
  • Lanyard Attachment Anchor Point
  • Hourmeter
  • Horn
  • Guide Roller System
  • Transportation Tie Downs
  • Side and Front Bumpers
  • Rubber Floor Mat

Batteries 4 x 6V 210 amp-hr Maintenance-free (AGM)
Battery Charger 25 Amp Automatic
Drive System 4 Brush Direct Electric (Planetary Gear)

  • Platform Height 3.05 m
  • Working Height 5.05 m
  • Drive Height Max. Platform Height
  • Stowed Height 145 cm
  • Platform Entry Height 35 cm
  • Platform Size (W x L) 50 x 69 cm
  • Overall Vehicle Length
  • Chassis Length 156 cm
  • Overall Vehicle Width
  • Chassis Width (with guide rollers) 89 cm
  • Chassis Width (with bumper) 83 cm
  • Chassis Width (without bumper) 75 cm
  • Gross Vehicle Weight 499 kg
  • Capacity
  • Platform 160 kg
  • Carry Deck 115 kg
  • Powered Material Tray 90 kg
  • Max. Drive Speed
  • Platform Lowered 8.0 km/h
  • Platform Elevated 0.8 km/h
  • Turning Radius Zero
  • Gradeability 15%
  • Underclearance 5 cm

JLG Industries, Inc., backs its products with its exclusive “1 & 5” Warranty. We provide coverage on all products for one (1) full year and cover all
specified major structural components for five (5) years. Due to continuous product improvements, we reserve the right to make specification and/or equipment changes without prior notification. This machine meets or exceeds AS/NZS 1418.10 2011 as originally manufactured for intended applications.
