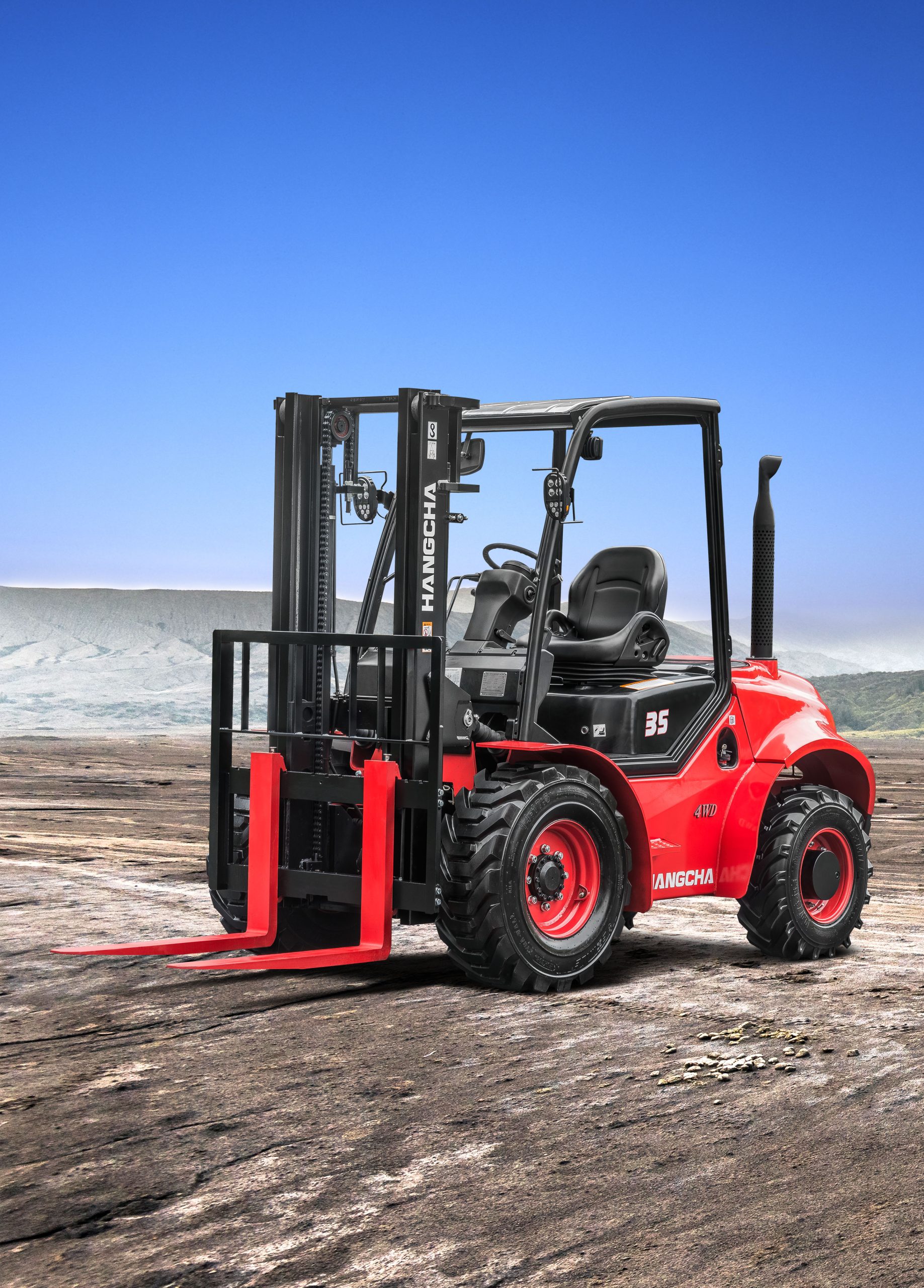

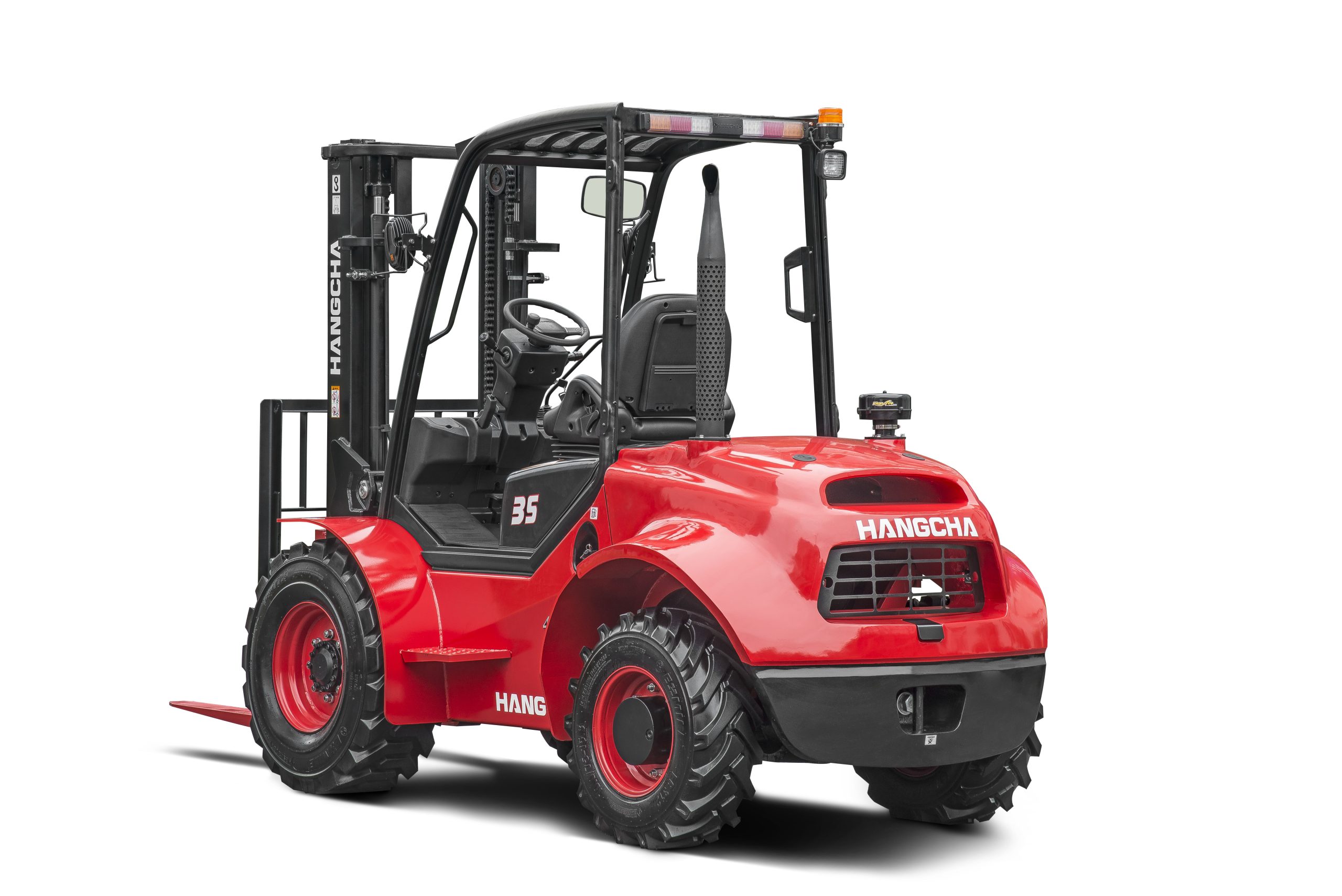

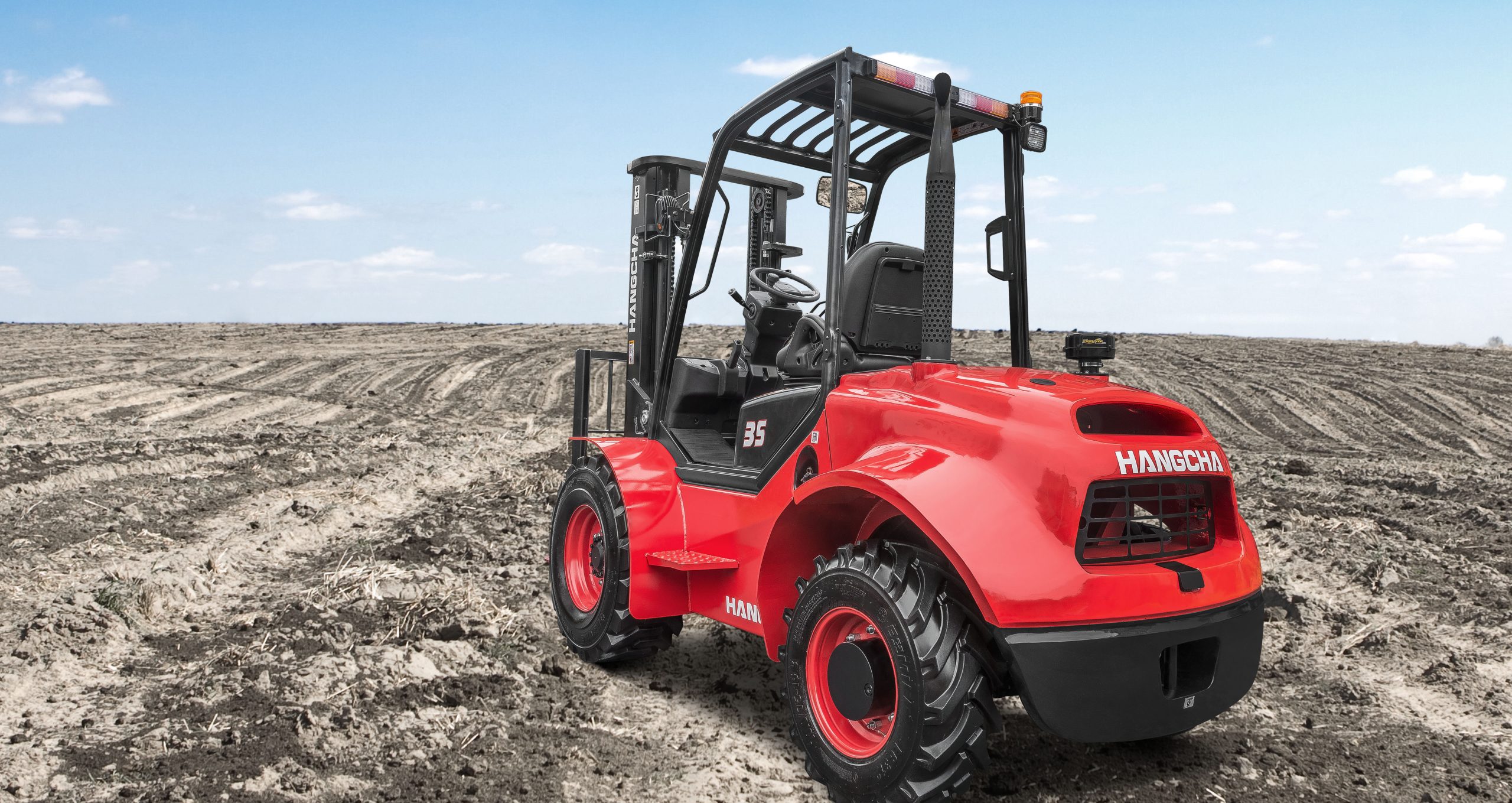

Hangcha 3.5T Rough Terrain Diesel Forklift
$52,360.00 Inc. GST
$47,600.00 Ex. GST

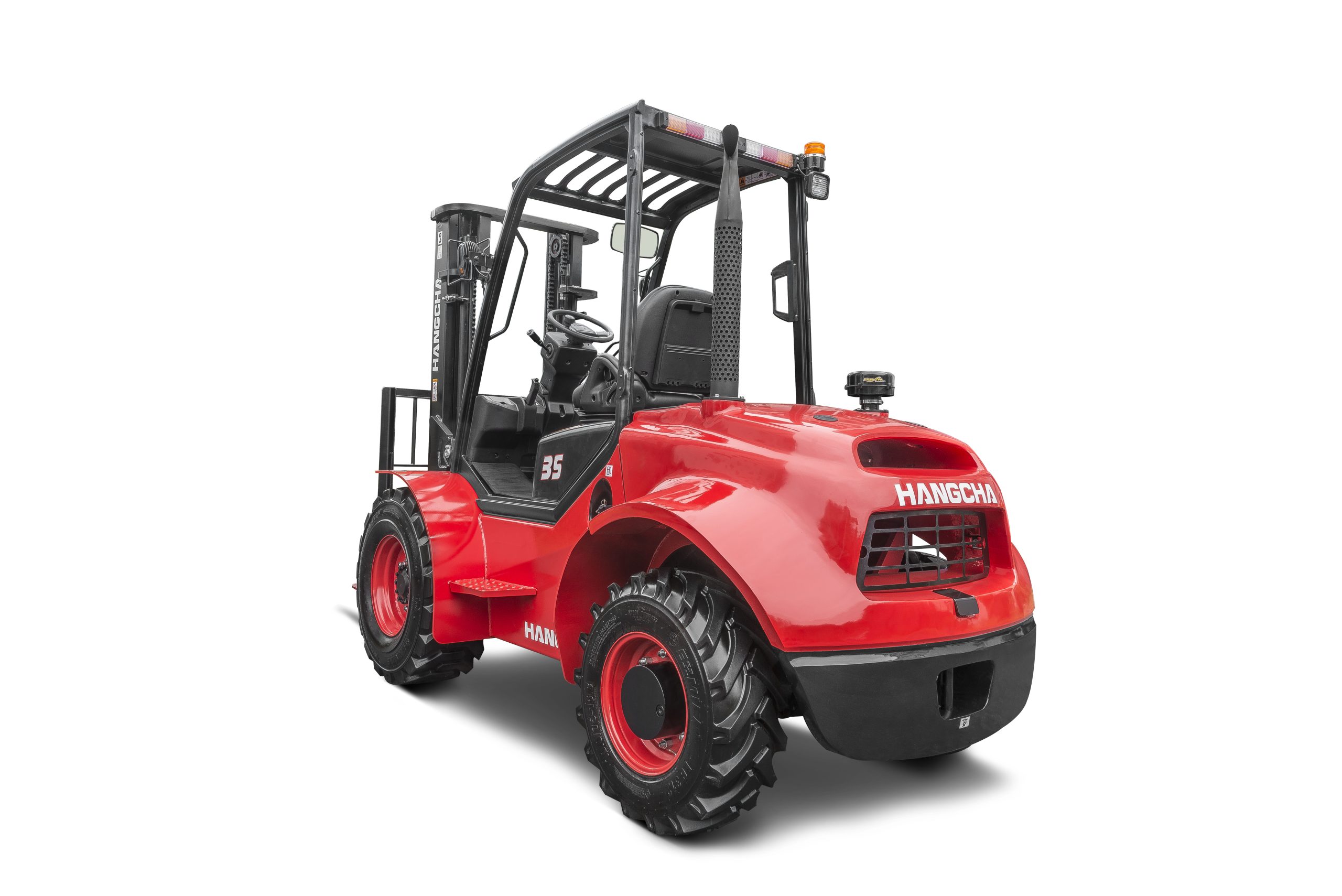

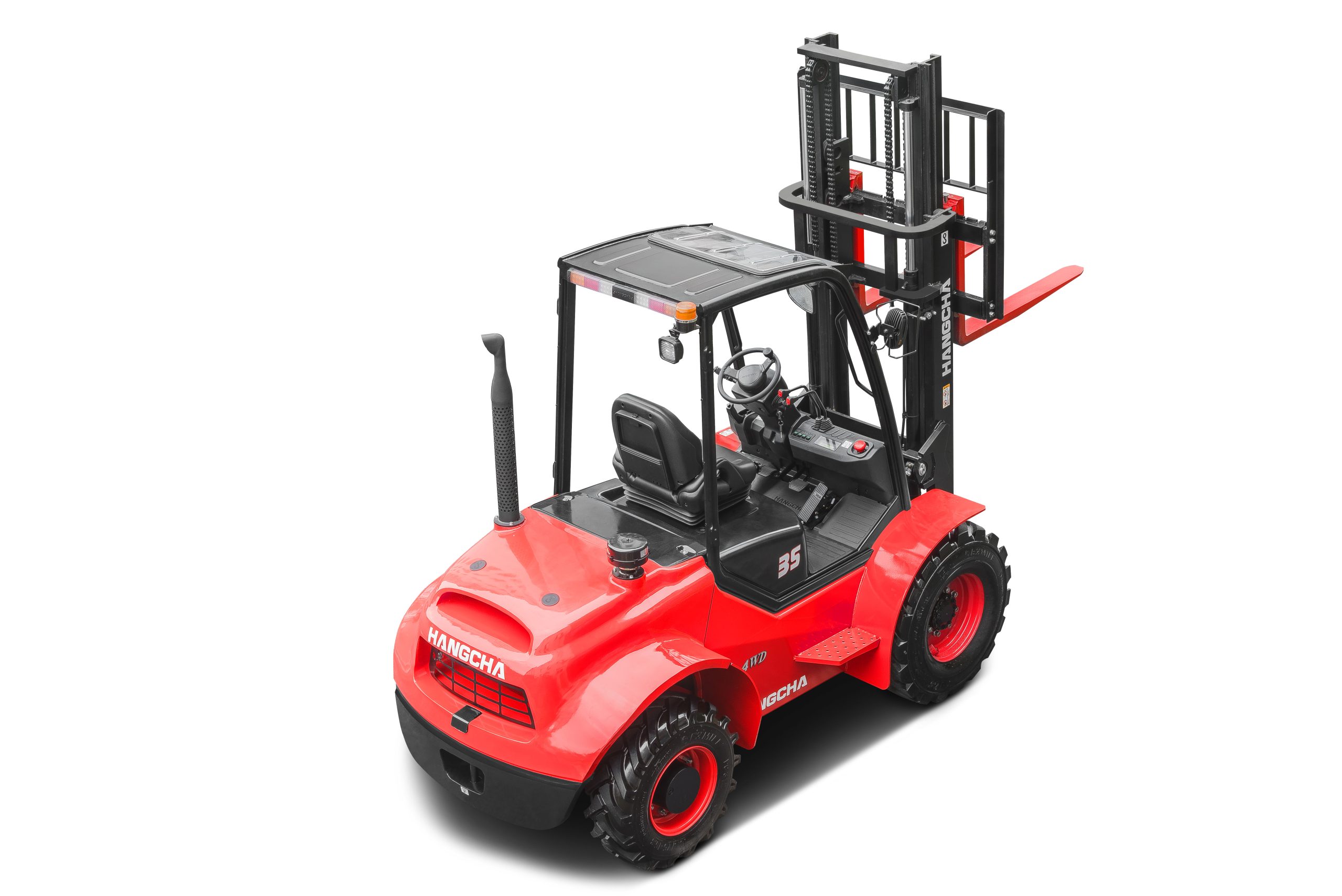

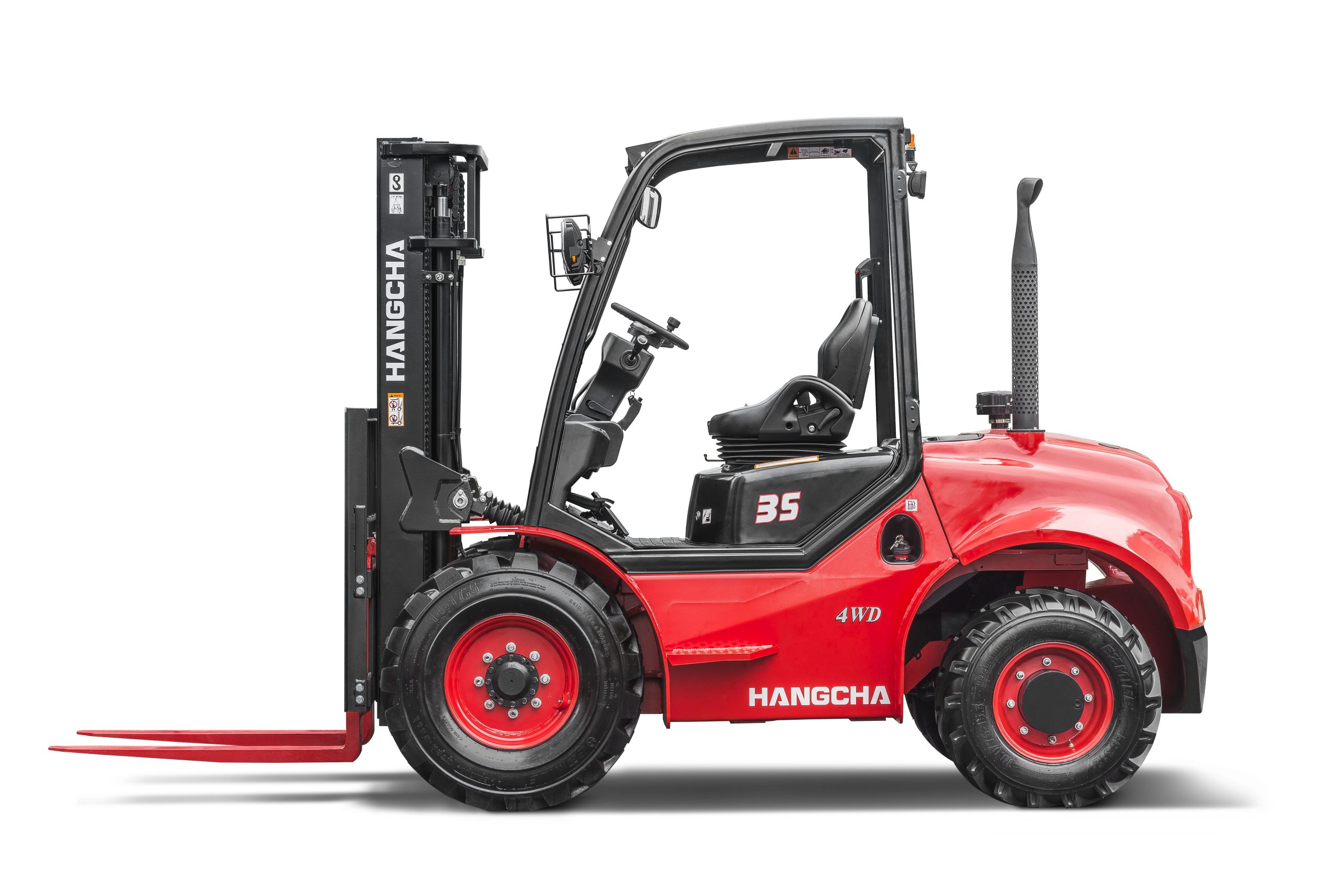

The Hangcha 3.5T Rough Terrain Diesel Forklift is a robust, four‑wheel‑drive counterbalance machine with a 3.5‑tonne rated load, 4.5 m mast and solid tyres, designed for rough terrain, high productivity and long‑term reliability.

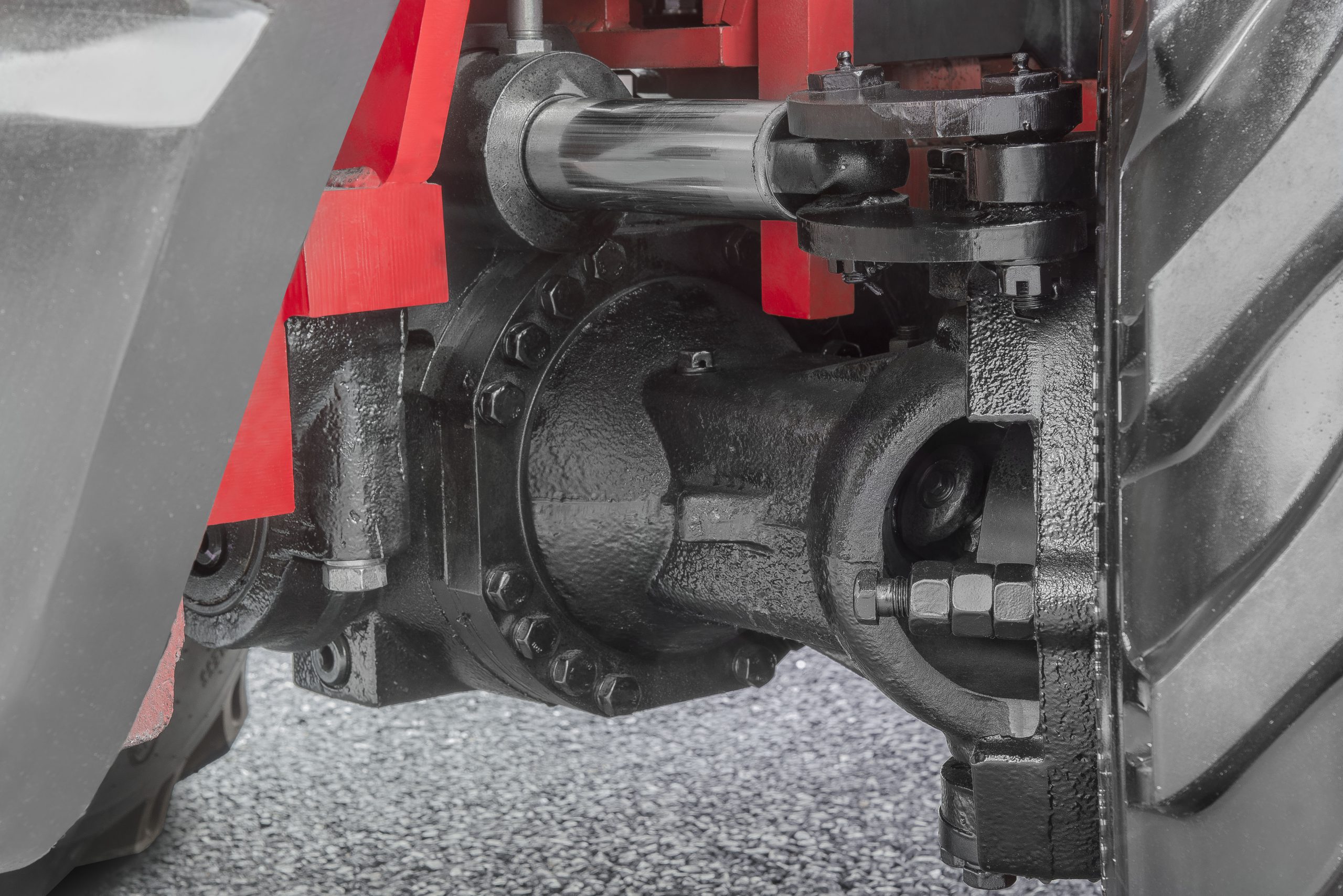

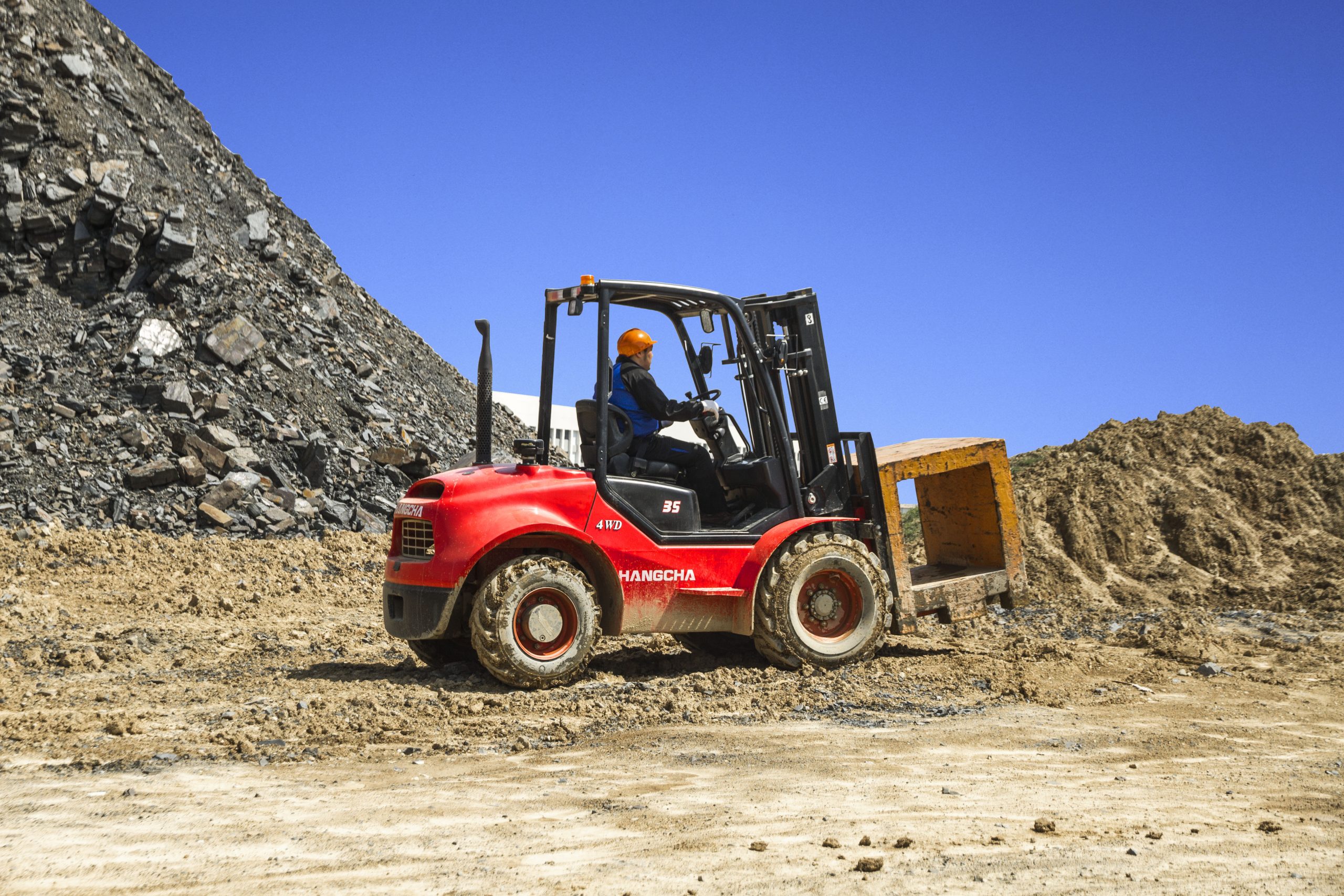

Built to tackle demanding job sites, the Hangcha 3.5T Rough Terrain Diesel Forklift combines exceptional off‑road capability with heavy‑duty lifting power. With full 4WD, a 2‑/4‑wheel drive switch, full‑floating hydraulic transmission and a Stage IIIA Yanmar diesel engine, this forklift truck handles steep grades, uneven ground and challenging environments with ease. Its ground clearance, reinforced drive axles, differential lock and wide‑base tyres ensure stability and performance in forestry yards, construction zones and material‑handling yards where standard forklifts can’t keep up.
Key Features

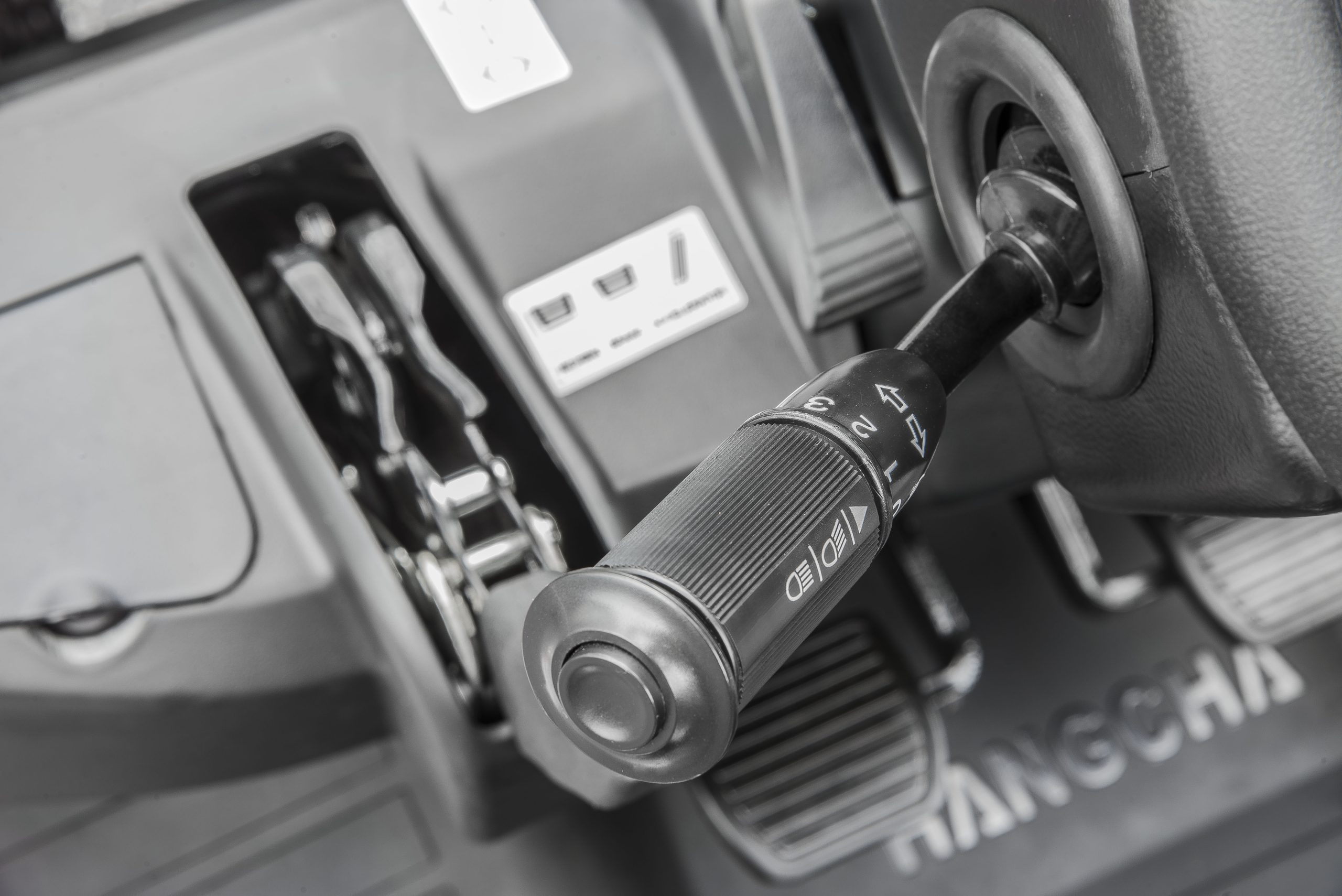

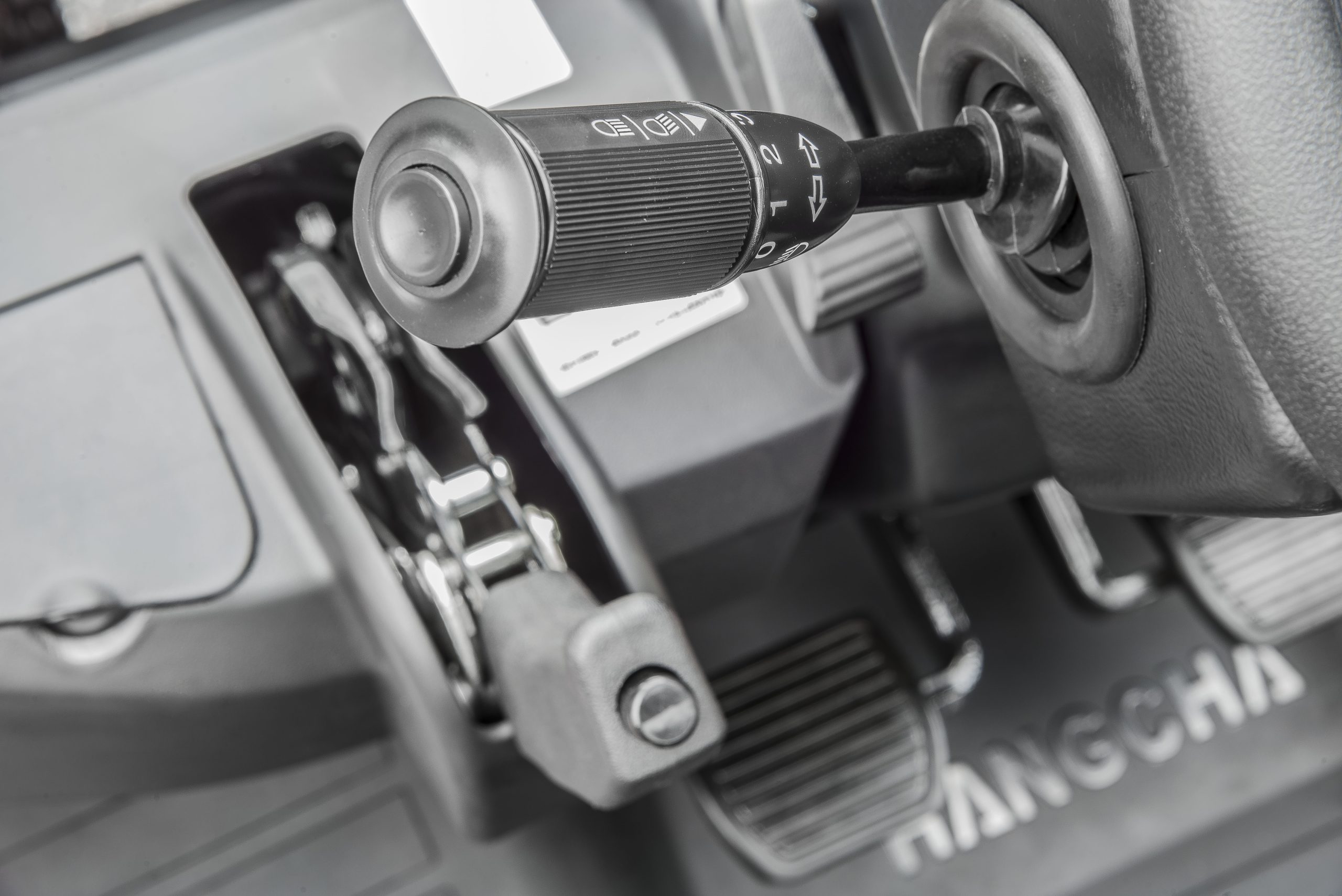

- Full four‑wheel drive with selectable 2WD/4WD mode for tailored traction and speed.
- 4.5 m mast combined with a 3.5‑tonne rated load capacity and 500 mm load centre.

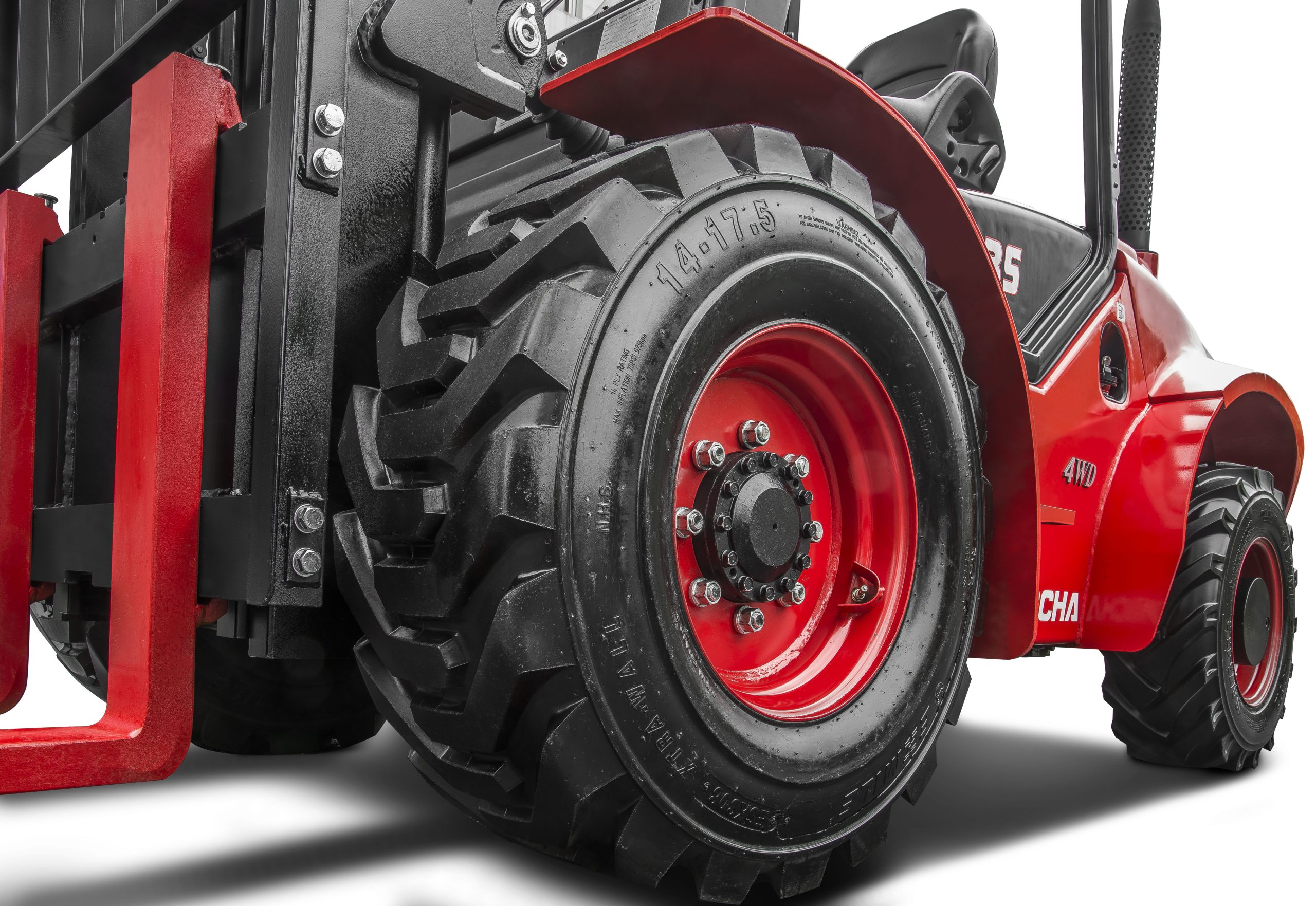

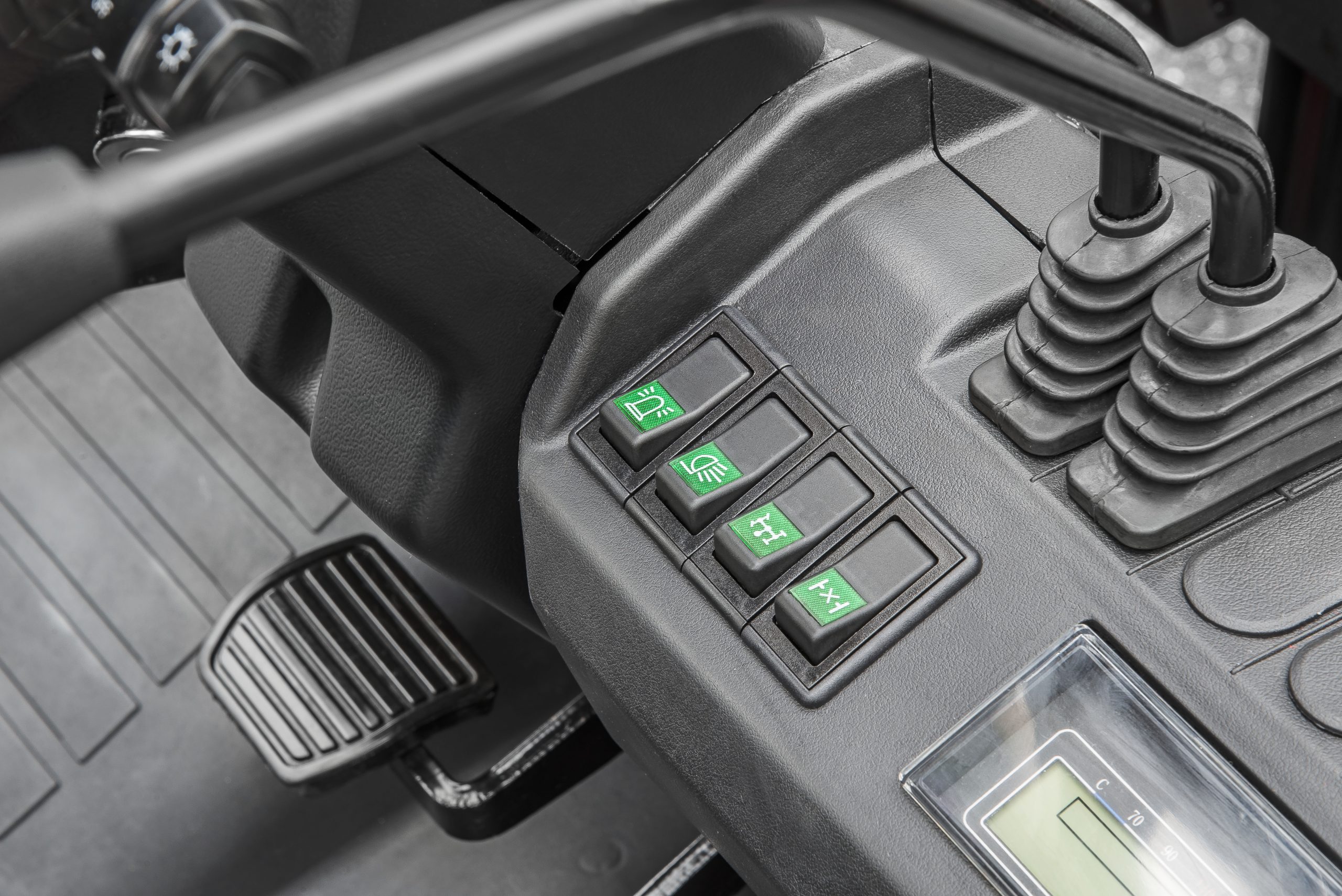

- Solid‑tyred wide‑base deep‑tread tyres plus differential electronic lock for extreme terrain traction.
- Big‑capacity aluminium radiator and heavy‑duty air filter for extended performance in harsh conditions.
- Full‑floating hydraulic transmission and suspension‑seat reduce operator fatigue and maintain control on uneven surfaces.
- Tool‑free maintenance access and return‑oil filter extend hydraulic system life and reduce downtime.
- Comprehensive safety and operator features including tilt‑cylinder cover, LED working light, reversing assist grip and return oil filter.
Yanmar 4TNE98 diesel engine, Stage IIIA / EPA Tier 3 compliant.
Specs
- Drive Type: Diesel
- Operator Type: Seated
- Rated Capacity: 3,500 kg
- Mast Height: 4.5 m
- Load Centre Distance: 500 mm
- Load Distance (Centre of Drive Axle to Fork): 600 mm
- Wheelbase: 1,880 mm
- Service Weight: 5,600 kg
- Engine: Yanmar 4TNE98 (Stage IIIA / EPA Tier 3)
- Engine Power: 42.1 kW @ 2,300 rpm
- Rated Torque: 206 Nm @ 1,700 rpm
- Cylinders / Displacement: 4 / 3,319 cm³
- Ground Clearance: Approx. 270 mm
1-year comprehensive manufacturer’s warranty
