Genie GS1932 Electric Scissor Lift + 7×3 2T Trailer Package
$15,895.00 Inc. GST
$14,450.00 Ex. GST

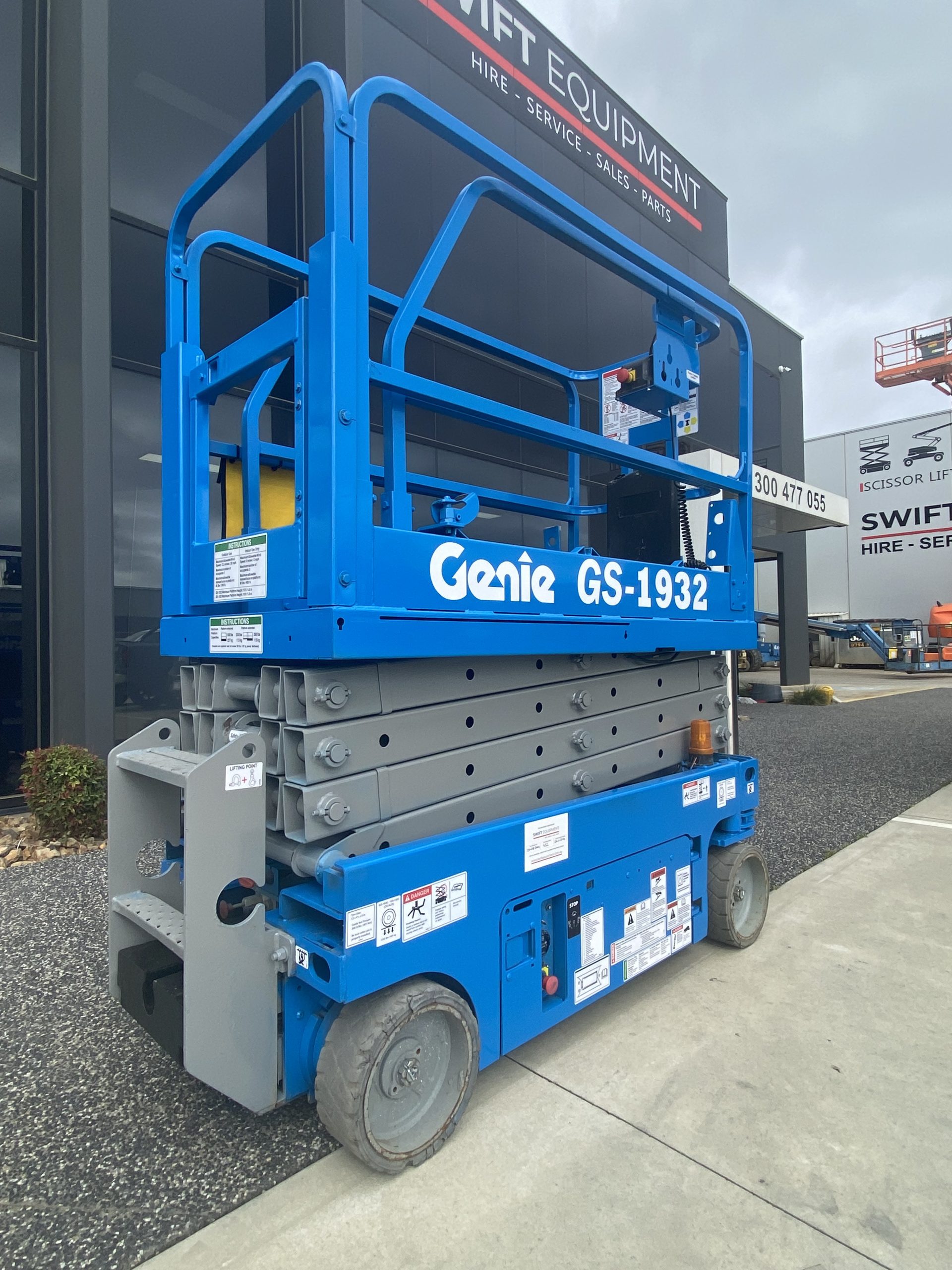

The Genie GS-1932 is a compact electric scissor lift made for working in tight areas and on firm, level surfaces. It has a maximum working height of around 7.85 m, a 227 kg lift capacity and a narrow 0.81 m machine width, so it can get through standard doorways and into restricted spaces. This package also includes a 7×3 2-ton trailer, making it easier to transport the lift between sites.
The GS-1932 is much smaller than the rough terrain machines in this range and is aimed at a different type of job. It is an electric slab scissor lift designed mainly for indoor work and outdoor use on firm, level surfaces.

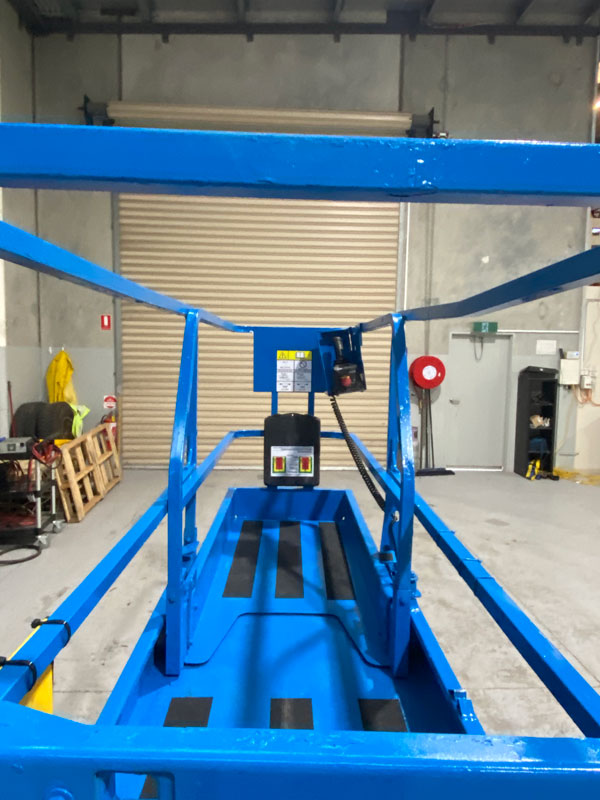

Its compact size makes it useful in warehouses, commercial buildings, shopping centres, factories and other places where there isn’t much room to manoeuvre. It uses front-wheel drive and has a zero inside turning radius, which helps when working around shelving, walls, machinery and other obstacles. There is also a roll-out platform extension, giving the operator a little more reach from the platform without needing to reposition the whole machine.

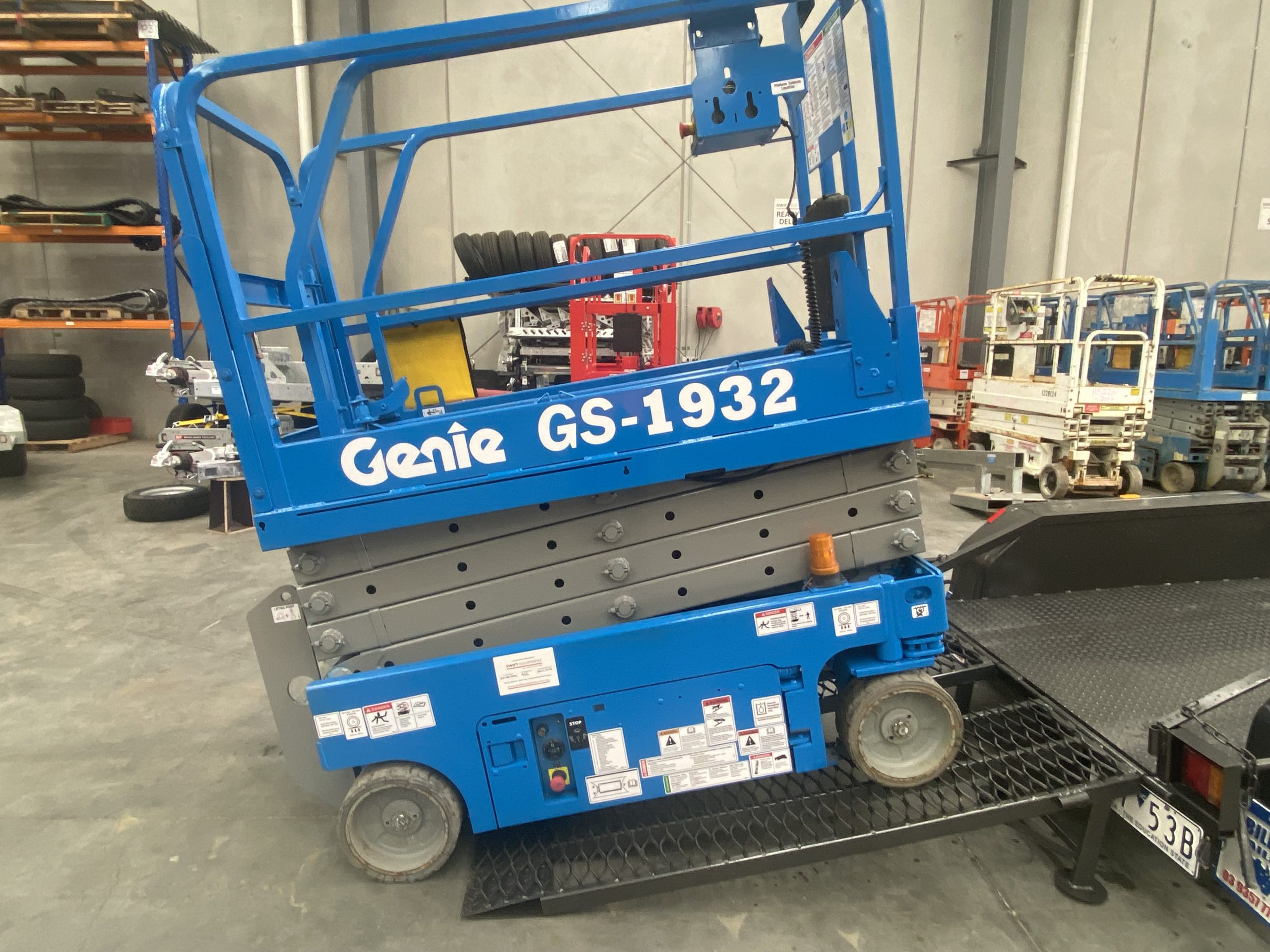

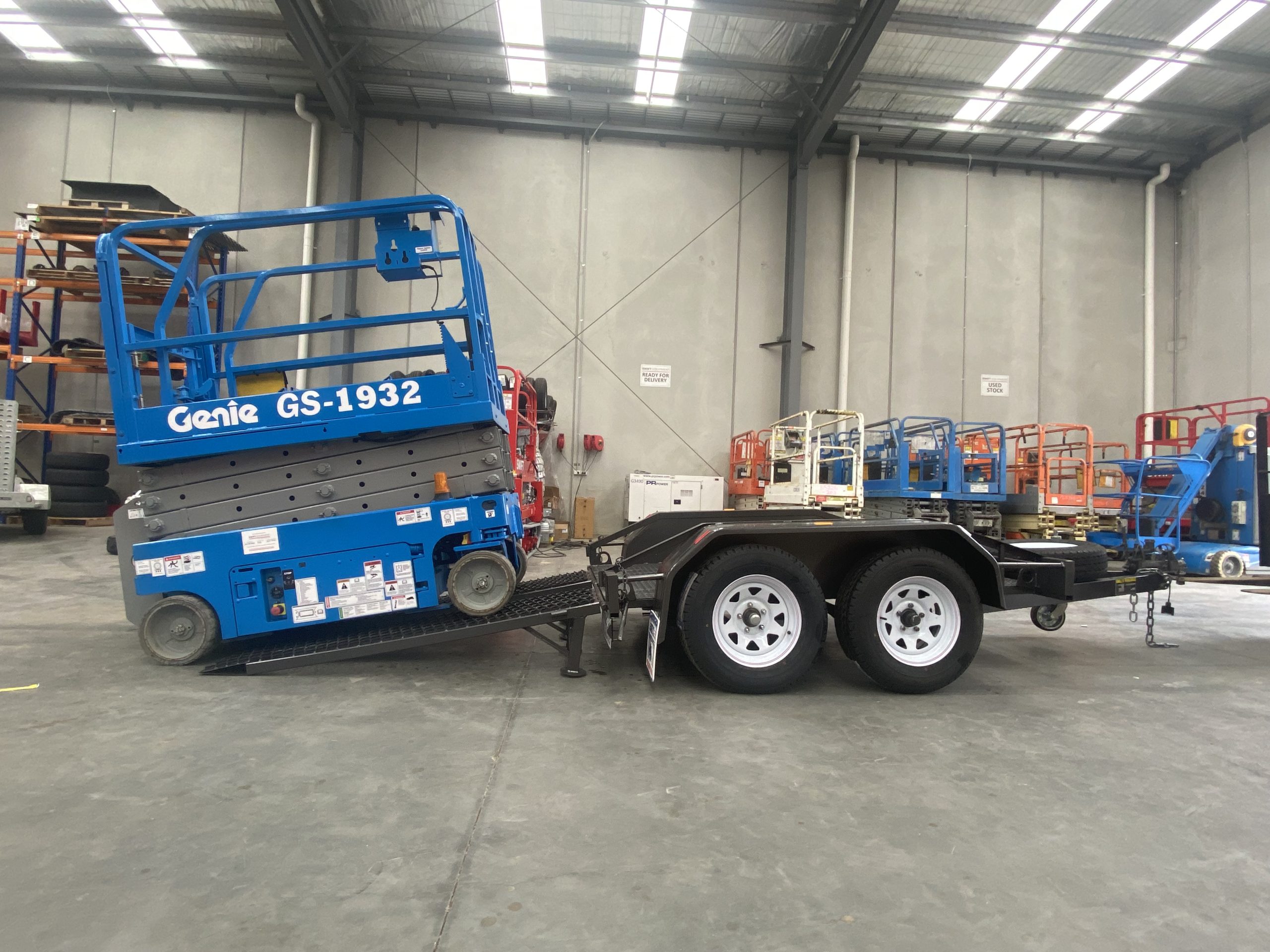

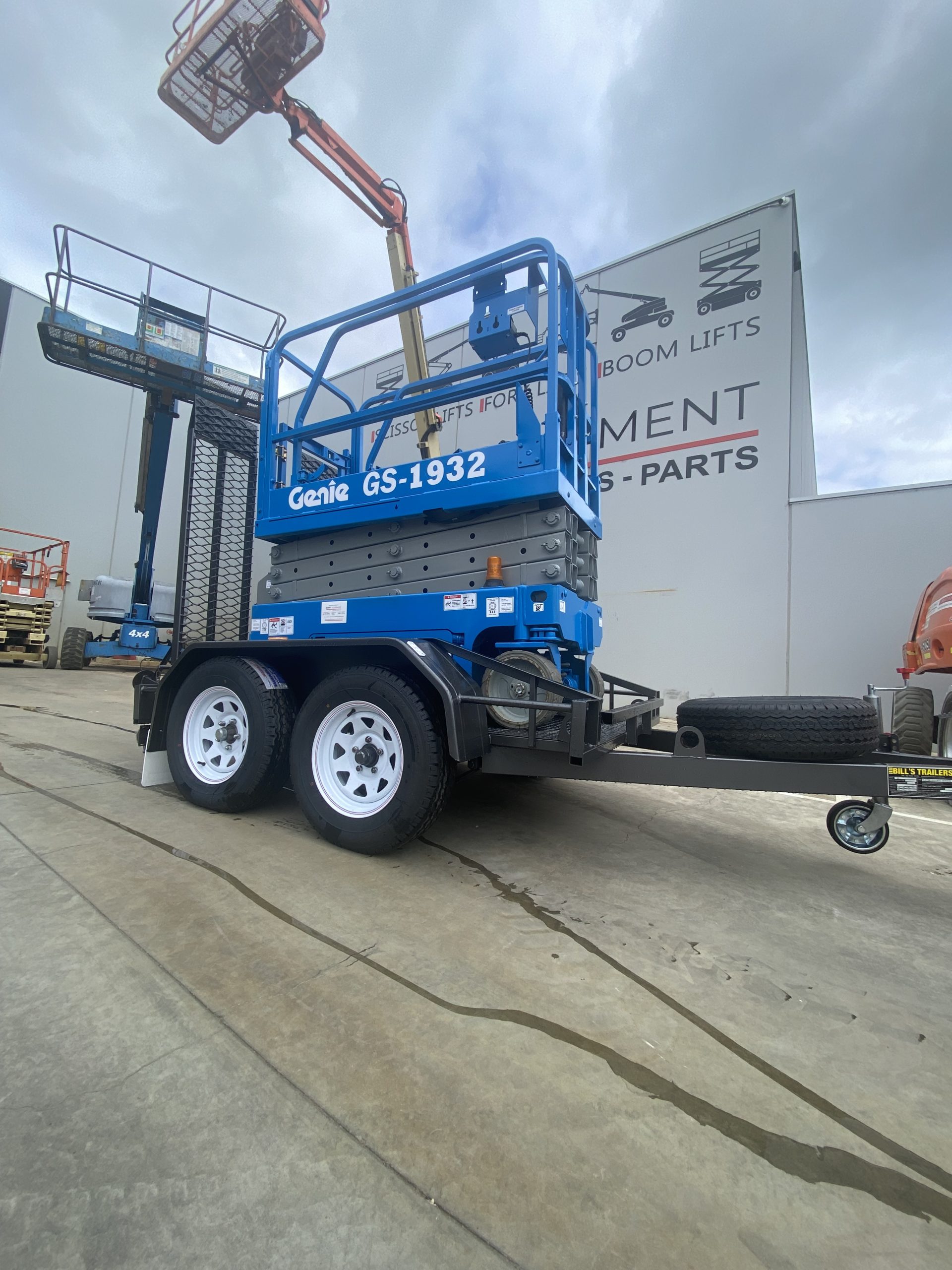

The included trailer makes the package more useful for contractors who need to move the lift between different jobs rather than keeping it permanently at one site. The GS-1932 itself is relatively compact and lightweight compared with larger access machines, while the electric drive keeps noise down during operation.
Key Features:
- Genie® AC E-Drive Configuration: Delivers efficient, smooth electric drive performance with reduced maintenance requirements for dependable operation.
- Front-Wheel Drive and Zero Inside Turning Radius: Provides excellent maneuverability in tight spaces, making the lift easier to position on crowded jobsites.
- Smart Link™ Dual-Zone Controls: Gives operators intuitive control from both the platform and ground, improving convenience and operational efficiency.

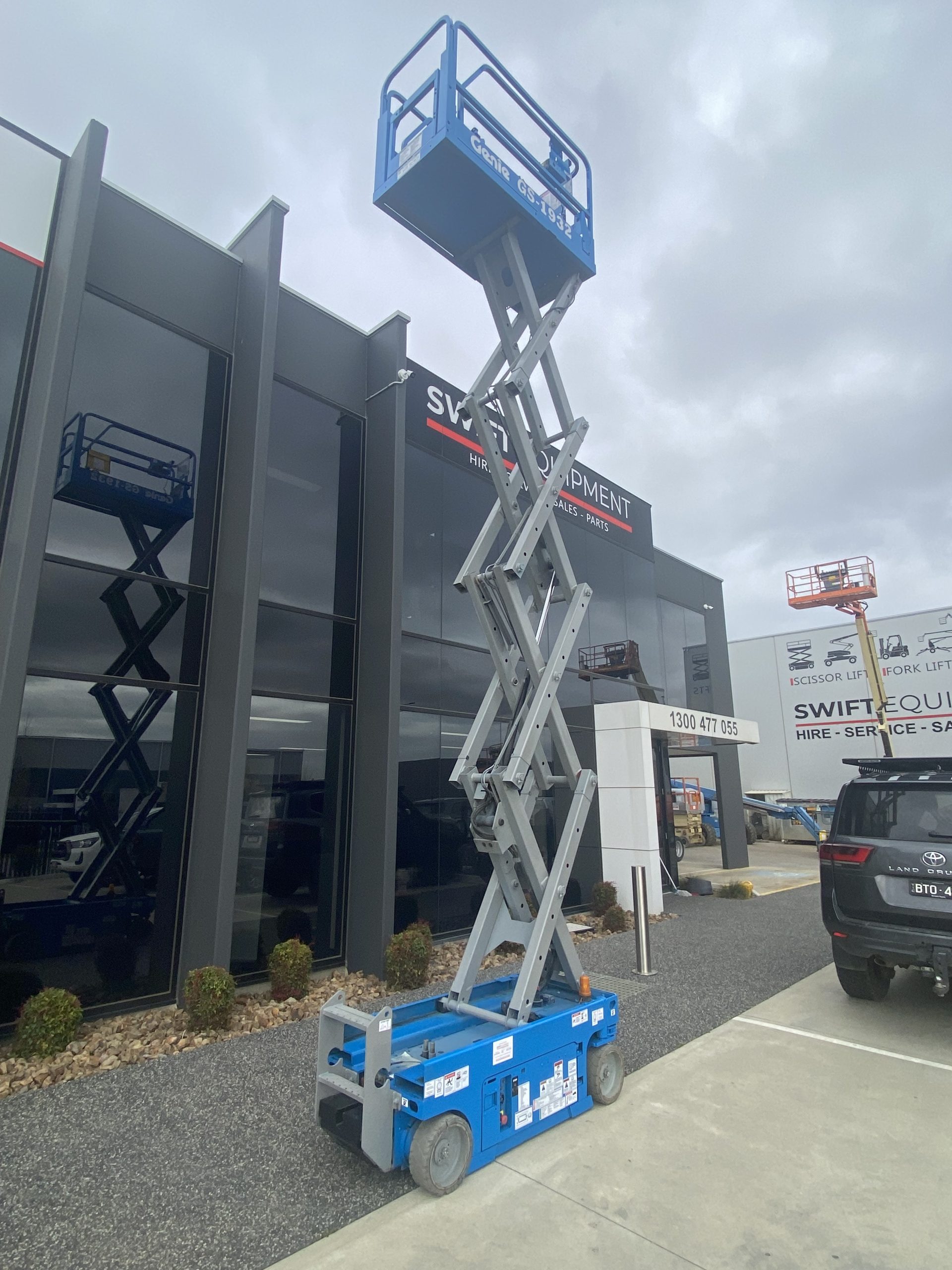

- Driveable at Full Height: Allows operators to reposition the lift while elevated, reducing setup time and improving productivity.
- Pothole Protection: Helps enhance stability and safety when the lift is being driven over uneven surfaces or obstacles.
- Solid Non-Marking Tires: Provide durability and reliable traction while minimizing the risk of leaving marks on finished floors.
- On-Board Diagnostic System with Battery Charge Indicator: Makes it easier to monitor machine status and battery level, helping operators identify issues and manage uptime.
Power – FLA: 24V DC (4 × 6V 210Ah)
Power – Lithium-Ion: 24V DC (1 × 24V 90Ah)
Hydraulic tank capacity (E-Drive): 1 gal or 3.8 L
Specs:
Scissor Lift
Working height max. – indoor: 7.85m
Working height max. – outdoor: 6.47m
Platform height max. – indoor: 5.85m
Platform height max. – outdoor: 4.47m
Platform height stowed: 1.04m
Platform length – outside: 1.66m
Platform length – outside, extended: 2.55m
Platform width – outside: 0.76m
Machine Height – stowed (folding rails): 2.16m
Length machine – stowed: 1.83m
Width: 0.82m
Wheelbase: 1.32m
Max. platform occupancy (in/out): 2/1
Lift capacity: 227kg
Max. platform drive height: 5.85m
Drive speed – stowed: 4.0 km/h
Drive speed – raised: 0.8 km/h
Gradeability – stowed: 25%
Turning radius – inside/outside: 0/1.55m

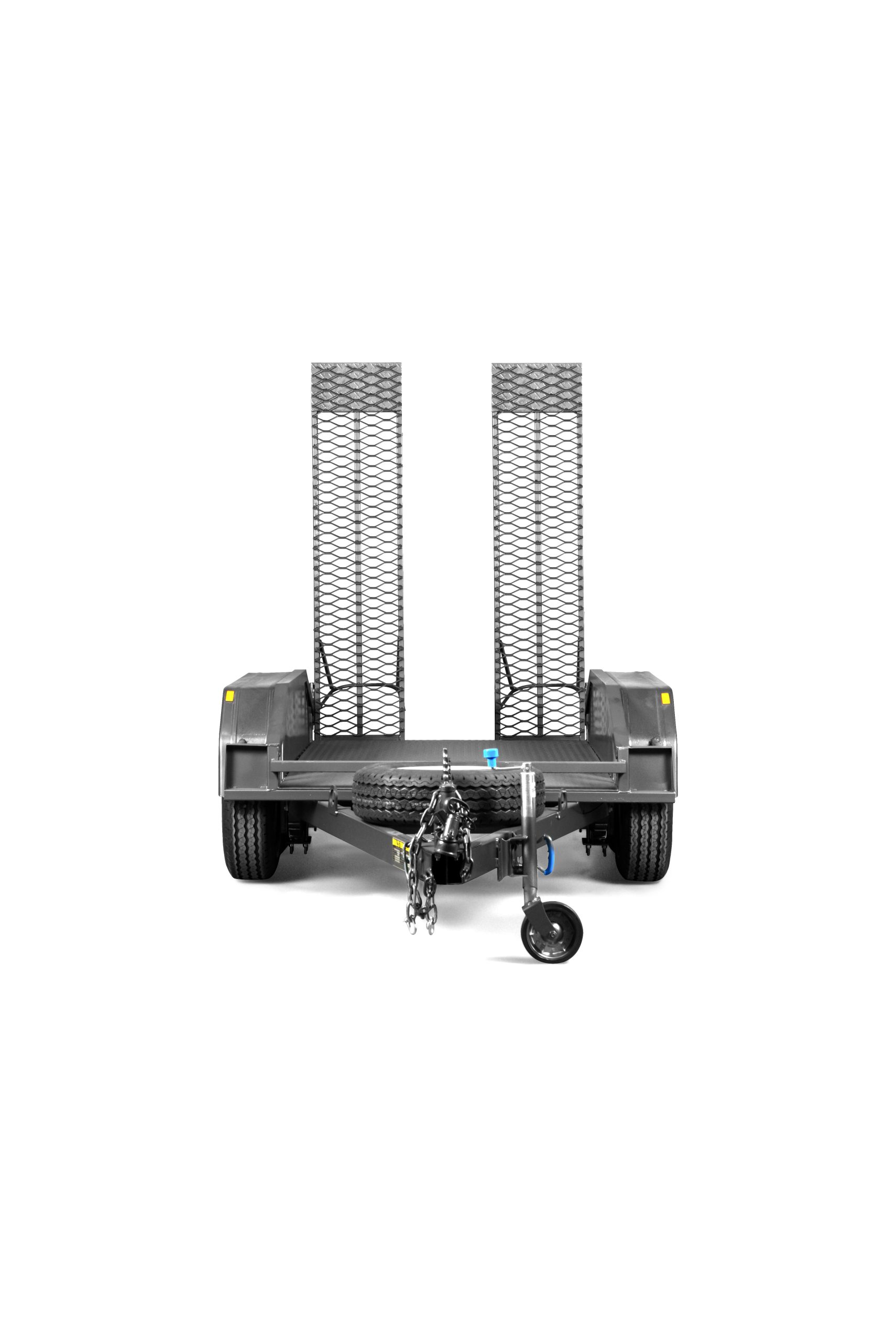

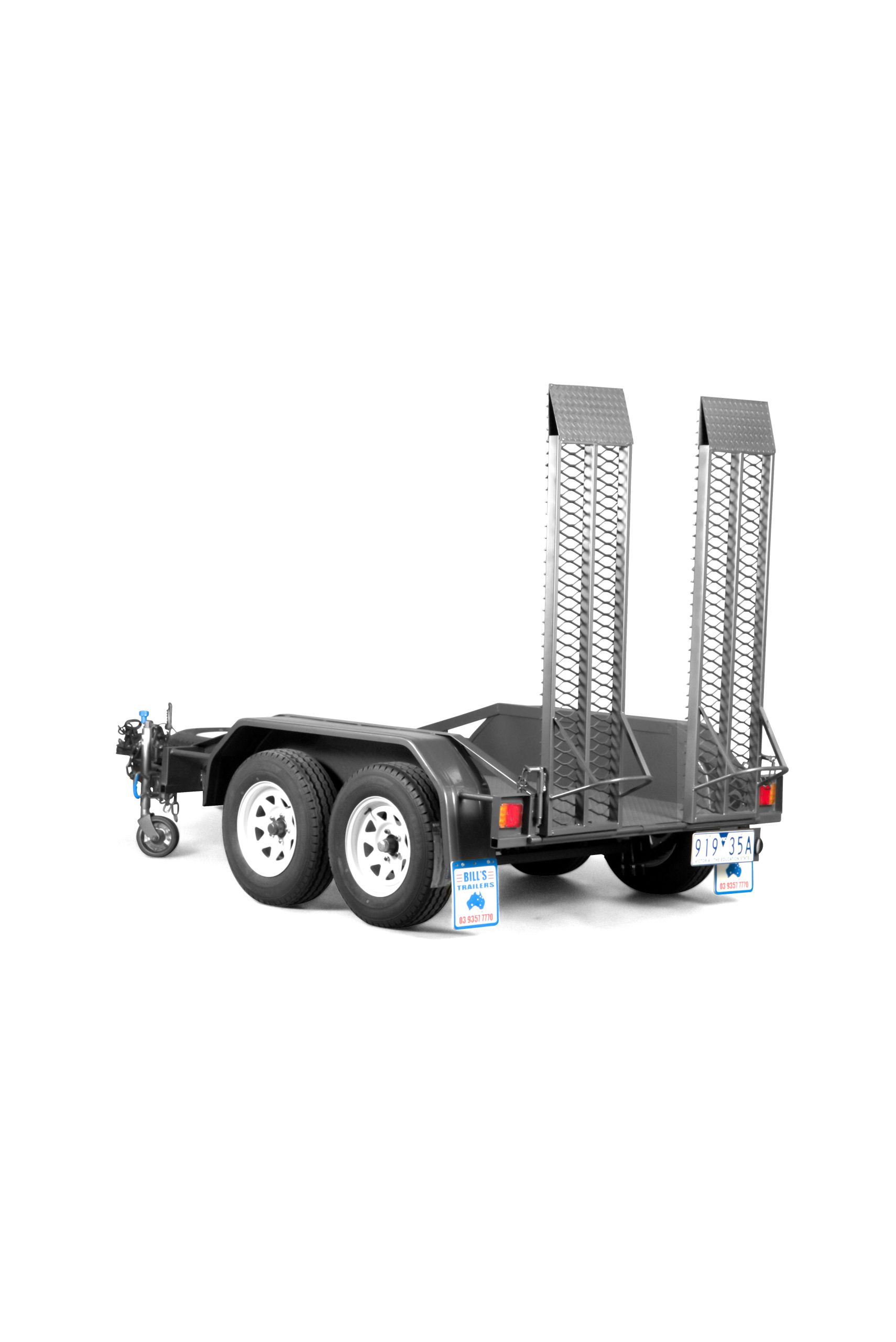

Trailer
Load Rating: 2.0 Tonne GVM
Brakes: Hydraulic
Suspension: Slipper
Guard Type: Checker Plate

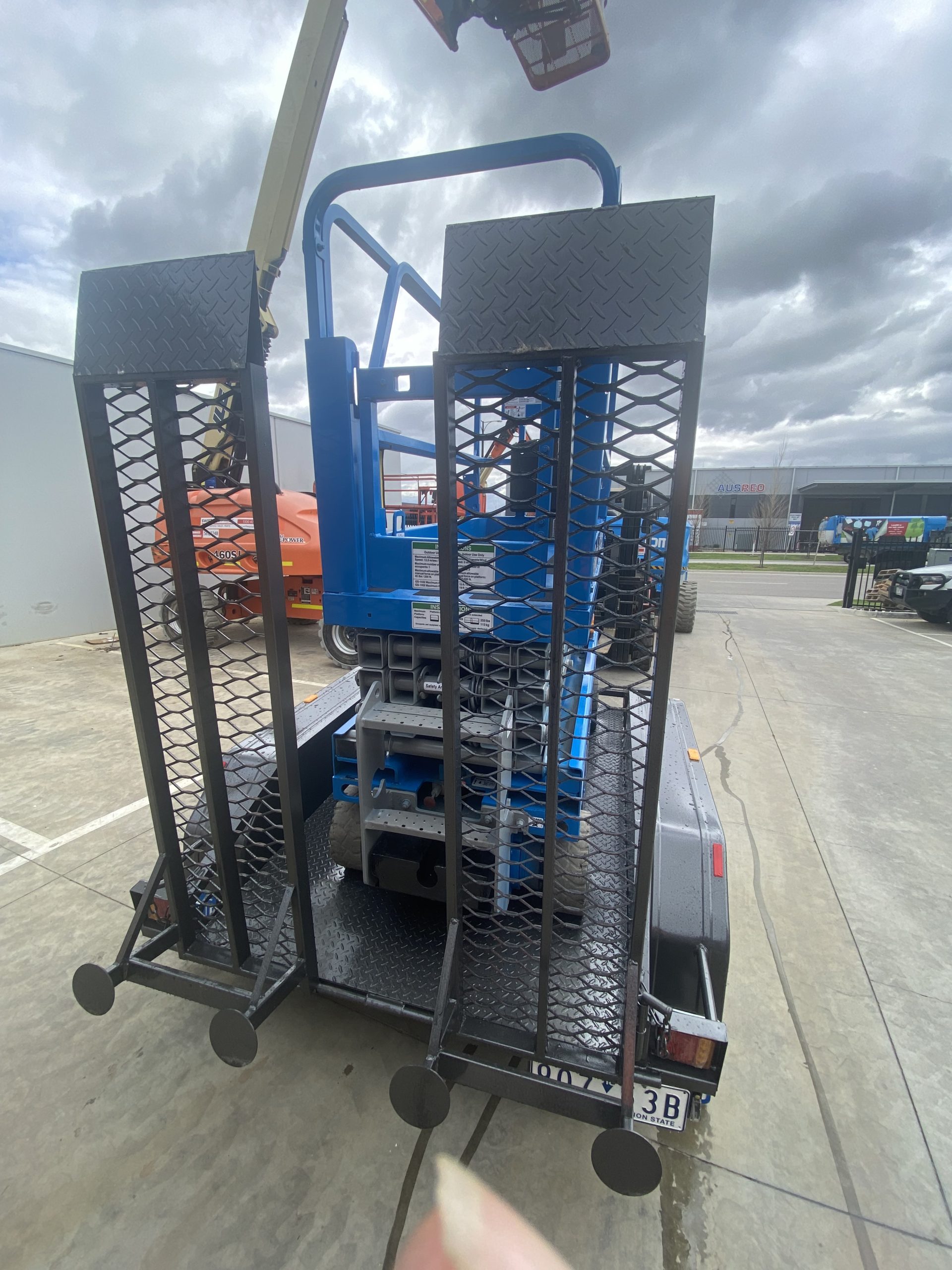

Ramp Type: 2 x Stand-Up
Tyres: 5 x Light Truck Tyres (includes spare)
Colour: Grey
Length: 3.6m
Height: 2.9m
Deck Width: 0.91m
Deck Length: 2.14m
Weight: 420kg
No warranty on used machines. Contact us for more details.
